1Hz-75MHz Frequency Counter DIY Kit – Accurate Measurement for Educational and Laboratory Use

Accurate Frequency Measurement with our 1Hz-75MHz Frequency Counter DIY Kit

This DIY kit is designed for precise frequency measurement, ideal for educational institutions and laboratory settings. It offers a frequency range of 1Hz-75MHz and operates within a voltage range of 7V-9V at 50mA, ensuring safe and reliable performance.

Key Features:

• Frequency range: 1Hz-75MHz (extendable to 78MHz) for versatile measurement applications
• Four or five-digit display resolution for accurate readings
• Automatic range switching with different gate times for optimal measurement
• Programmable frequency offset addition or subtraction for custom calibration
• Input impedance: 1.1M, parallel to about 10pF, ensuring minimal signal distortion
• Input sensitivity: Typically less than 20mV RMS from 1Hz-100KHz for reliable signal detection
• Optional power-saving mode to conserve energy

Specifications:

Package Contents:

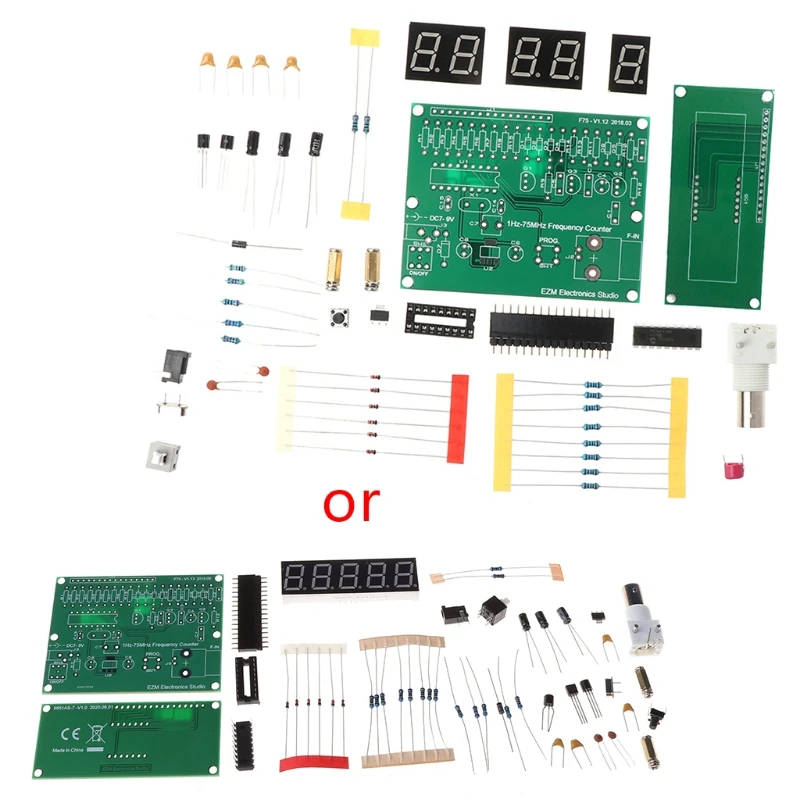

• 1 Set x Frequency Meter DIY Kit
• Resistors, Capacitors, Integrated Circuits, Transistors, Diodes, and various components for assembly
