3.5X-200X Clip-on desktop Stereo Trinocular Microscope Jewelry Soldering Coins Phone PCB 55MP 4K 2K Electronic Magnifying Glass

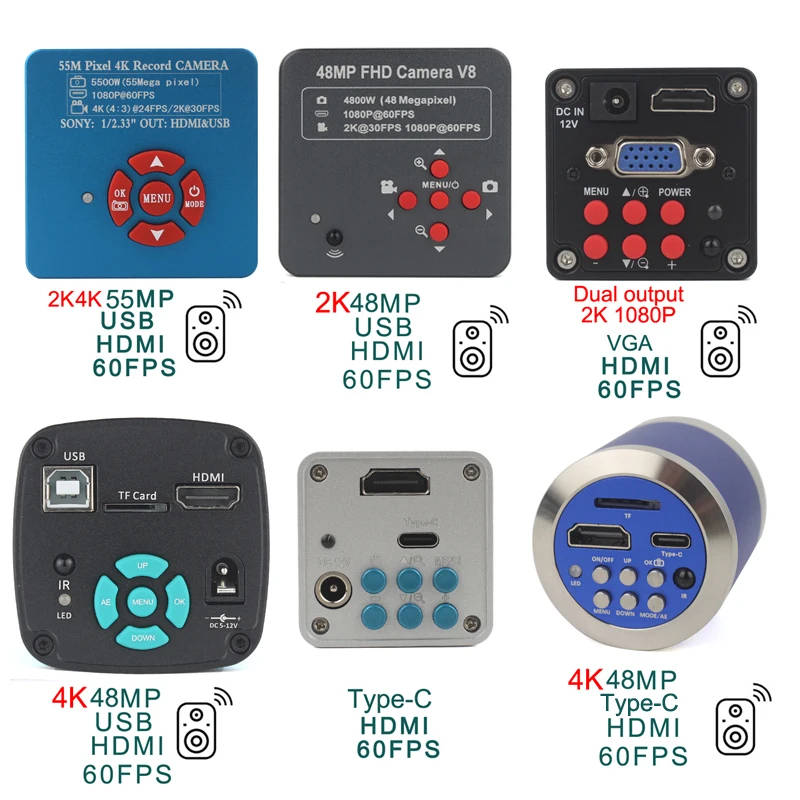

Note: The link has multiple SKU options, each representing a different model of camera.

Features:
Stereo microscopes are easy to operate and widely used.
1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

Microscope Head Feature:
Sharp stereo erect image over a wide field of view.  Standard working distance is 110mm, to create enough space for the uses
45inclined and 360rotatable binocular head .The interpupillary distance is between 54-75mm. Observation head 45 ° inclined, diopter adjustment in two tubes, easy to operate and feel no fatigue when long time use.
Wide field and high eyepiont eyepiece WF10X/22mm  10X large field of view eyepiece, FOV 22mm,plan and high eye-point design, more suitable for search and observation
Ergonomics design, shift hand wheel level (axial) bilateral settings, high repeatability precision.
Best eye-point height, to ensure that different vision of the user can get a clear image

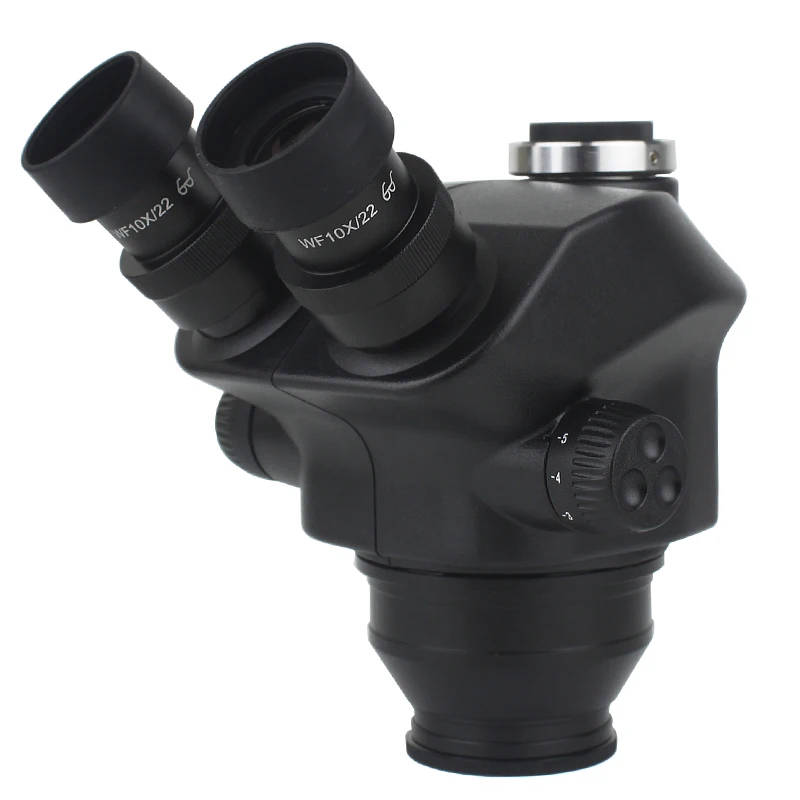

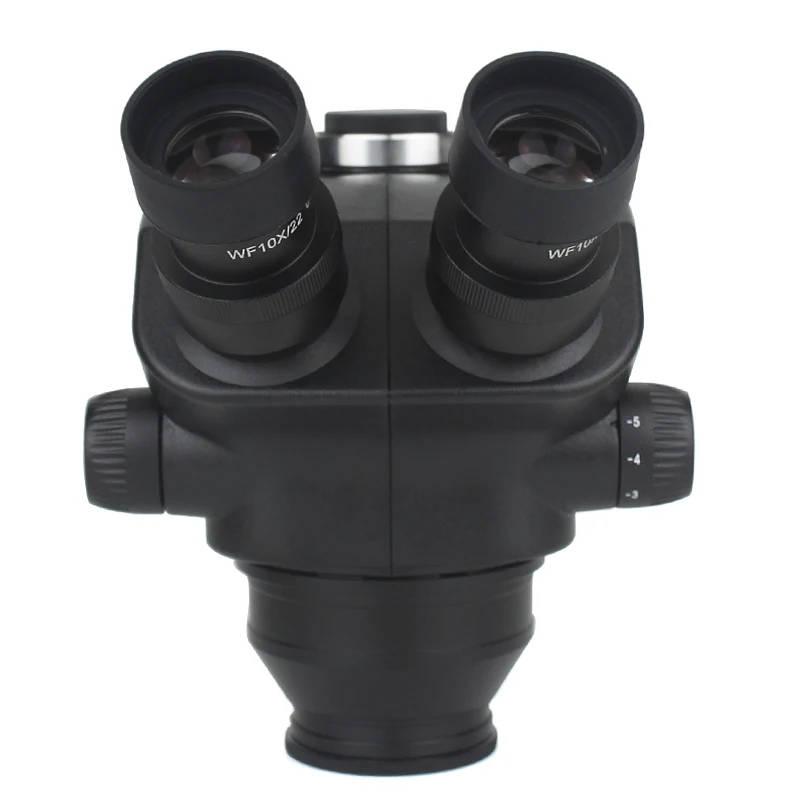

Head: 360 degree rotatable 45 degree inclined binocular

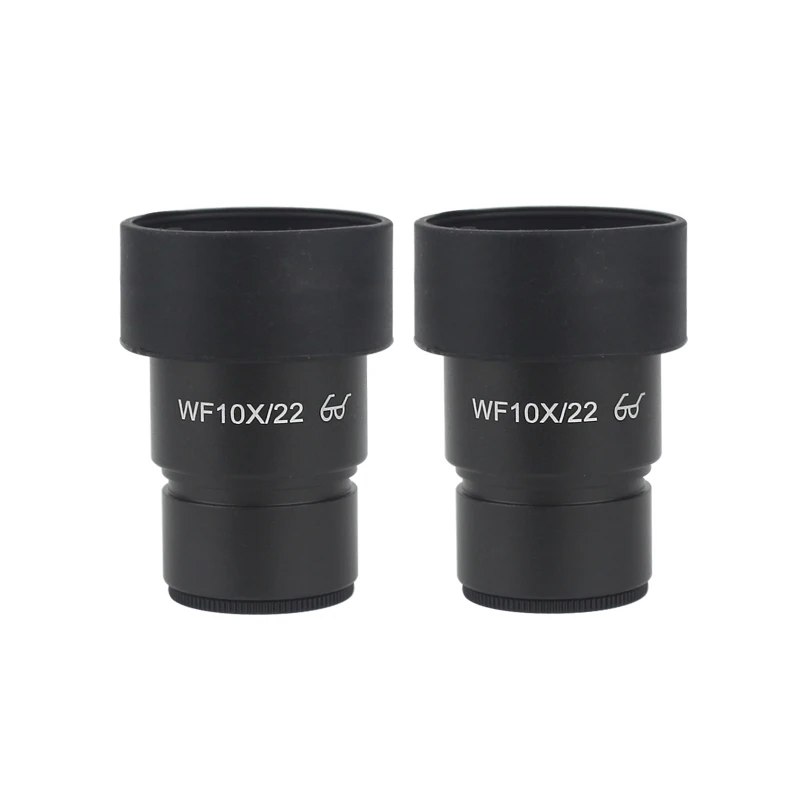

Eyepieces: WF10X/22MM
Zoom Rate position:0.7-5x

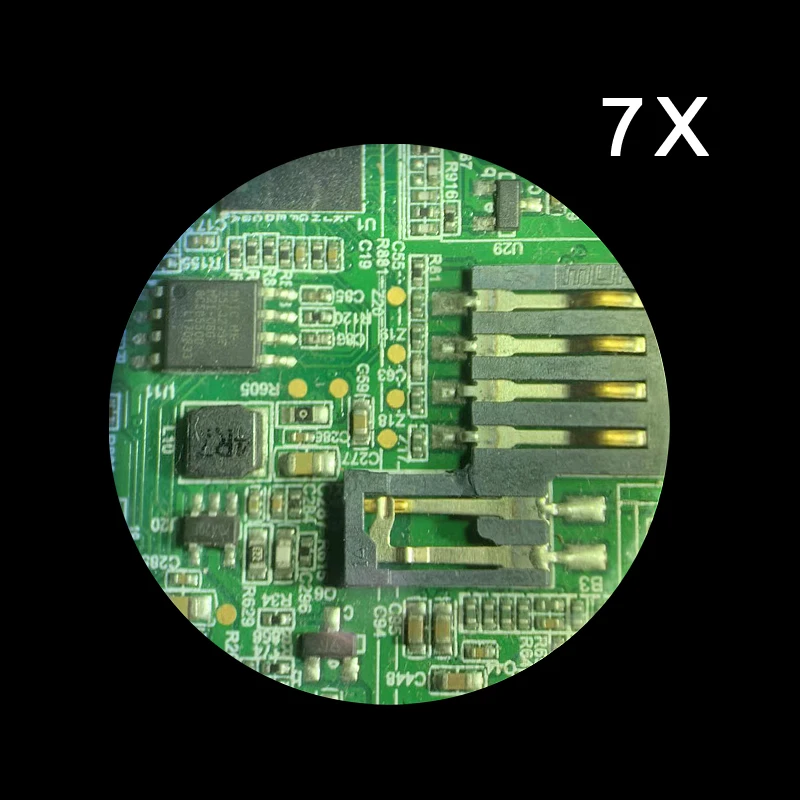

Magnification:7x-50x
Working Distance:110mm
Installation diameter: 76mm
Adjustable eyepiece:Standard WF10X22,High angle wide angle eyepiece,provide convenience for observers wearing glasses

Note: The link has multiple SKU options, each representing a different model of camera.

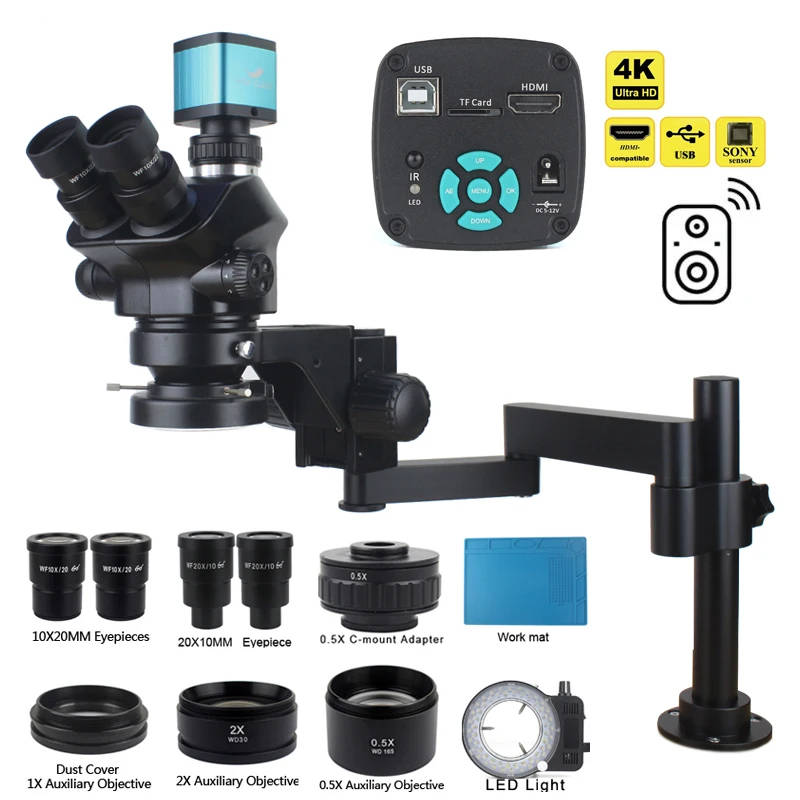

Package Including:

Package Including:

1 x Trinocular Stereo Zoom Head

1 x Pair of Super Widefield 10X22MM Eyepieces

1 x Pair of Super Widefield 20X10MM Eyepieces

1 x Pair of Eye-Guards

1 x Dust Cover

1 x 56-LED Ring Light with Adapter

1 x High Temperature Insulation Pad

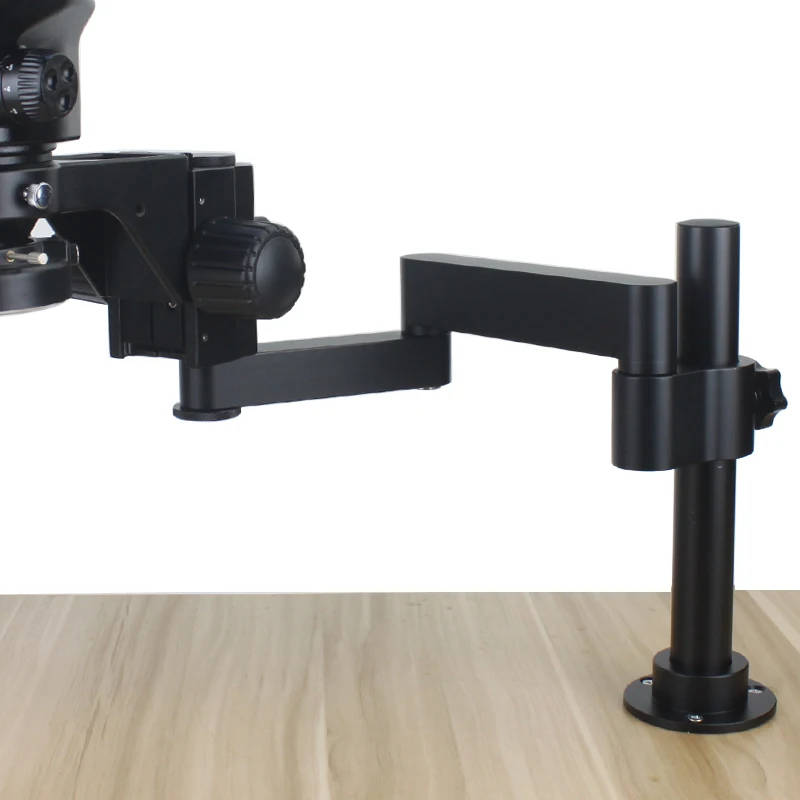

1 x Articulating Arm Set

1 x 32mm Columns

1 x Desktop clip

1 x 76mm Focusing

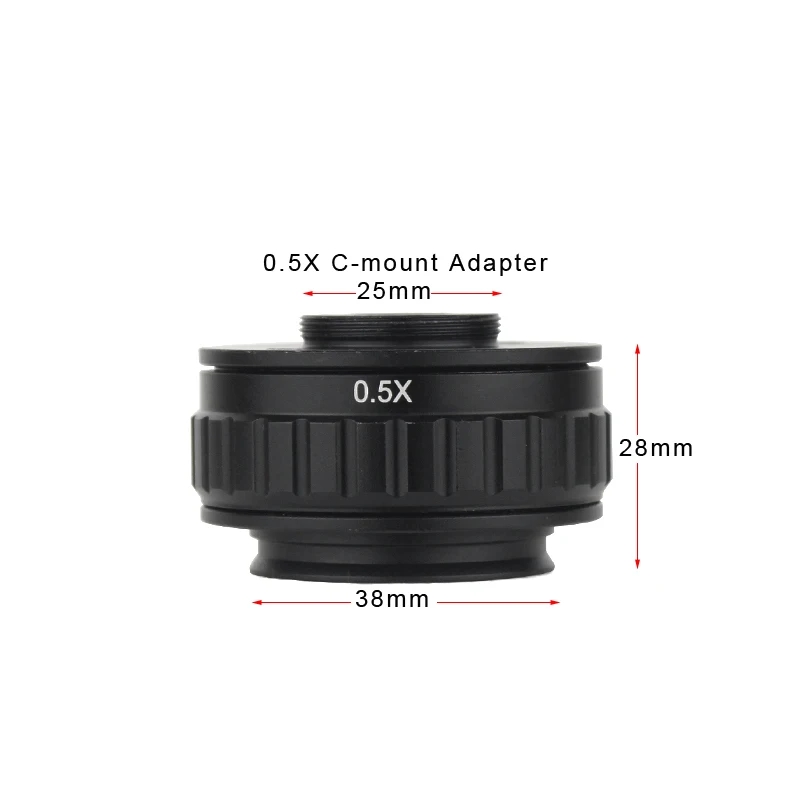

1 x 0.5X C-mount Adapter

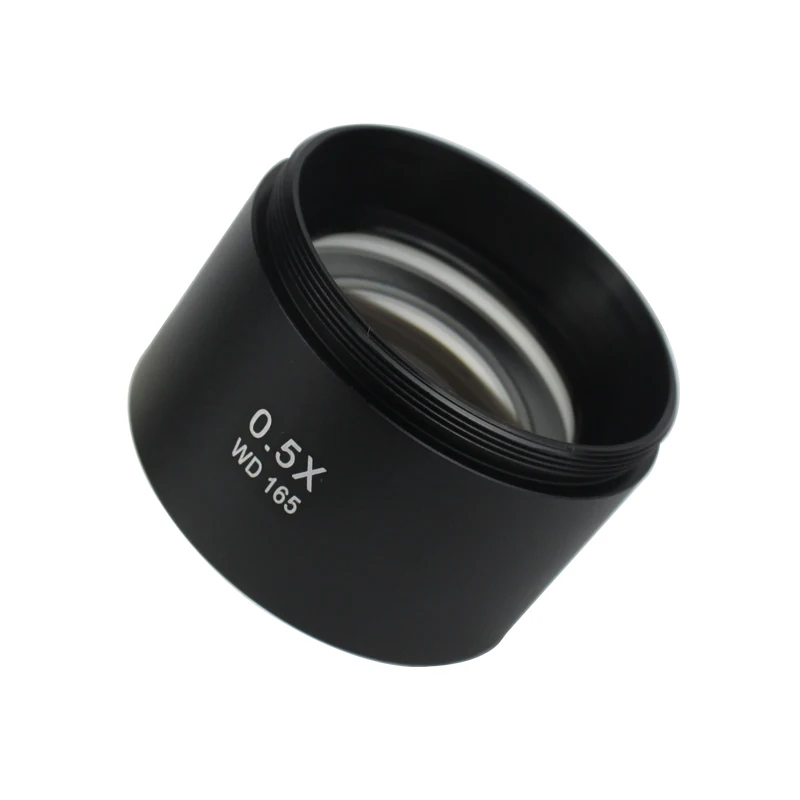

1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 160 mm)

1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)

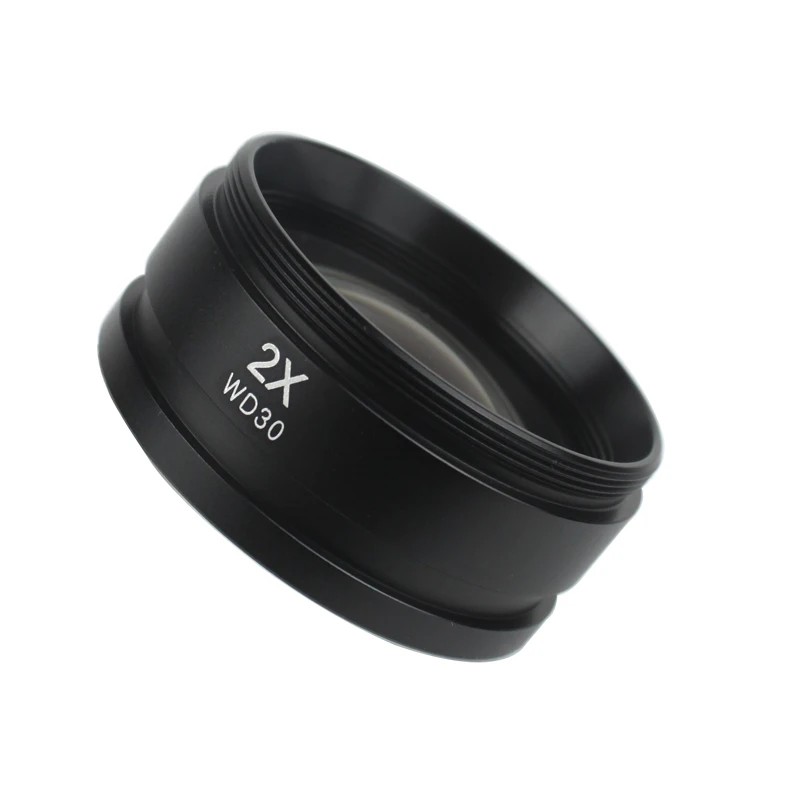

1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)

(Optional)

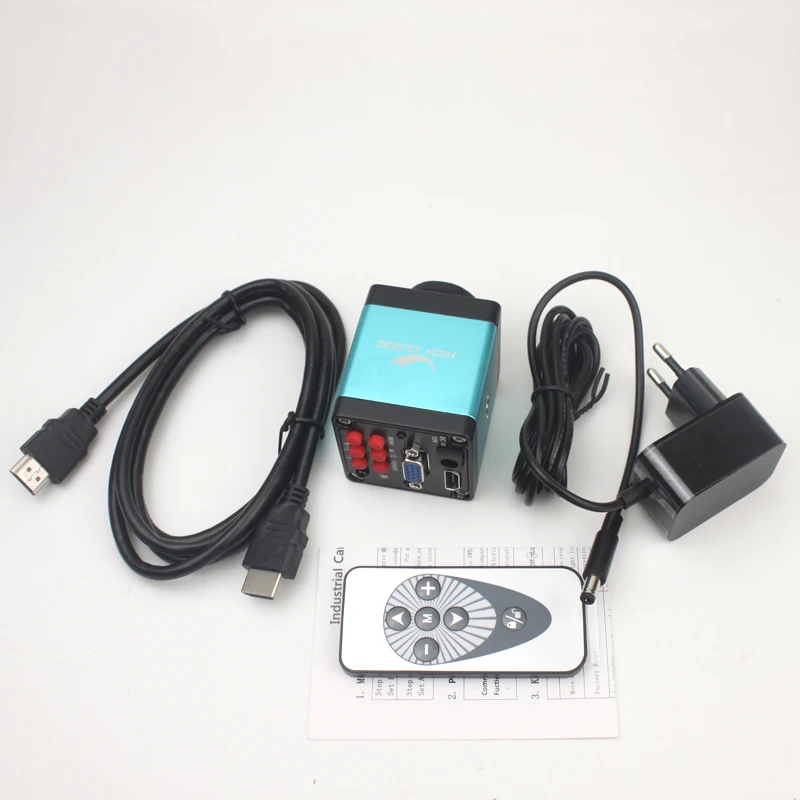

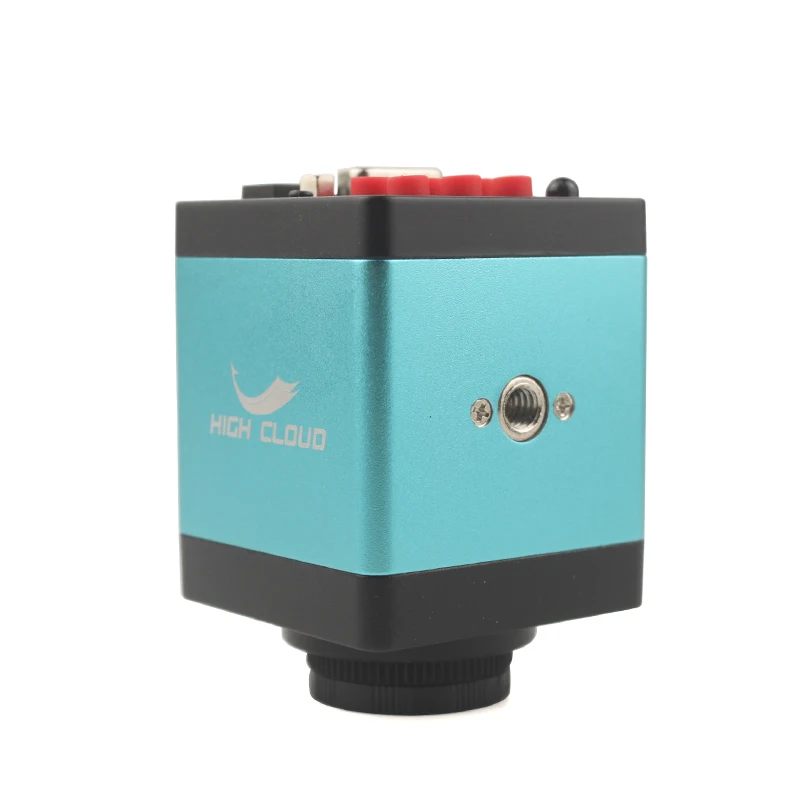

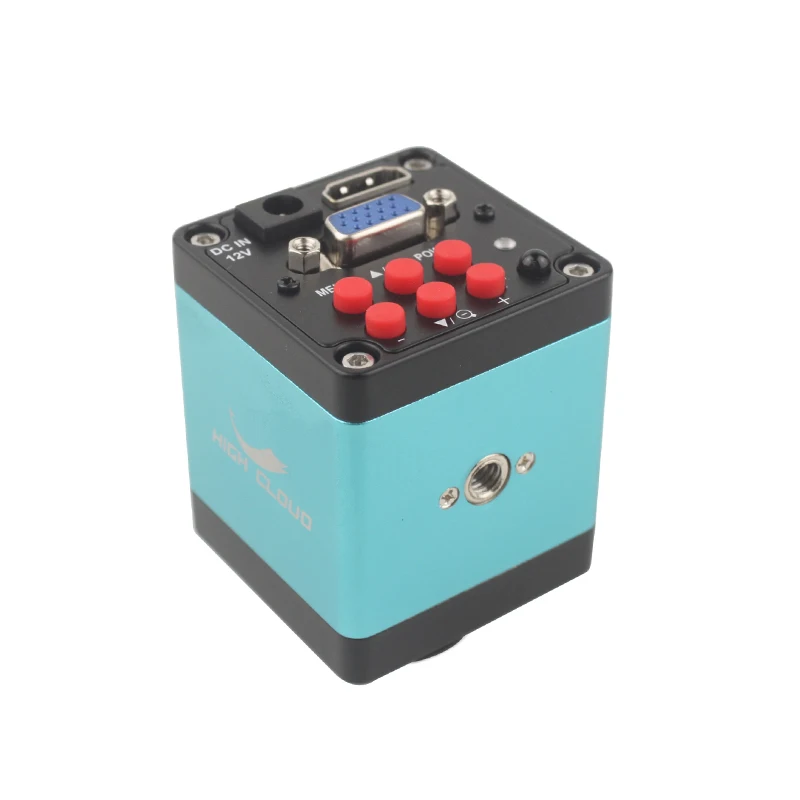

1 x Microscope Camera

1 x 12V Power Adapter

1 x HDMI Cable

1 x IR Remote Control

48MP 2K 4K TF HDMI USB Features:

Model: Camera with HDMI USB2.0 two output

Image sensor: 48 megapixel Panasonic sensor

Frame rate: 60F/S @ HDMI output

Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)

Housing: All metal

Support:C-Mount lens

Digital magnification: 5 times digital zoom

White balance: Auto/manual

Cross cursor: Support multi-color, size adjustable

TF card interface: Max 32G

video format:MOV

HDMI interface: HDMI/USB output

Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456

Language:Chinese/English

Mirroring: Support

Frequency:50Hz/60Hz

Monitor:16:9/16:10/4:3

Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size

Power supply:5-12V 1A

48MP 2K TF HDMI USB

Optical format:1/2.3 inch

pixel size:1.335μm x1.335μm

Interface:HDMI(Type A).USB(Type B).TF Card

Image resolution:48MegaPixel

Video record resolution:2K@30FPS 1080p@60FPS

HDMI resoltion:1920*1080p 60FPS

Can output with USB at the same time

HDMI scale:Support 4:3,16:9,16:10 screen

USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS640*480@30FPS

Can output with HDMI at the same time

TF card:MAX 64GB

AWB:WB color correction/Auto/Manual

R.G.B value setting independent

Exposure:Auto/Manual.AE value can set

Cross lines:8lines.Can set color& width& position

Scale mark lines:2lines.

Dotted lines:2lines.Can set color& width& position

Sharpness Contrast Color gain:Support

Mono Negative:Support

Mirror:Horizontal vertical mirror

Language:English/simplified Chinese

Digital Zoom:Support

IR remoter:Support

Voltage in:DC 12V 55-21mm size

Power consumption:MAX 0.15W 12V,0.12A

Lens interface:C/CS

Net weight:180g

Gross weight:400g

Camera size:74*74*35mm

Packaging size:160*100*80mm

4K 48MP HDMI Type-c Function:

Adopt Imported Sony sensor;

Adopt 1/2.8 inch image sensor;

HDMI 1080P 60 frame image output;

TYPE-C driver-free output 1080P 30/Fps image output;

HDMI port 4K, 1080P video recording, 48MP Pictures were taken;

48MP photos, JPG format, photo size 8000×6000;

One-key freeze/thaw function;

Electronic zoom function;

Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;

Support manual/automatic white balance/one-key white B, R, G, adjustable;

Provide 16 line functions, line color, thickness, position adjustable;

Provide center crosshair display on/off;

Support TF card storage, up to 64GB;

Support remote control operation, take pictures without shaking and the image will be clearer;

Support Chinese and English menu languages;

Support shutdown setting parameter saving;

Aluminum alloy casing processed by CNC precision milling technology;

Sensor: 1/2.8 Sony sensor

Pixel size: 2.9μm × 2.9μm

HDMI output: 1920*1080 60 frames

Type-C HDMI Feature:

Sensor type:1/2.8" Sony Color CMOS

Effective pixels:1920H*1080V

Data bits: 16bit

Pixel size:2.9μm*2.9μm

Frame rate:60 frames per second (HDMI or VGA), 30 frames per second (UVC)

Definition:The maximum definition is above 1000TV lines

Scanning method:Progressive

Shutter Type:Electronic Shutter

Dynamic range:>90dB

Signal-to-noise ratio:55dB

Sensitivity:2.0 V/lux-sec (550nm)

Exposure mode:manual/automatic

White balance:automatic/manual

Lens interface:C/CS

Video interface:GA, HDMI and Type-C UVC synchronous output

Output resolution: 1920*1080(16:9) / 1920*1080(16:10) / 1280*720 / 1024*768 (4:3)

Power supply:Type-C power supply, DC 5-12V/1A

Language:Chinese, English, Japanese, Korean, Portuguese, Spanish, Russian, Italian, German!

Menu function:1, crosshairs:1-30 groups, optional color, adjustable size.

2. Scale bar, center cursor, center line
