4K Electronic Digital Microscope For Soldering Microscope Set 1080P HDMI VGA USB Industrial Camera 150x Lens Fold Bracket Remote

£134.81£202.24 Inc VAT

FREE delivery Thursday 19. September
SKU: 4000901809079

Description

  • Hign-concerned Chemical: None
  • Magnification Ratio: 500X & Under
  • Drawtube: Monocular
  • Certification: CE,EAC,FCC,RoHS,UL,KC
  • Material: Metal
  • Origin: Mainland China
  • Model Number: YZ13-1605B
  • Brand Name: YIZHAN
  • Theory: Video Microscope
  • Is Smart Device: YES
  • Features: High Definition,Handheld,PORTABLE,Digital
  • Features1: 150X
  • Features2: HD
  • Features3: VGA HDMI USB
  • Features4: mini microscope
  • Features5: 2023 new
  • Features6: Assemble
  • Features7: microscope for cell phone
  • Features8: backlight for microscope
  • Features9: 4K
  • Features10: usb microscope
  • Features11: microscope trinocular
  • Features12: digital electronic microscope
  • Features13: digital microscope for soldering
  • Features14: base microscope
  • Features15: stand for microscope
  • Features16: camera for trinocular microscope
  • Features17: microscope repair
  • Features18: microscope stereo

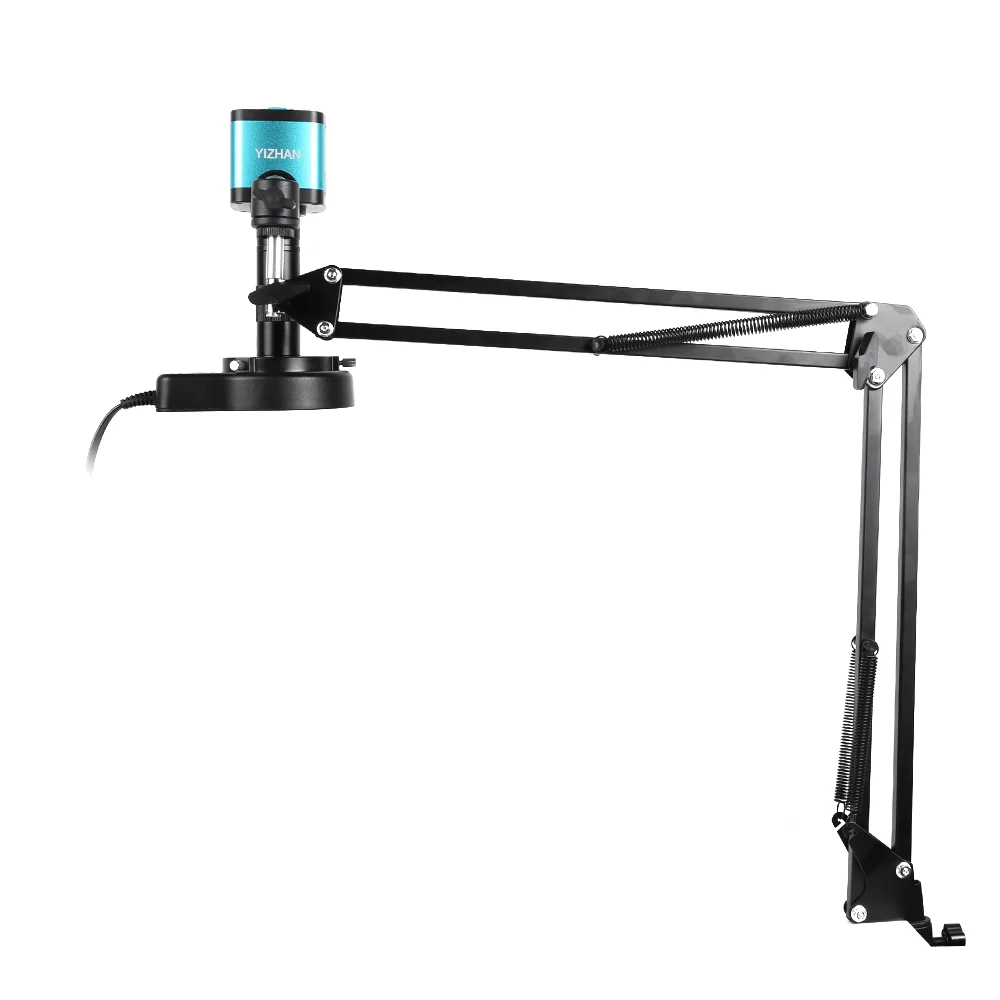

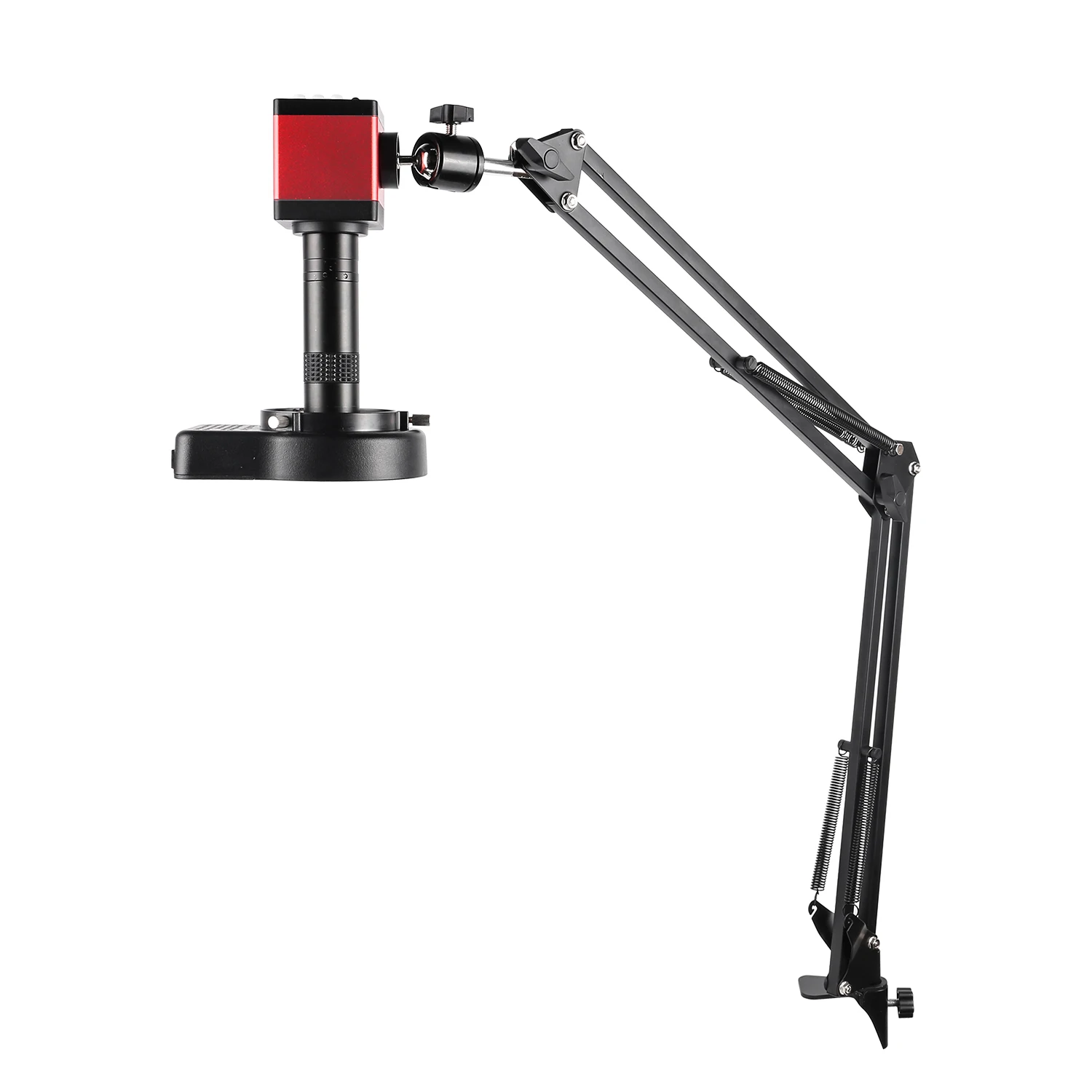

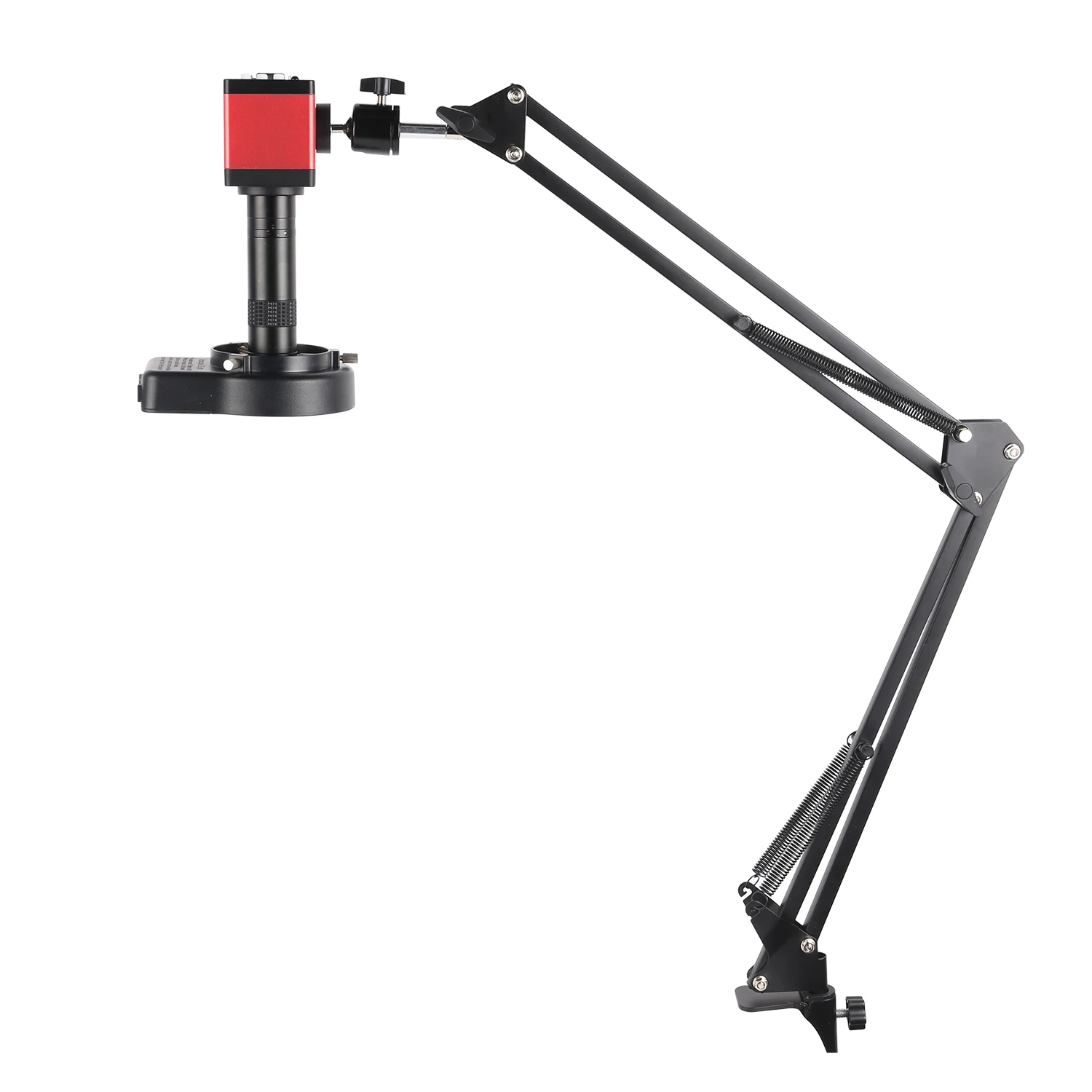

HD digital microscope, the bracket can be rotated Lifting to suit your needs, while the lens supports 1-150X continuous zoom. It can definitely be a fine helper for your daily work. QC inspection, Education purpose inspection, Print industrial, Industrial inspection, PCB material, Jewellery & stamp collection, Textile Industrial, Biological inspection

Video microscopes are easy to operate and widely used.

1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.

2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.

3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.

4. In biological anatomy, applied to local anatomy.

5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.

6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.

7. Cultural relics, books, coins, calligraphy and paintings, the inspection

8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

Package list

1*  Corresponds to camera set

1* 1-150x zoom lens

1* Light

1* Folding bracket

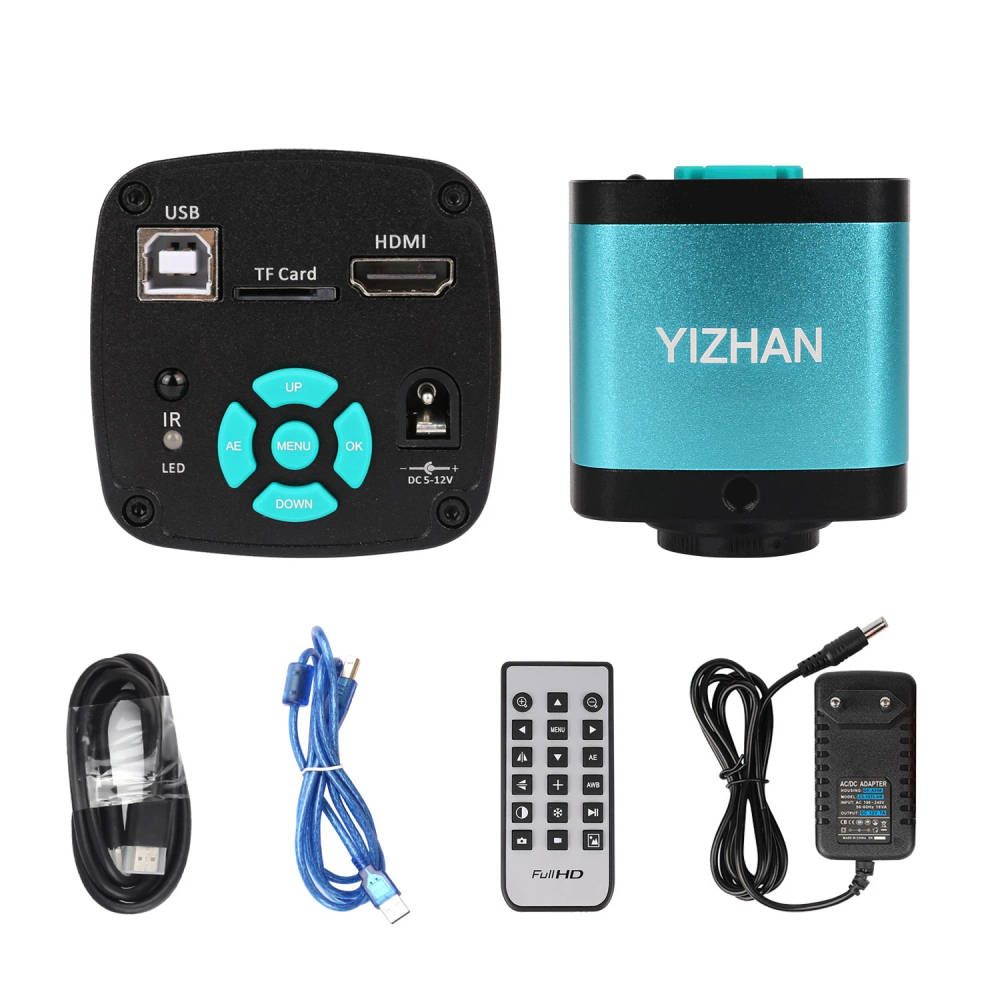

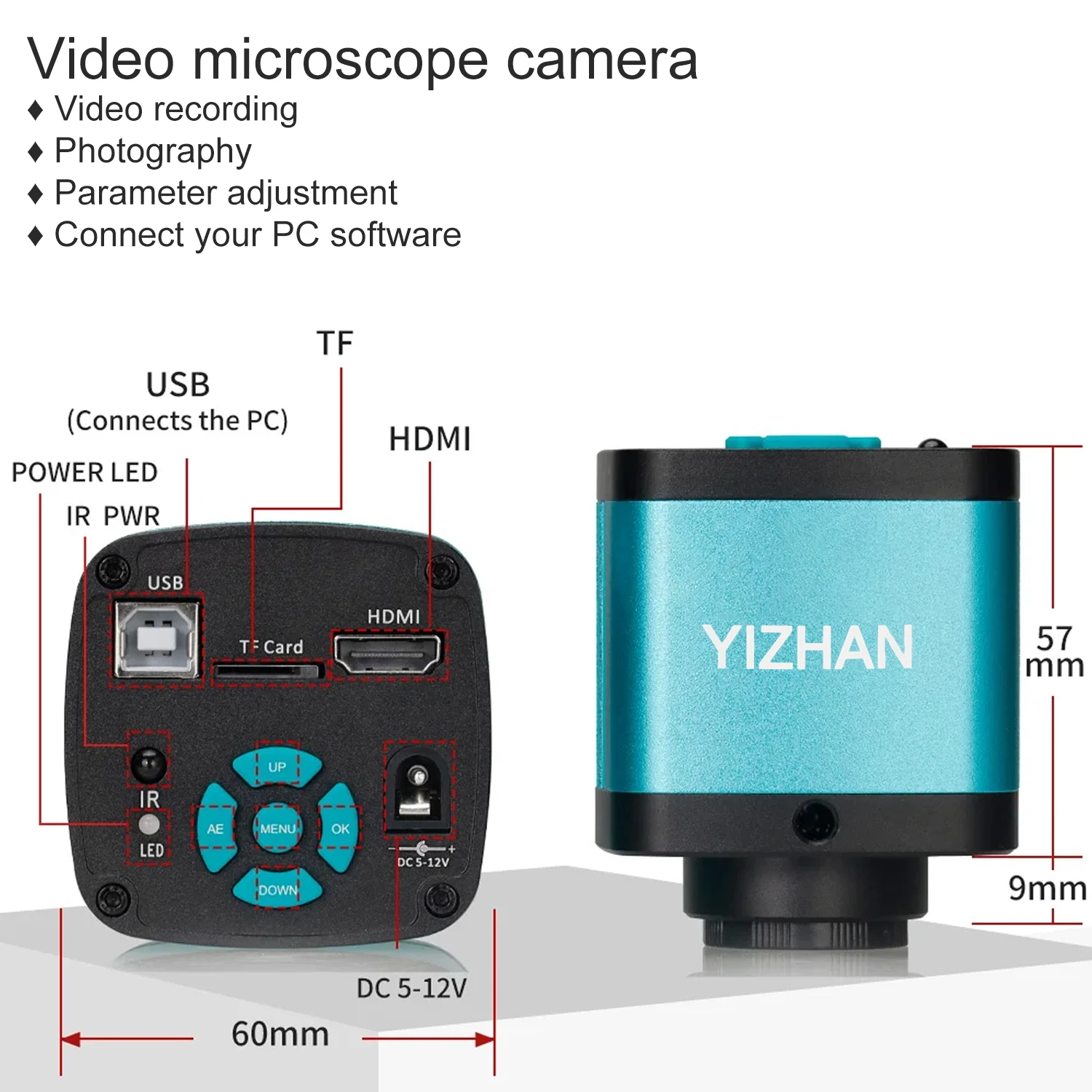

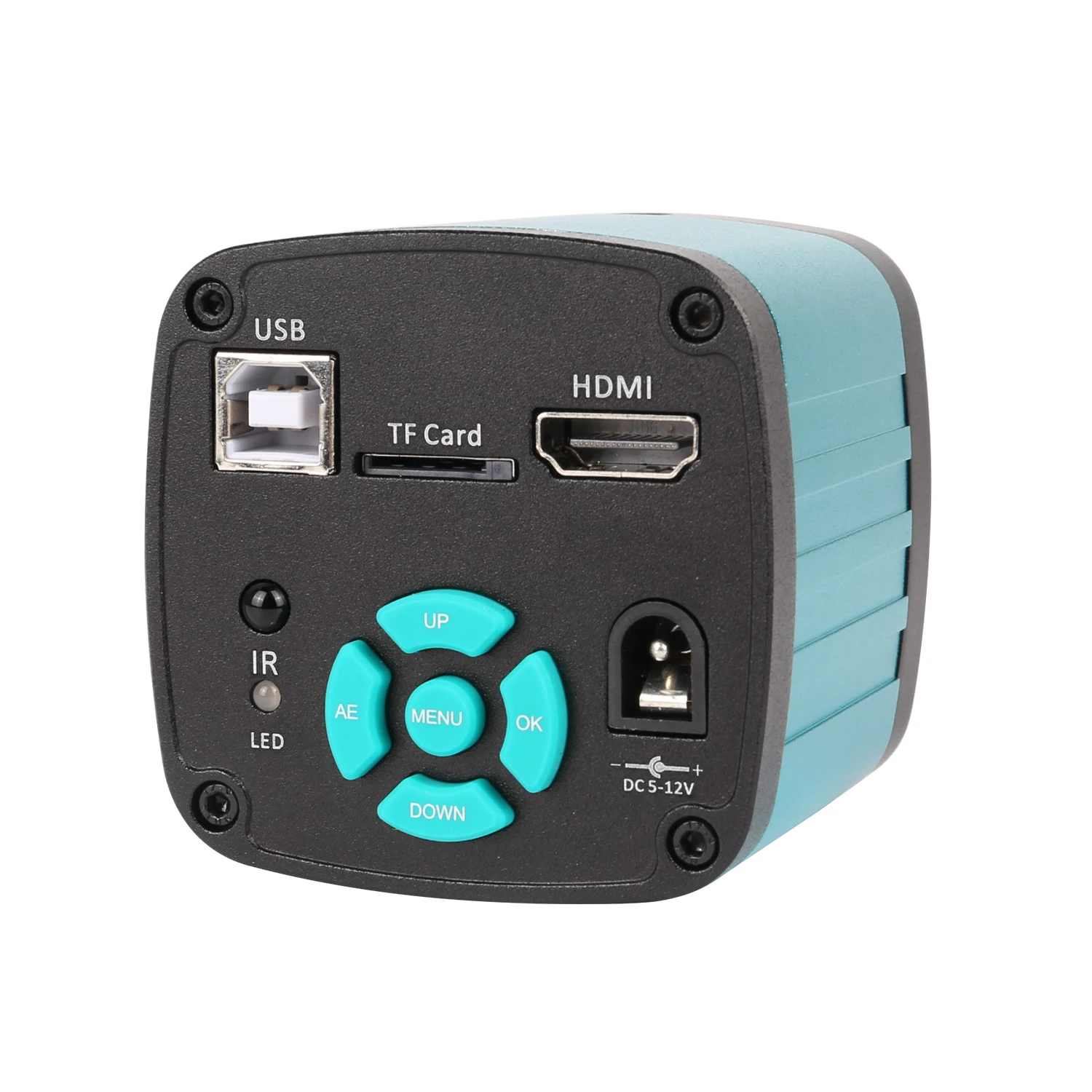

4K HDMI USB 1080P Camera

Camera specifications:
Sensor: 1/2.33-inch SONY imx291 (upgraded)
HDMI output : 1920*1080 60PFS

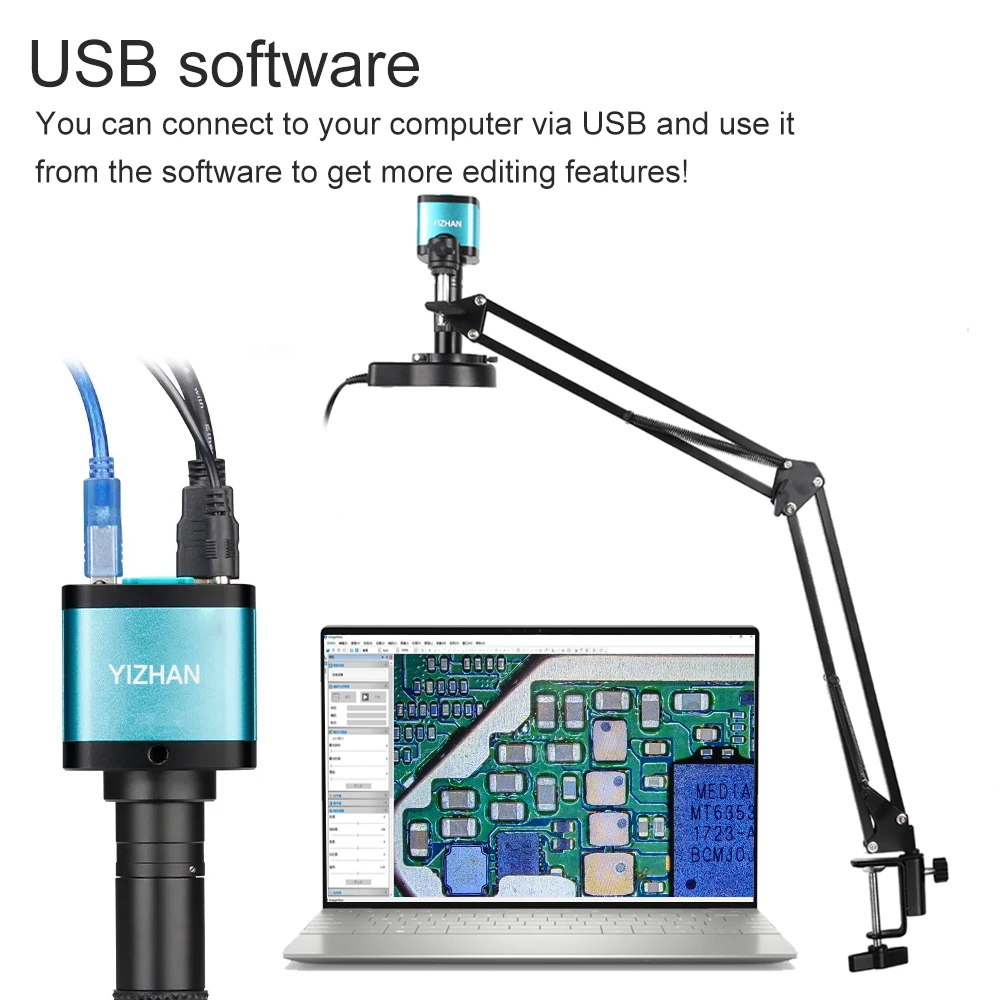

USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Pixel size : 1.335µm × 1.335µm
Camera interface : C/CS
Exposure : Automatic/manual
Exposure compensation : Support
White balance : Automatic/manual, RGB adjustable
Storage : Supports a maximum of 64GB
Input voltage : Dc 5v-12v
line : Supports 8 straight lines with adjustable color, thickness and position
Center line : Support

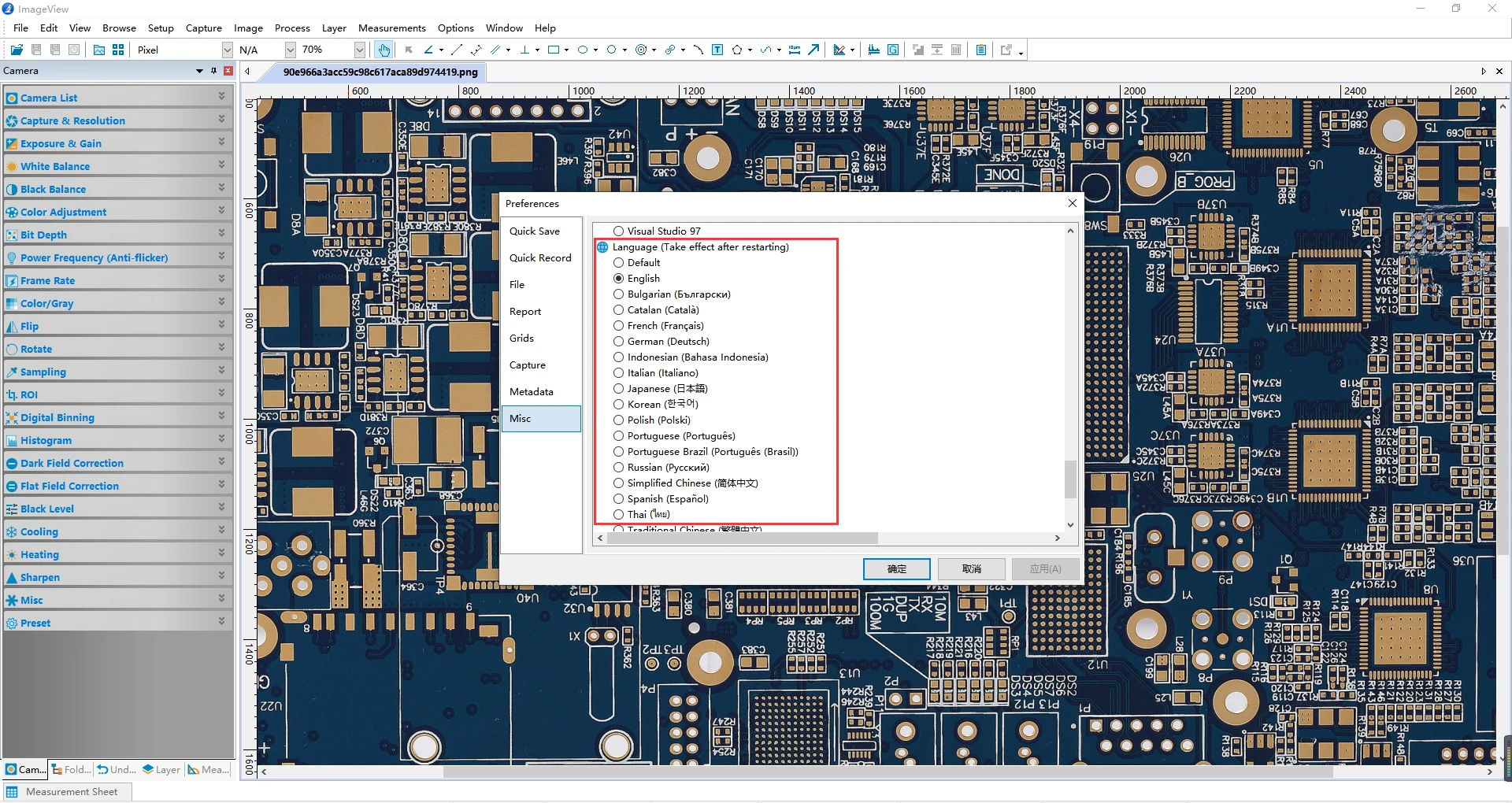

Menu language : English/Chinese
Remote control : Support remote control operation
Net weight : 250g
Rough weight : 450g
Product size : 66*66*49mm
Packing size : 145*130*70mm

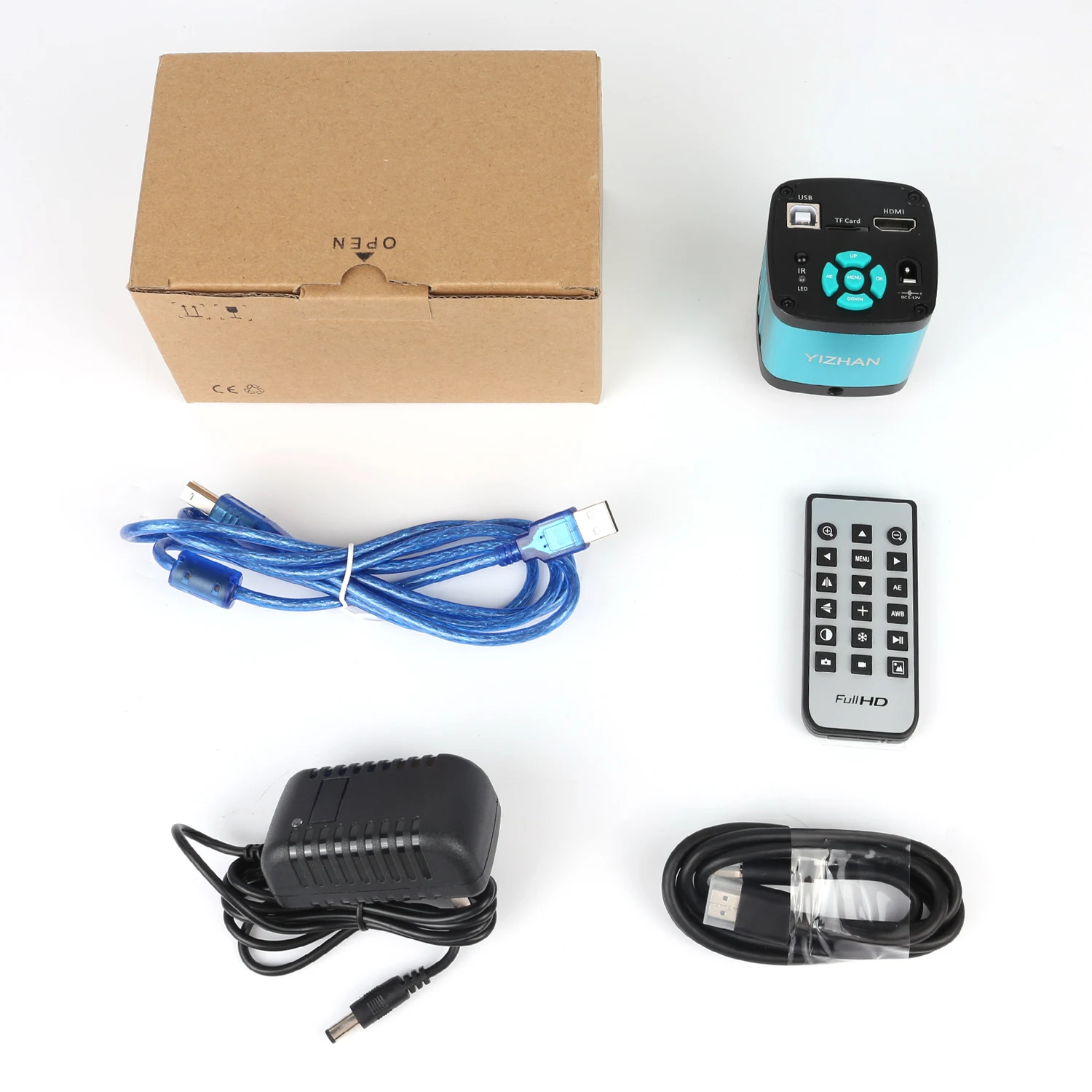

Packing List of camera set:
1 * Camera body
1 * Power adapter
1 * HDMI cables
1 * USB cable
1 * Remote control (no battery due to logistics requirements)
1 * Paper instruction manual

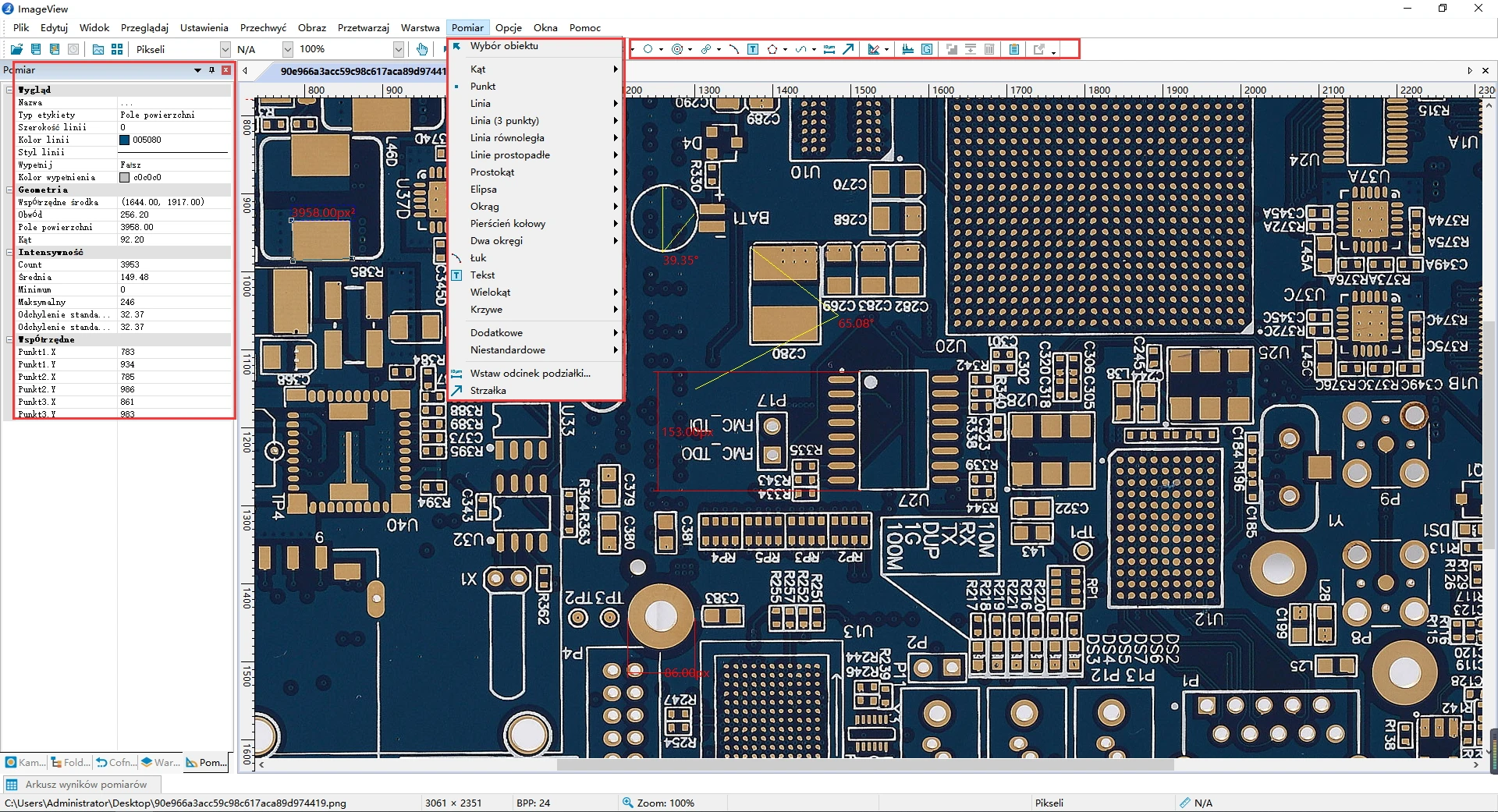

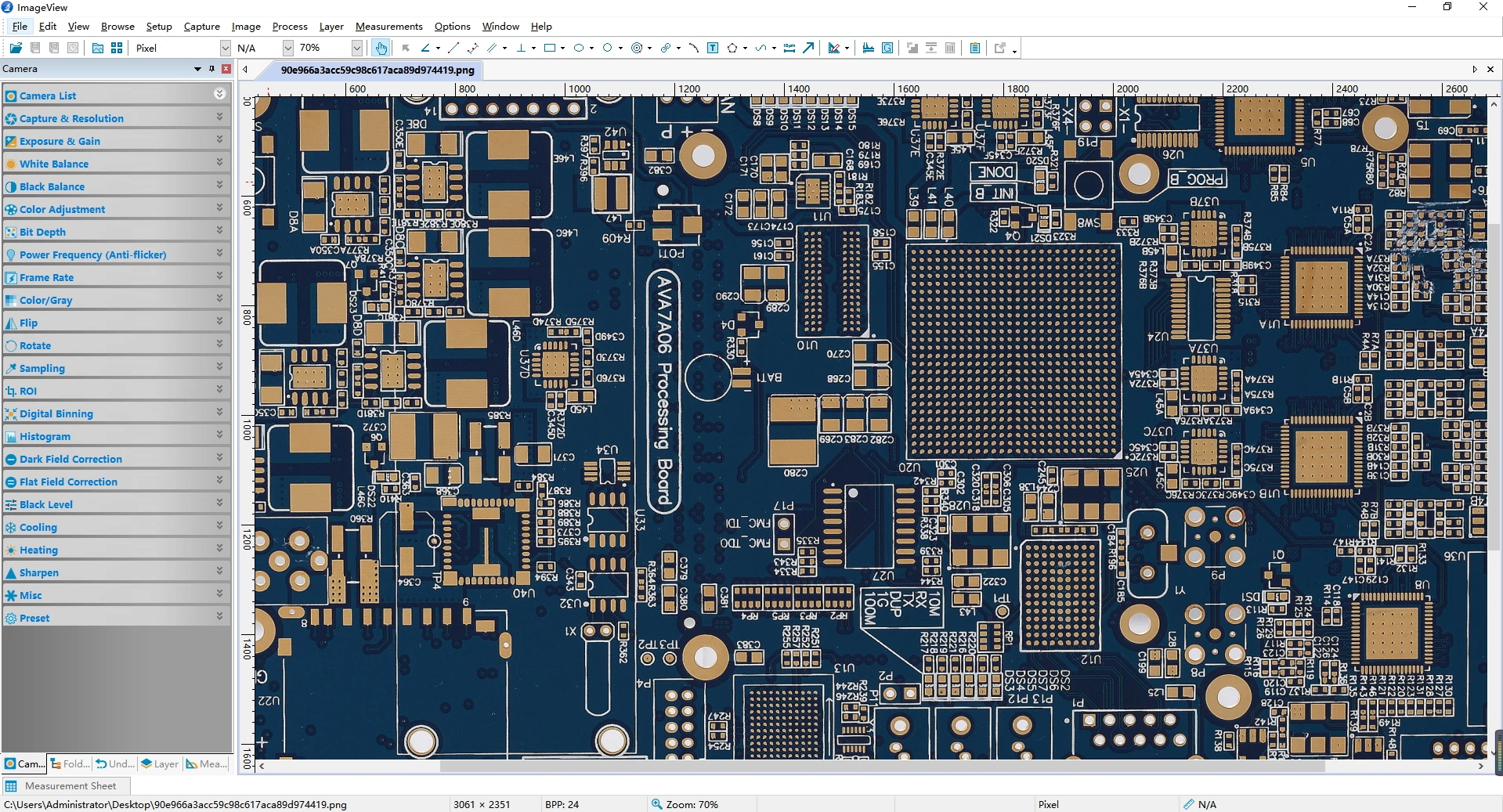

1 * Driver software (you need to leave your email address)

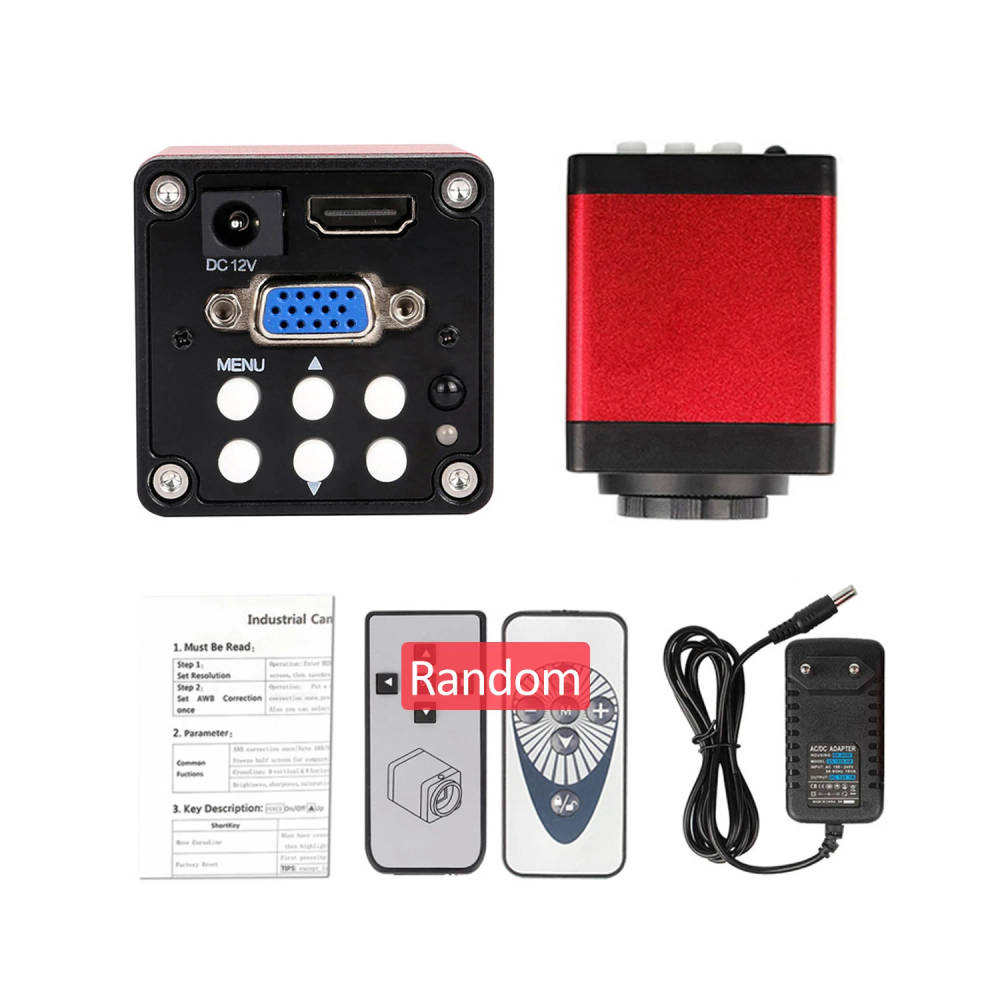

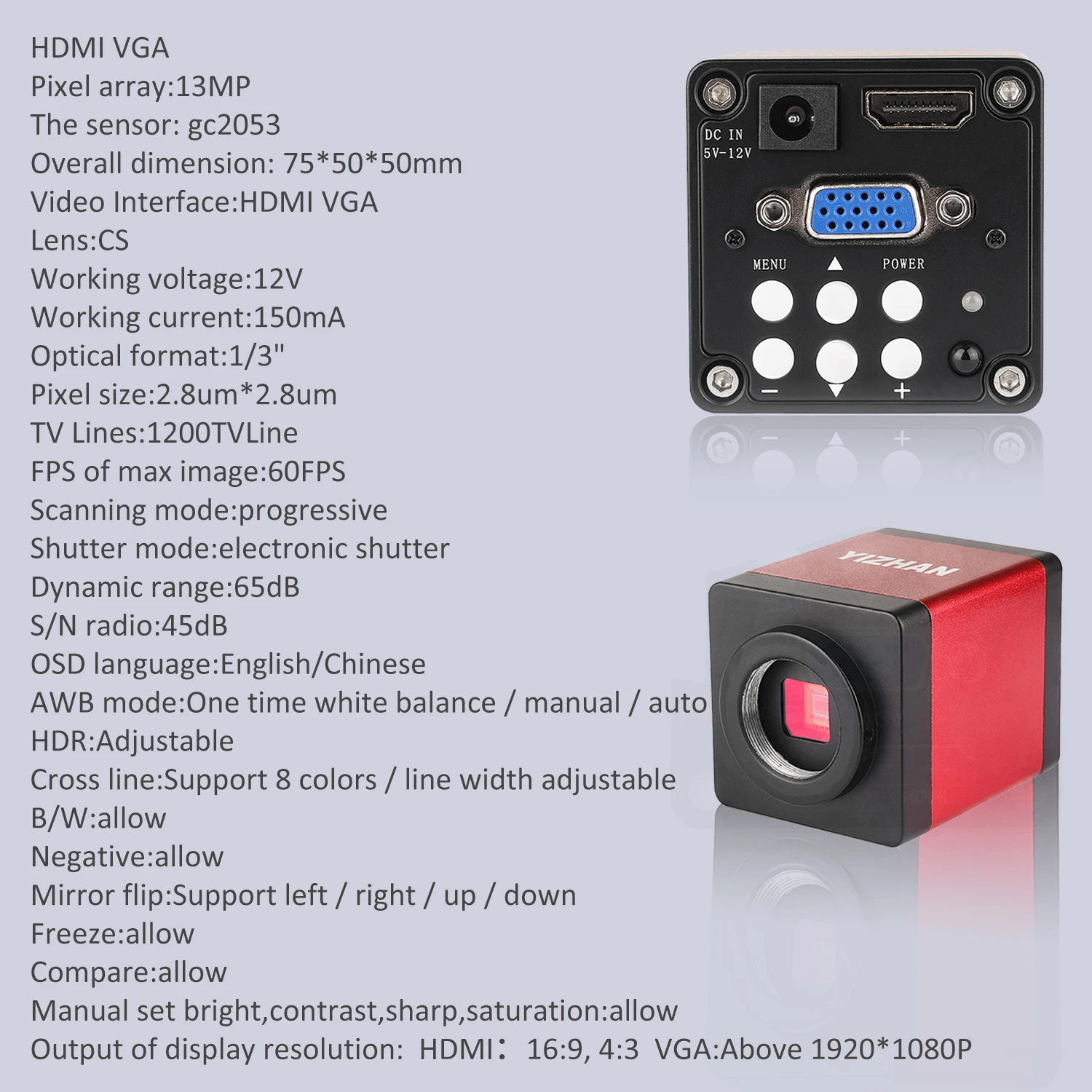

HDMI VGA 1080P Camera

Feature:

The sensor: gc2053
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI:16:9, 4:3 VGA:Above 1920*1080P

Package incluede
1 x 13MP Camera(HDMI VGA )Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free)
1 x Camera remote

1 x Paper manual

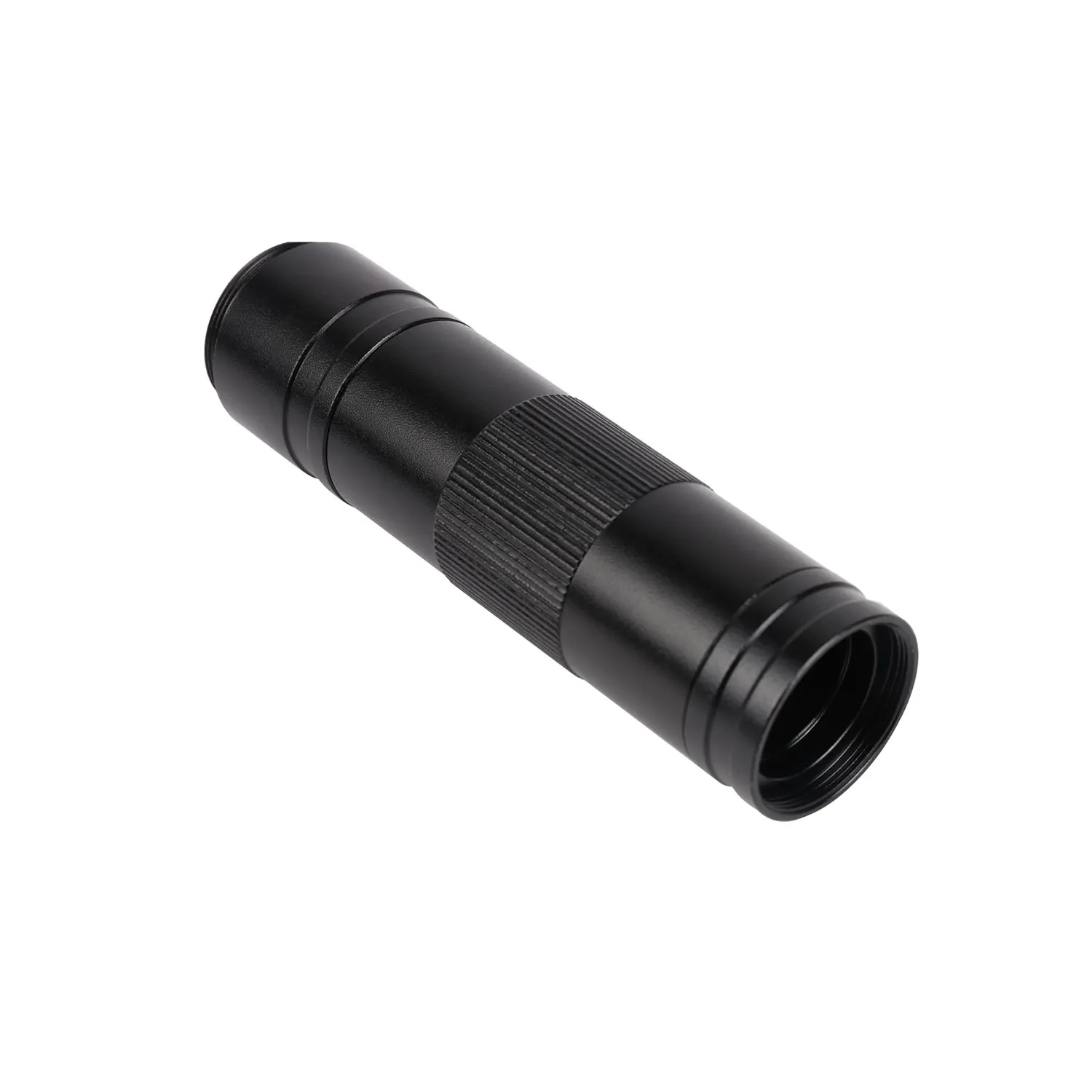

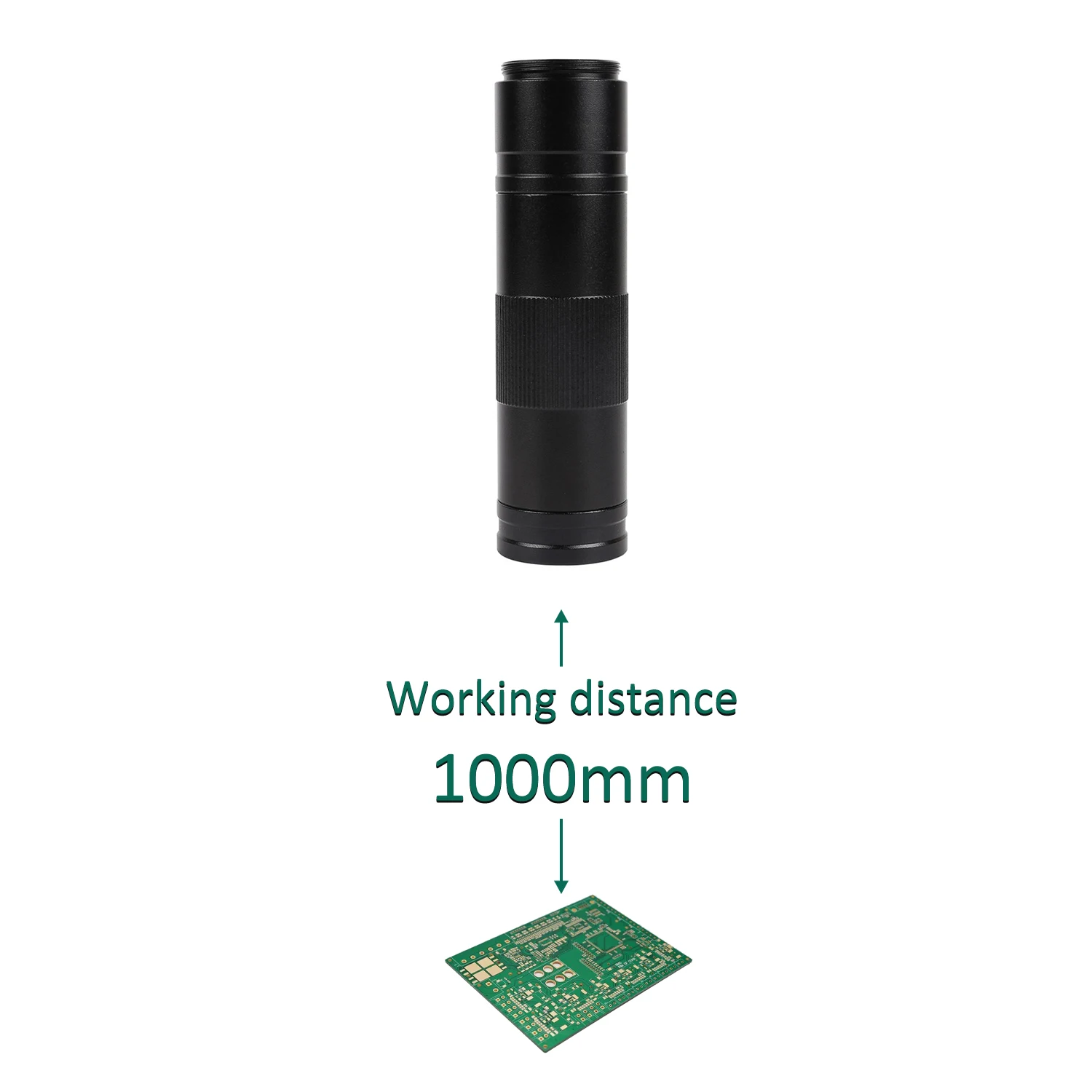

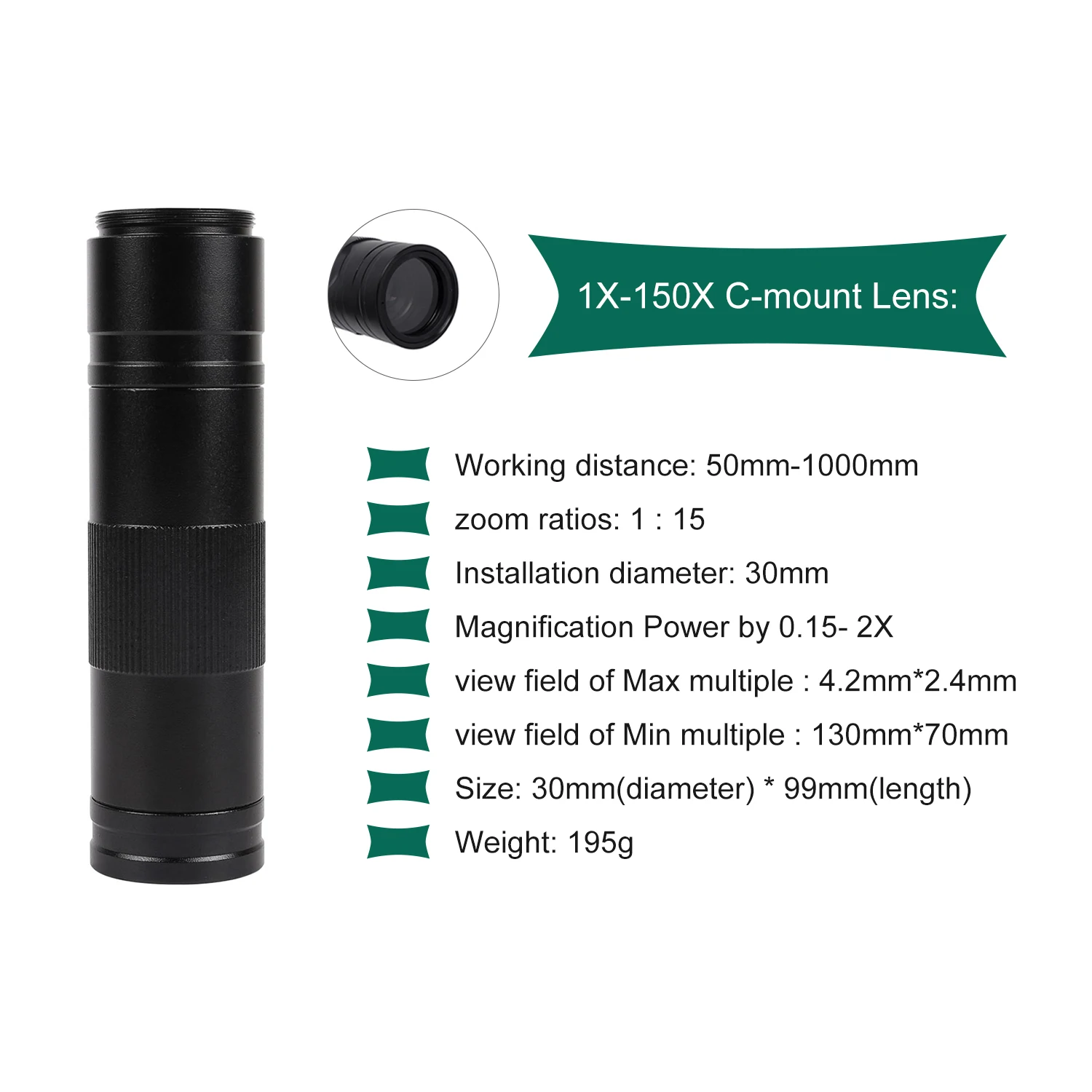

1X-150X Zoom C-mount Lens

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 – 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

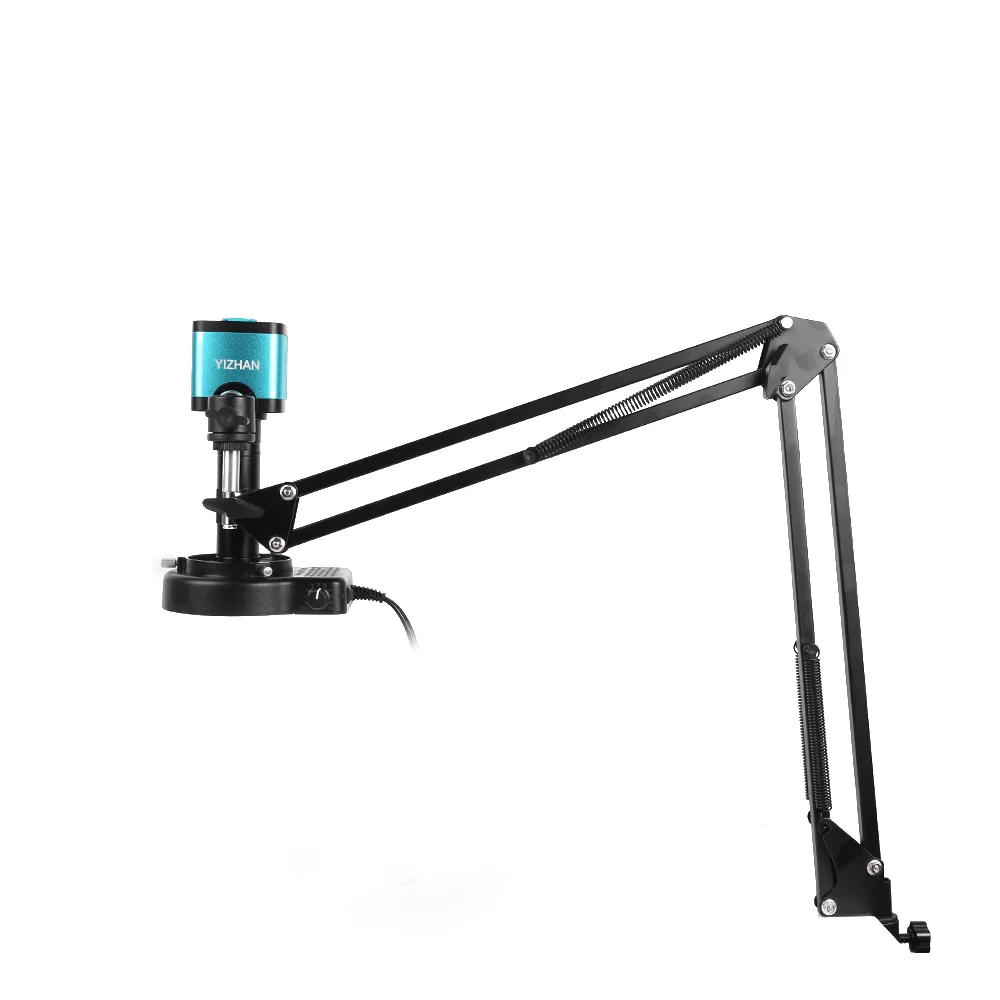

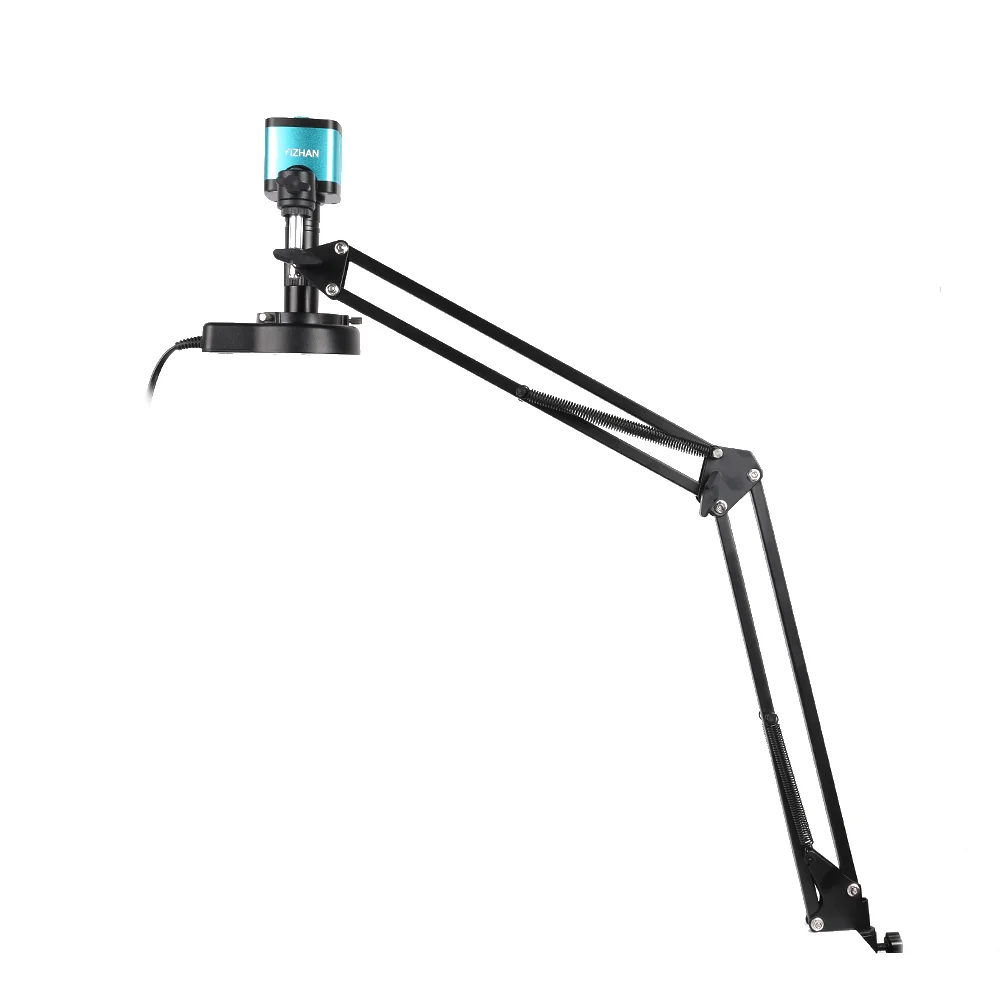

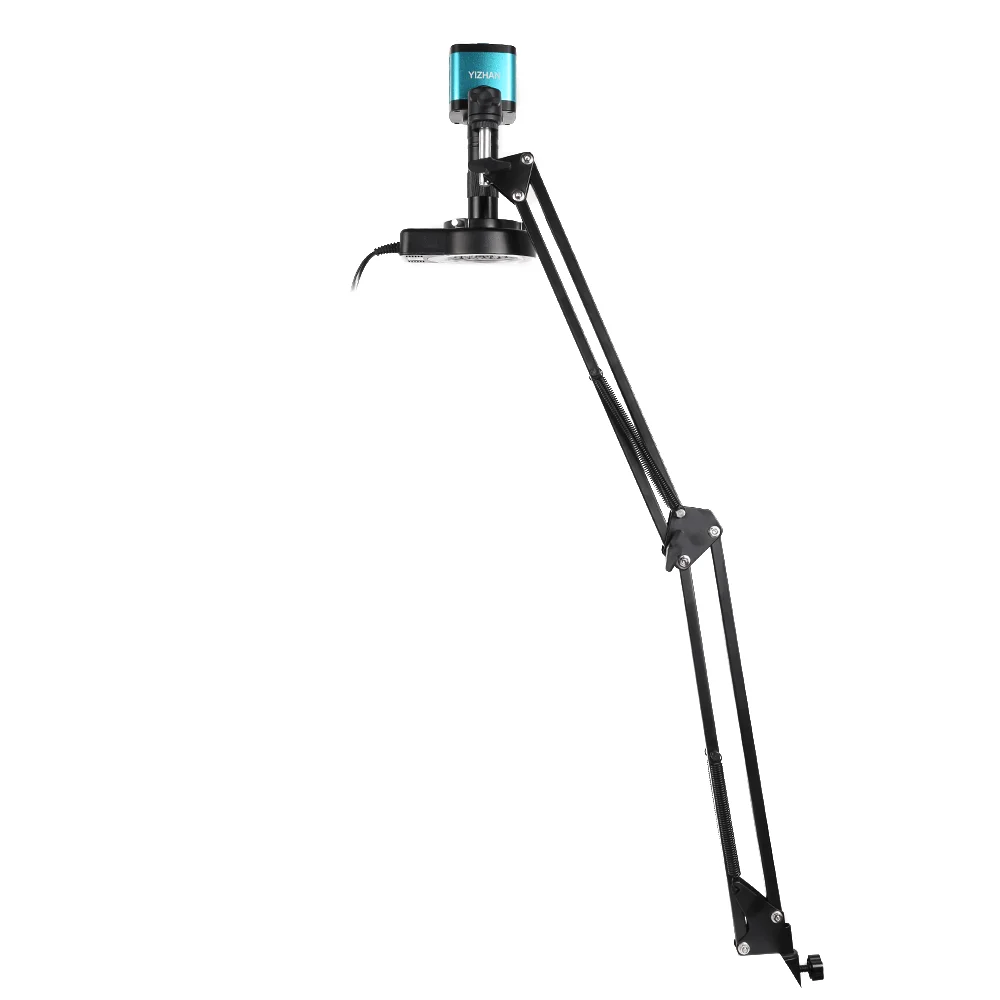

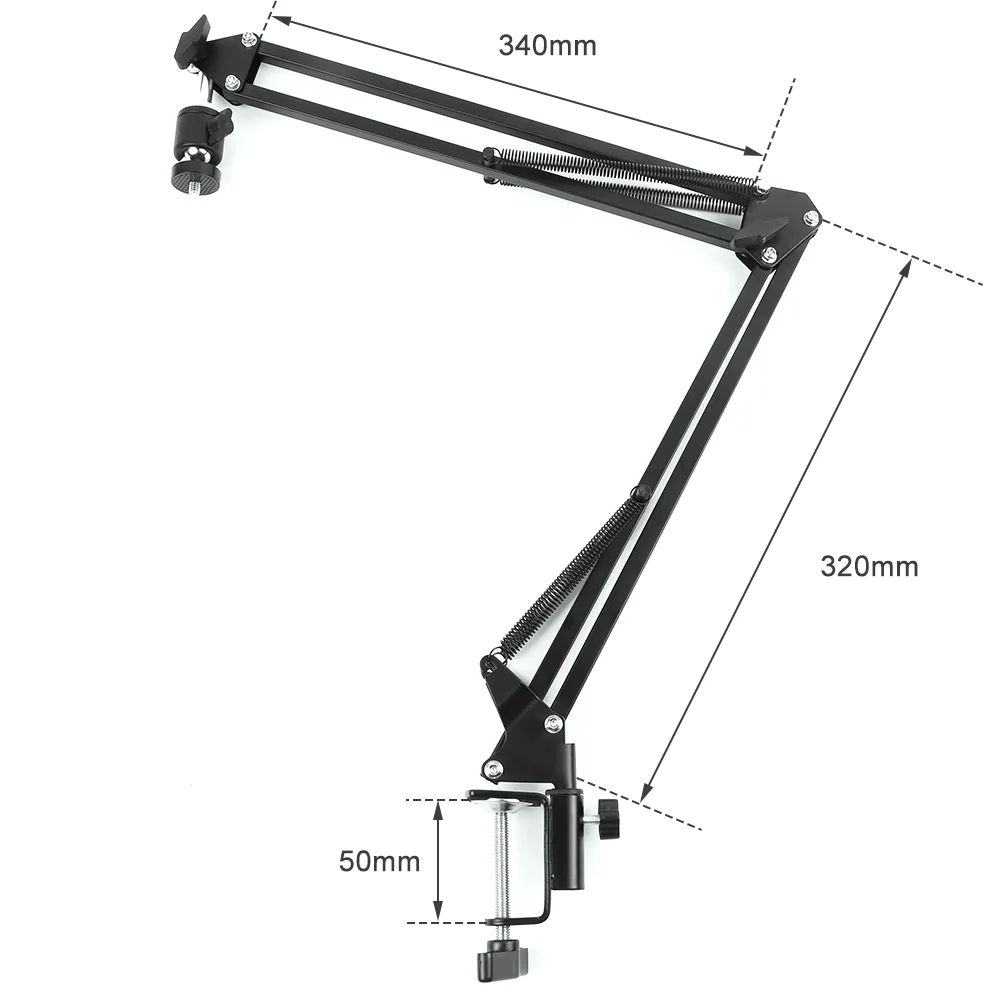

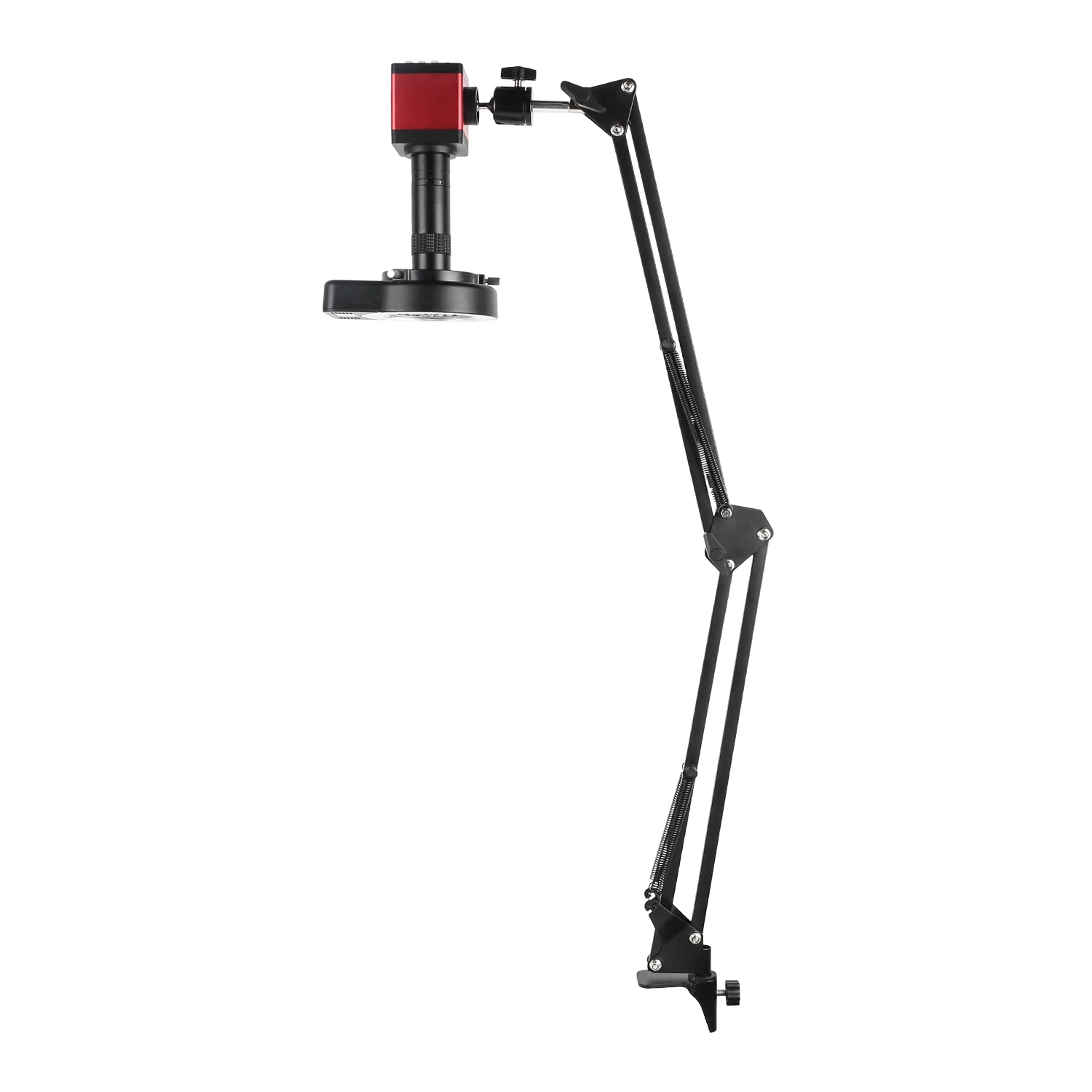

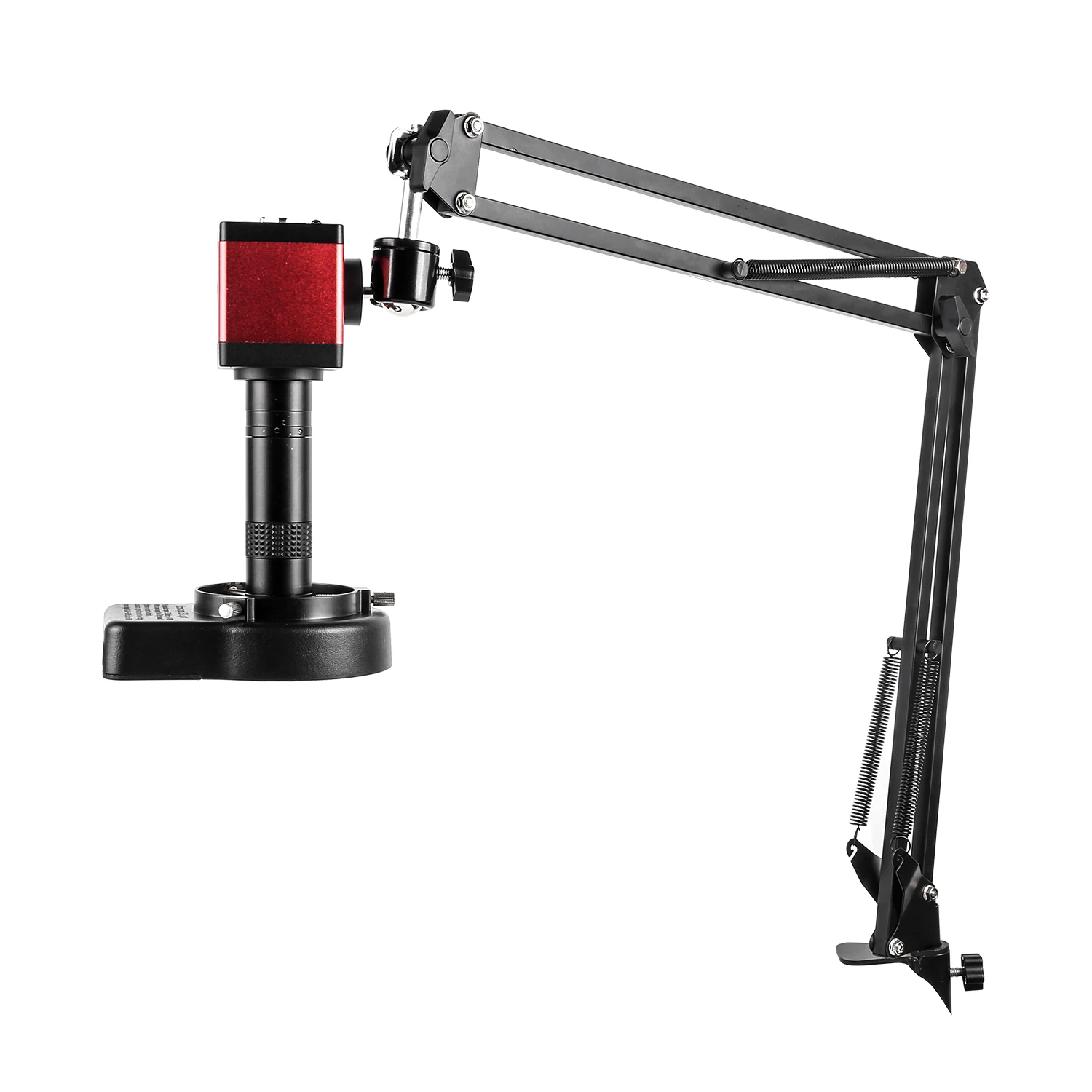

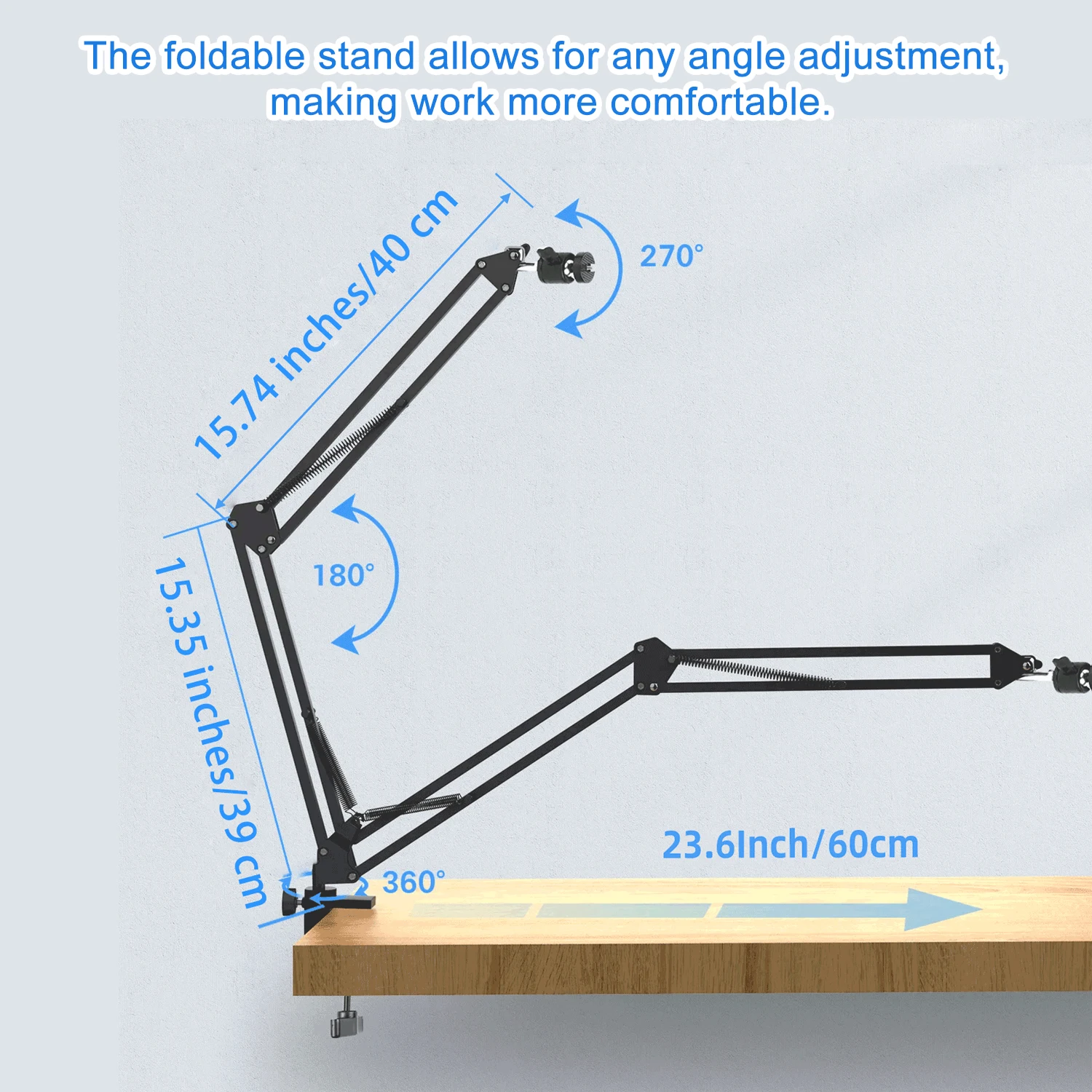

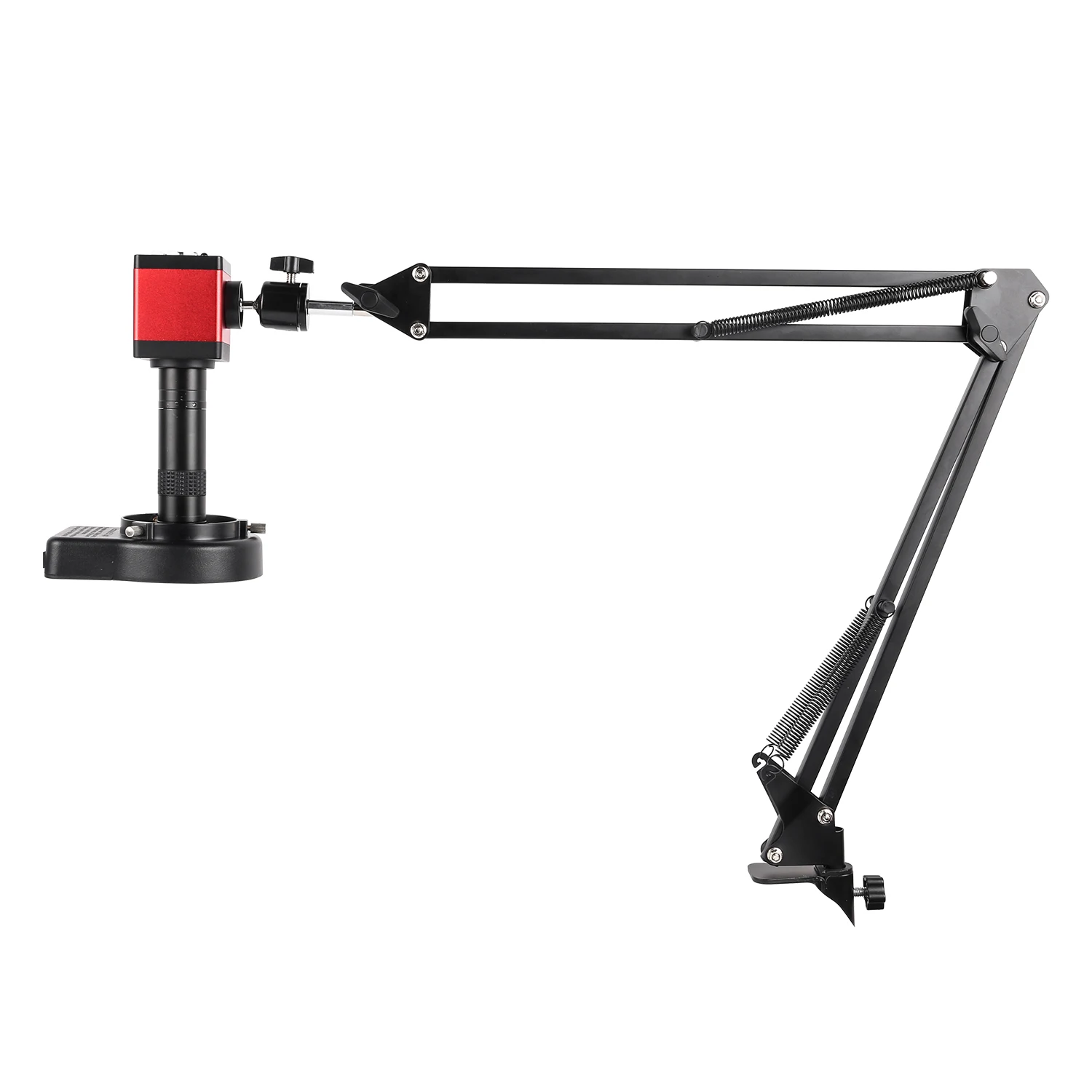

Collapsible support Feature:

Multi-directional folding optional installation, multi-purpose.
Size: 400 mm * 390 mm
Maximum bottom mounting size: 50mm
