Description

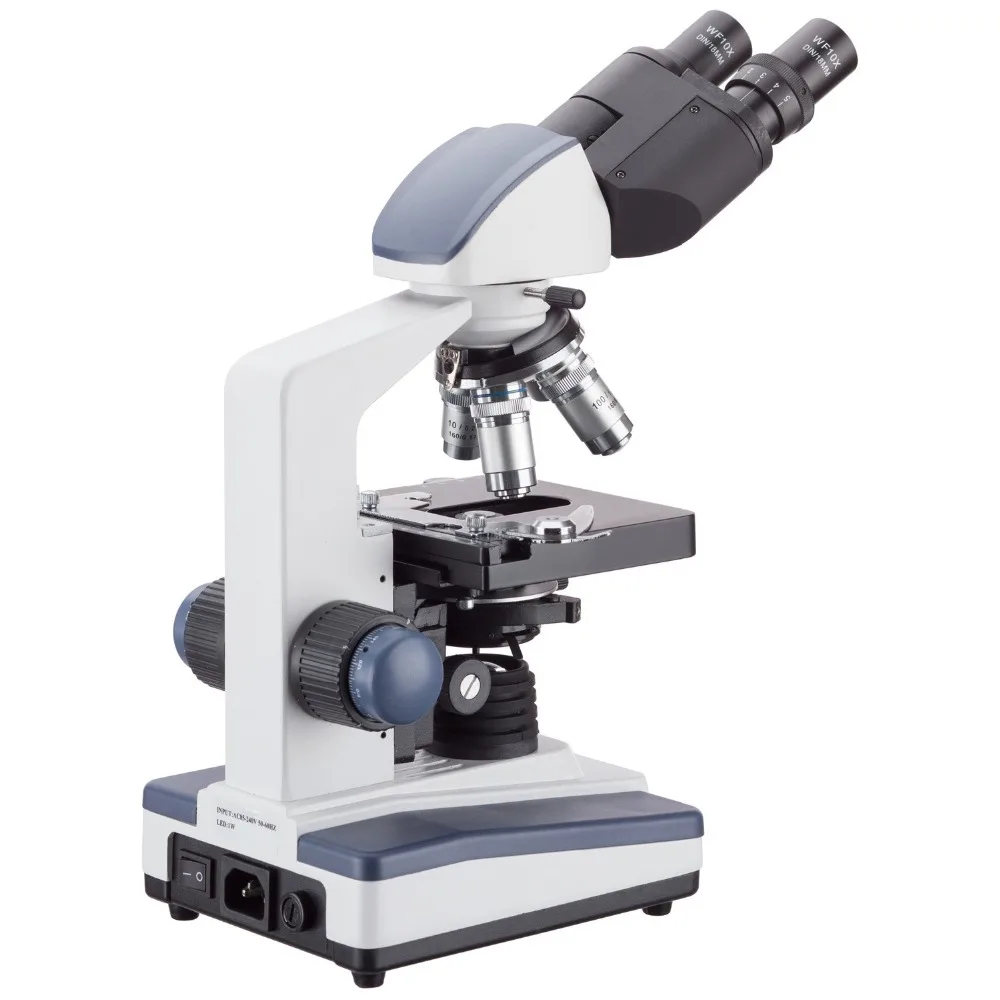

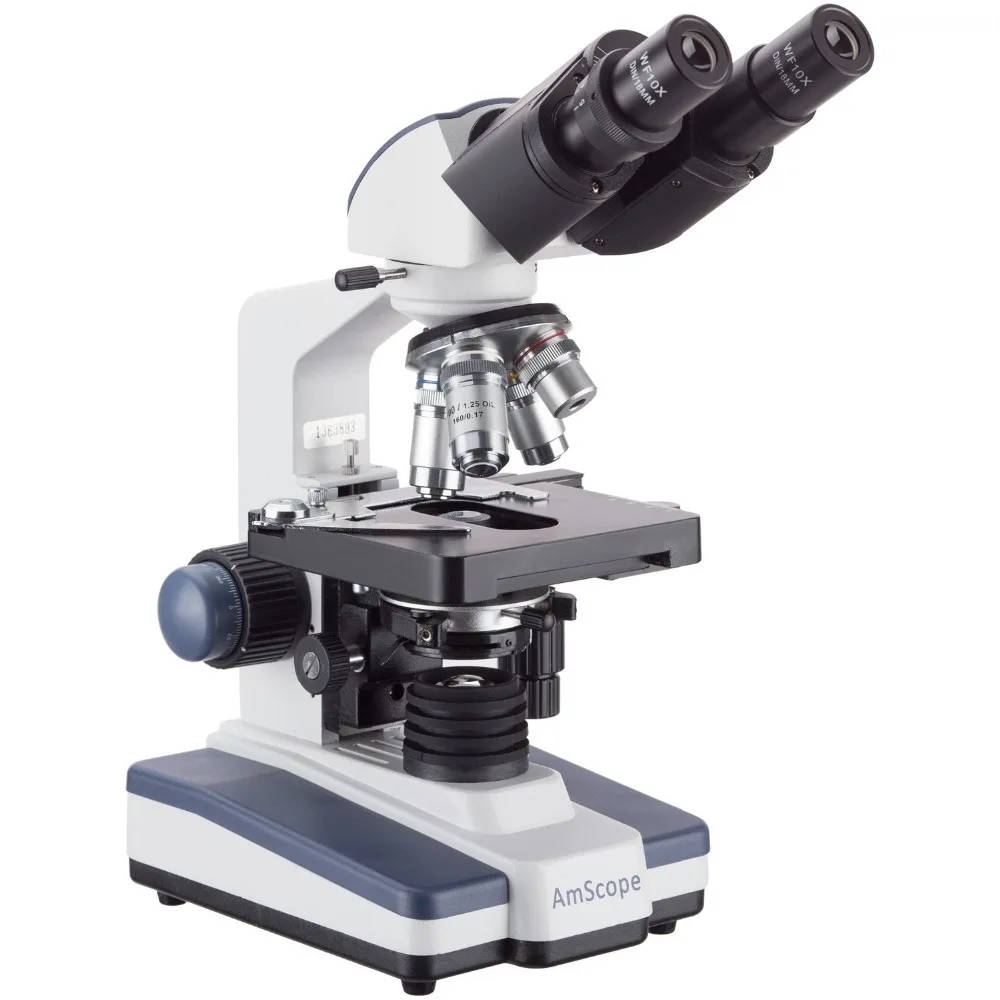

Professional-grade AmScope 40X-2500X LED Lab Binocular Compound Microscope with 3D-Stage. ‘
Magnification Ratio: 1500X – 3000X
Drawtube: BINOCULAR
Certification: CE
Material: Metal
Origin: Mainland China
Model Number: B120C
Brand Name: AmScope
Theory: Biological Microscope
maganification ratio: 40X-2500X

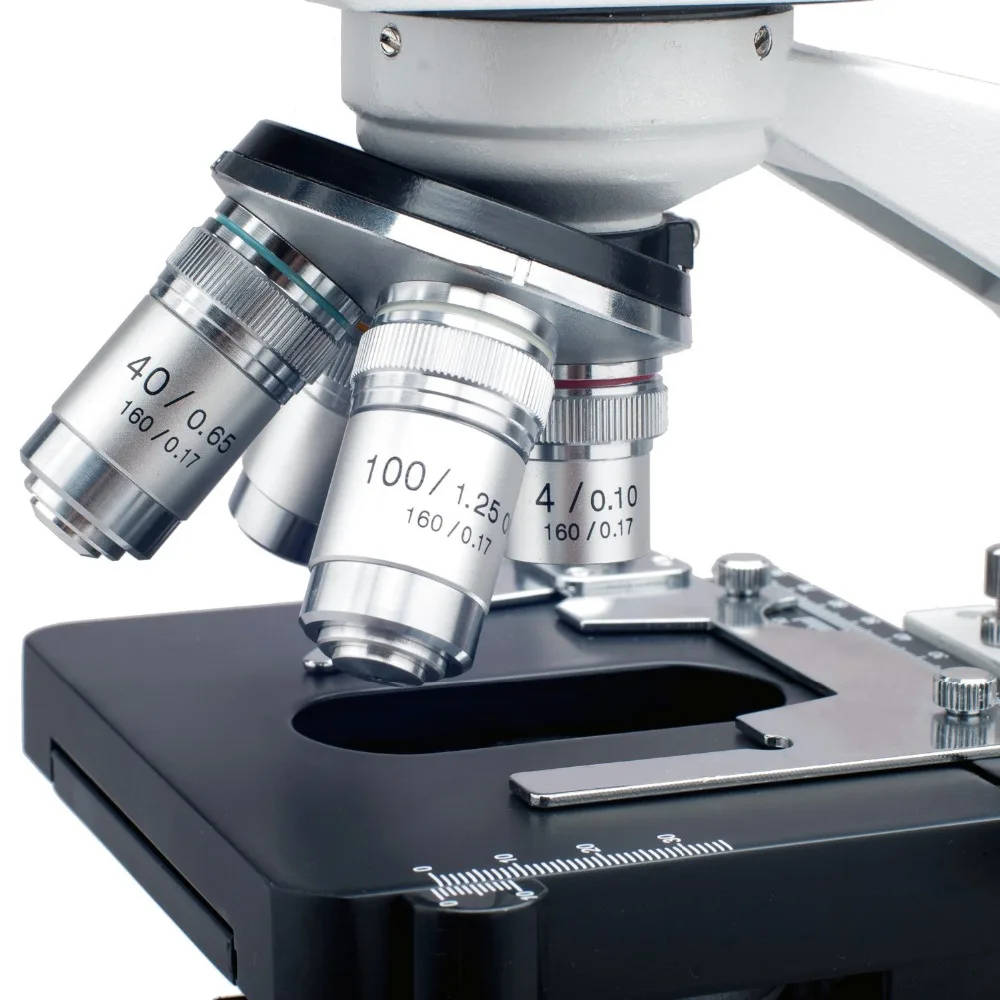

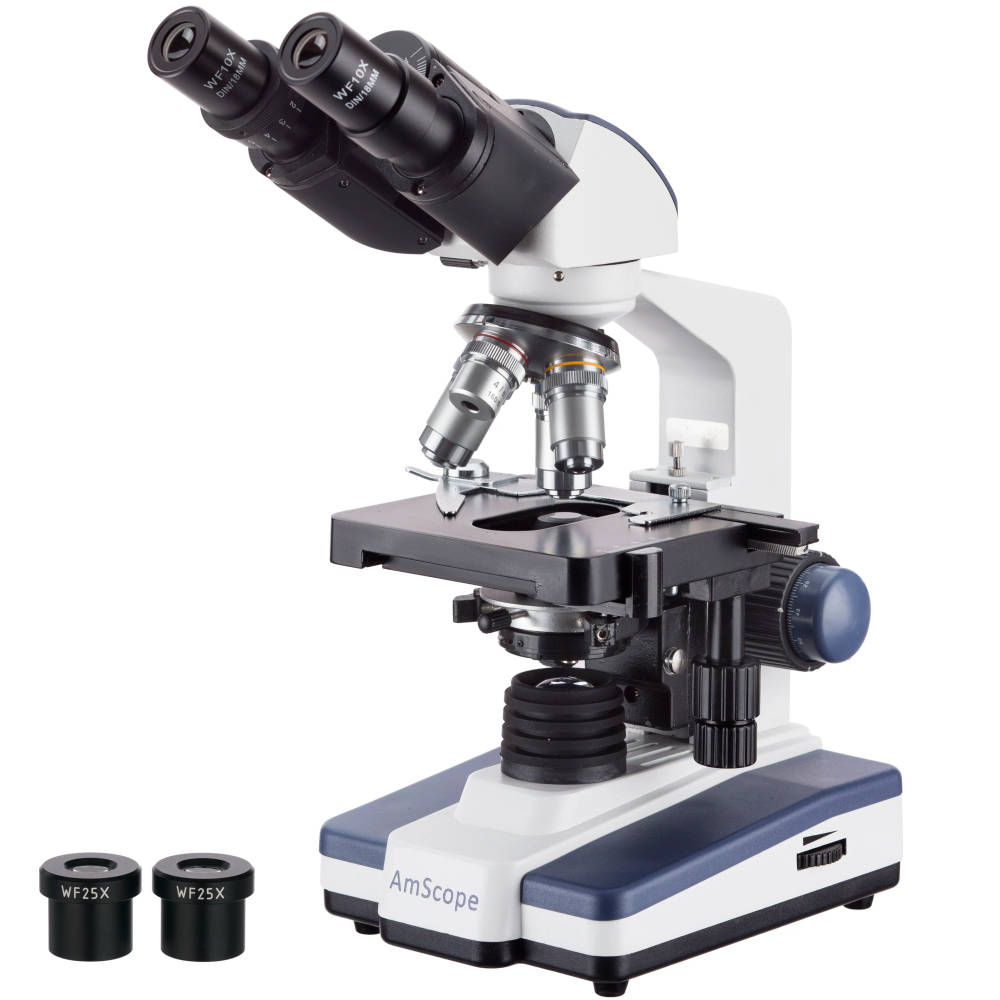

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, and LED illumination system. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.Features :30 degree inclined 360 degree swiveling Siedentopf binocular headHigh quality precise optical glass elementsEasy to attach a microscope camera or digital imagerSix magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500XFour Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)Two pairs of widefield eyepieces: WF10X and WF25XAdjustable interpupillary distanceAdjustable ocular diopterVariable intensity illuminationCoaxial coarse and fine focus adjustmentFocusing knobs are on both sidesStage upward moving lock protects objectives and slidesStain-resistant double layer mechanical stageNA1.25 Abbe Condenser with iris diaphragm & filtersRack and pinion adjustment condenserSpecifications :Eyepieces: widefield, WF10X and WF25XObjectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)Head: 30 degree inclined 360 degree swiveling binocularInterpupillary distance: 2-1/8" – 3-1/8" (53mm – 77mm)Adjustable ocular diopterNosepiece: revolving quadrupleMechanical Stage: 3-D double layer- Size: 4-5/8" x 5" (118mm x 127mm)- Travel Range (X-Y): 70mm x 21mmCondenser: NA1.25 Abbe condenser with iris diaphragmIllumination: LED light, transmitted, intensity adjustable, GS and CE approvedFocusing: coaxial coarse & fine knobs on both sidesPower Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) IncludedDimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)Packing List :One Siedentopf Binocular Microscope HeadOne Microscope Body Frame with Double Layer Mechanical Stage and LED IlluminationFour DIN Standard Objectives, 4X, 10X, 40X and 100XOne Pair of Widefield 10X EyepiecesOne Pair of Widefield 25X EyepiecesOne Blue Color FilterOne Dust CoverB120-DMH18070Digital Head SpecificationsSensor SpecificationsSensor Optical Format1/2.8"Active Pixels2MPixel Size2.9µm x 2.9µmActive Sensor Area5.57mm x 3.13mmOther Camera SpecificationsVideo Resolution1920 x 1080Video Framerate30fpsVideo CaptureSupportedPhoto CaptureButton snap/timed snapImage Adjustment ParametersSaturation/ Hue / Brightness / Contrast / Monochrome / Flip vertical / Flip horizontal / FOVCalibration and MeasurementSupportedMicroscope Mount42mmPower5VDC 1AMonitor SpecificationsScreen Size7" (diagonal)Panel TypeIPSStorageSD CardDimensions182mm x 125mm x 85mmObjective LensesMagnificationCorrectionsNAImmersion MediumCover-glass Thickness4Xachromatic0.10—0.17mm10Xachromatic0.25—0.17mm40Xachromatic0.65—0.17mm100Xachromatic1.25oil0.17mmPacking List:One binocular microscope headOne 7" digital camera headOne microscope bodyFour objective lenses: 4X, 10X, 40X, 100XOne pair of 10X eyepiecesOne blue color filterOne dust coverOne monitor power adapterOne 4gb SD card
