Description
- Magnification Ratio: 7X-45X
- Drawtube: Trinocular
- Material: Metal
- Origin: Mainland China
- Model Number: SM-1TS-144A
- Brand Name: AmScope
- Theory: Stereo Microscope

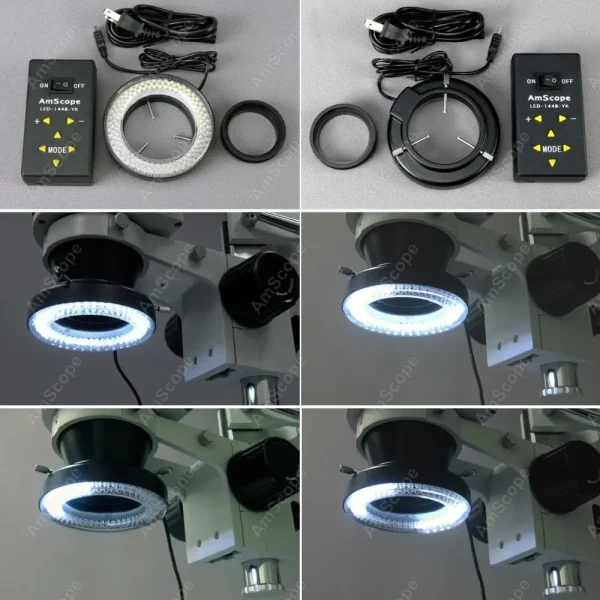

This trinocular stereo microscope comes with a 144-LED 4-light-zone ring light. The microscope has a super widefield optical system that provides a large zoom magnification power (6.5:1) while offering a large working distance (4", 100mm). The trinocular port uses the third port for camera capabilities, or a third party to view as well, giving you the remaining two ports to view your specimen. The 144-LED ring light is lighting-direction changeable and lighting-intensity adjustable, providing cool, even and bright LED illumination. It features a separate control box allowing you to turn on/off each portion of the 4 light zones individually as well as changing the lighting direction so you may obtain the best images for your stereo microscope. This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in electronic and semiconductor industries. It is also the right microscope for biological laboratory applications that require low heat release. This microscope is brand new in a factory sealed box with a retail value over $1,600.
Features:

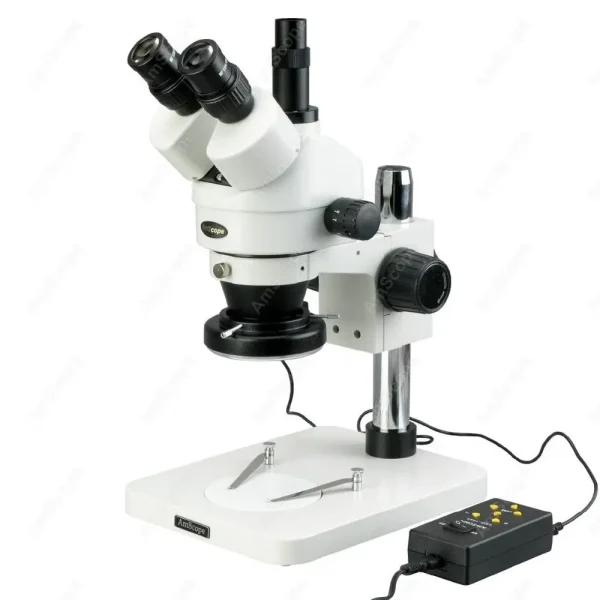

A trinocular stereo inspection microscope with LED ring light
Intensity- and light- direction variable cool, even and bright 144-LED ring illumination
7X-45X super wide zoom magnification power
4" (100mm) extreme large working distance
High resolution with great flatness and contrast, giving sharp and clear images
Trinocular head with 45-degree inclined 360-degree swiveling eye tubes
The trinocular port enables the easy use of camera capabilities
30mm SUPER widefield high-eyepoint eyepieces with a 20mm field of view
Sharp stereo erect images with a wide field of view
Crystal clear, original true color microscope images
Dual eye tubes with adjustable diopters
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eyeguards included
Manufactured under ISO 9001 quality control standard
Five (5) year manufacturer warranty for microscope
Unbeatable low price for the same guarantee or the difference back!
Satisfaction guaranteed or your money back!
Specifications:
Head: 360 degree rotatable 45 degree inclined trinocular
Eyepiece: 30mm super widefield high-eyepoint WH10X/20MM
Zoom Range: 0.7X-4.5X
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" – 2-15/16"(55-75mm)
Working Distance: 4" (100mm)
Field of View: 1-1/4" (33mm) super widefield
Illumination: 144-LED ring light, 4 light zones
Power Input: 110-240V, 50-60HZ, automatic switching
Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Round Plate: 3-3/4" (95mm) in diameter
Accessories: a pair of eye-guards
Packing List:
One Trinocular Stereo Zoom Head
One Pair of Super Widefield 10X Eyepieces
One 144-LED Ring Illuminator with 4 Light Zones
One Pillar Table Stand
One Focusing Rack
One Round Plastic Plate
One Pair of Eye-Guards
One Pair of Clips
One Dust Cover
User’s Manual
