Accurate Standing Wave Ratio and RF Power Measurement

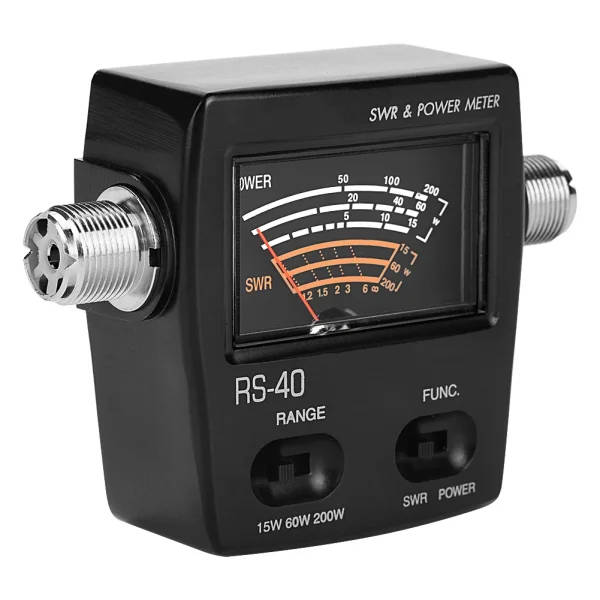

This standing wave meter and power meter is designed to provide accurate measurements of standing wave ratio (SWR) and RF power, making it an essential tool for car radio users and amateur radio enthusiasts.
Key Features
- Lightweight and compact design, ideal for use in limited spaces
- Direct reading of transmitting power and standing wave ratio without complex calibration
- Measures up to 200W power to standing wave ratio
- Low insertion loss (0.3 decibels or less) for continuous connection to the motherboard
- Highly accurate RF power measurement
Specifications
| Type | Power Meter |
| Material | ABS |
| Color | Black |
| Frequency Range | VHF 140-150MHz / UHF 430-450MHz |
| Measurable Power Range | 0-200W |
| Power Class Range | 15W, 60W, 200W |
| Measurement Accuracy | 5W input: AVG +/-10%; PEP +/-15% 20-200W input: AVG +/-5%; PEP +/-10% |
| Impedance | 50 ohms |
| Connector | SO-239 M head |
| Size | approx. 70*78*30 mm / 2.8*3.0*1.2 in |
| Weight | approx. 200g |
Important Safety Notes
- Handle with care, as the meter head is sensitive to excessive collision or vibration
- Do not exceed the maximum detectable power of 200W
- Ensure correct connection of left and right joints according to the instructions
- Do not attempt to calibrate or adjust the product, as it has been factory-calibrated
- Store away from extreme weather conditions and strong magnetic fields
