Introduction
The DFRobot Gravity Analog Electrical Conductivity Sensor/Meter V2 (K=1) is a laboratory-grade tool designed for precise measurement of electrical conductivity in water, making it an essential asset for water quality monitoring, aquaculture, and hydroponics.
Key Features
- Wide voltage input range (3.0~5.0V) for flexible integration
- Hardware-filtered output signal minimises jitter for reliable readings
- AC excitation source reduces polarisation effects, ensuring accurate measurements
- Gravity connector and BNC connector enable plug-and-play functionality
- Comprehensive software library supports two-point calibration and automatic temperature compensation for enhanced accuracy
Applications
This sensor is ideal for various applications, including water quality monitoring, aquaculture, hydroponics, and aquaponics, where precise electrical conductivity measurement is crucial.
Specification
| Parameter | Value |
|---|---|
| Supply Voltage | 3.0~5.0V |
| Output Voltage | 0~3.4V |
| Measurement Accuracy | ±5% Full Scale |
| Probe Type | Laboratory Grade |
| Cell Constant | 1.0 |

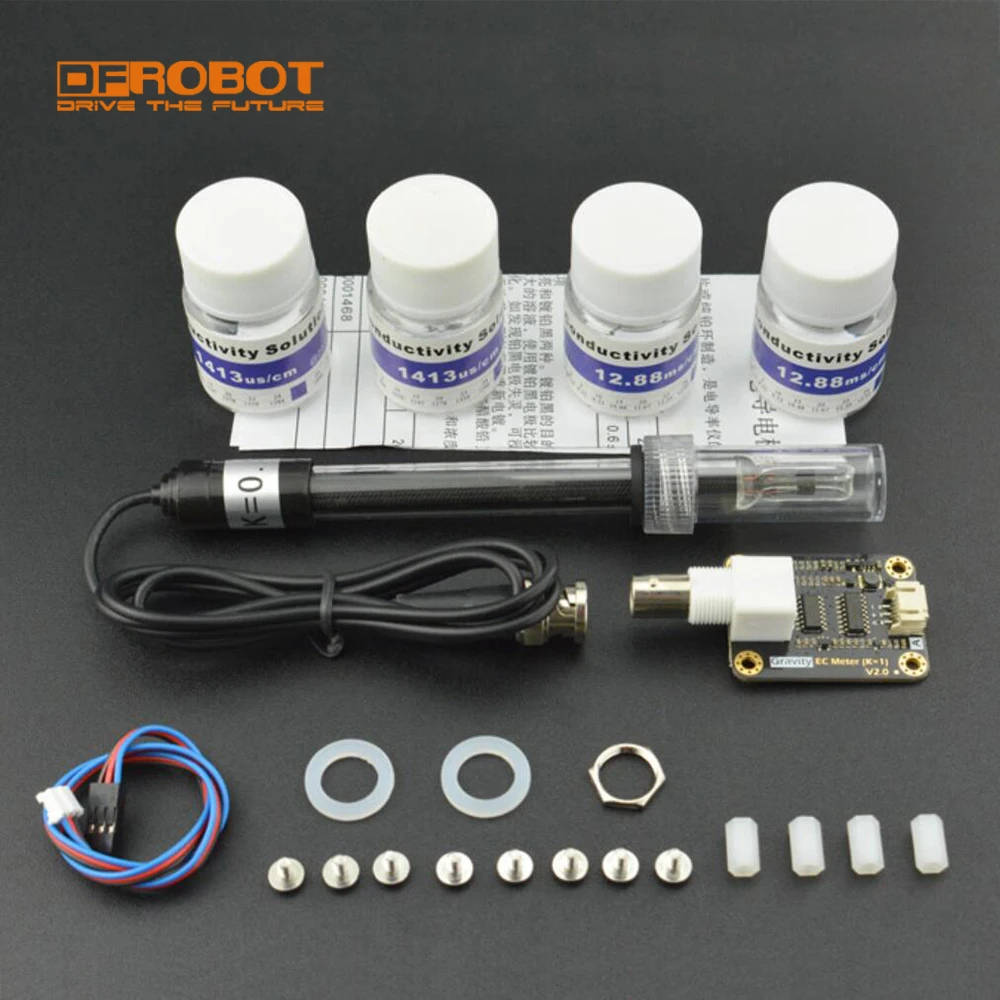

Shipping List
- Electrical Conductivity Probe (K=1, Laboratory Grade) x1
- Signal Conversion Board (Transmitter) V2 x1
- Standard Buffer Solution 1413μs/cm x2
- Standard Buffer Solution 12.88ms/cm x2
- Gravity Analog Sensor Cable x1
