Introduction
This digital infrared thermal imaging camera is designed for basic temperature measurement applications. It features a 24×32 pixel resolution and can measure temperatures ranging from -40°C to 300°C.
Key Features
- MLX90640ESF_BAB IR Sensor for accurate temperature measurement
- Resolution: 32×24 pixels
- Temperature measurement range: -40°C to 300°C
- Measurement accuracy: ±2°C (central area, 0-100°C)
- Refresh rate: 8Hz
- 1.8-inch TFT display with 160×128 resolution
- Rechargeable battery with USB-C charging
- Built-in 4M memory chip for storing up to 90 images
Operating Instructions

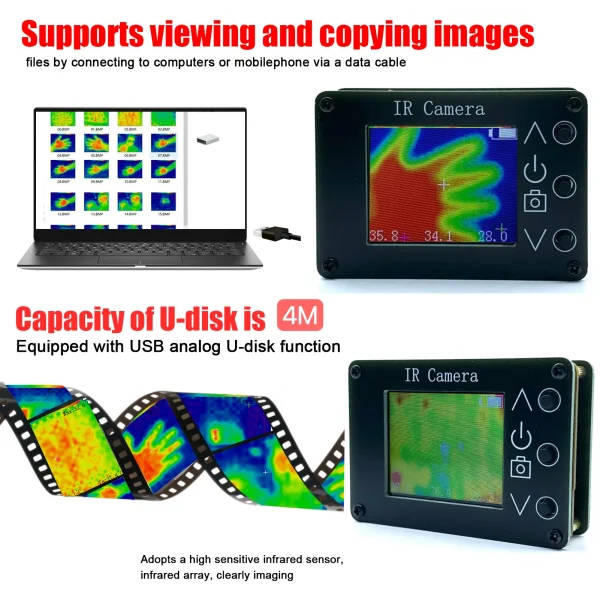

To use the thermal imager, simply press the middle key to turn it on/off, and press the up/down keys to review images. Images can be copied to a computer via USB connection.
Important Notes
This product is not suitable for high-precision temperature measurement applications or detecting subtle temperature changes. It is designed for basic temperature analysis and should be used within a distance of 1 meter.
| Specification | Value |
|---|---|
| Resolution | 32×24 pixels |
| Temperature Range | -40°C to 300°C |
| Accuracy | ±2°C (central area, 0-100°C) |
