Gigabit Ethernet GigE Machine Vision Industrial Camera Color Rolling Shutter C Mouth Provide SDK Windows Linux Demo Python

£230.47 – £625.21 Inc VAT

FREE delivery Monday 16. September
SKU: 32753382817

Description

  • Hign-concerned Chemical: None
  • Magnification Ratio: 500X – 1500X
  • Drawtube: None
  • Certification: none
  • Material: Metal
  • Origin: Mainland China
  • Model Number: HT-GE130/2000C-T
  • Brand Name: HUATENGVISION
  • Theory: Scanning Electron Microscope
  • Is Smart Device: no
  • Features: High Definition
  • Pixel: 0.3~20.0MP
  • Data interface: Gigabit Network
  • Colour: Color/Monochrome
  • Shutter Type: Rolling Shutter
  • Lens Mouth: C-Mouth
  • Sensor Type: CMOS
Gigabit Color Rolling Shutter Camera
GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

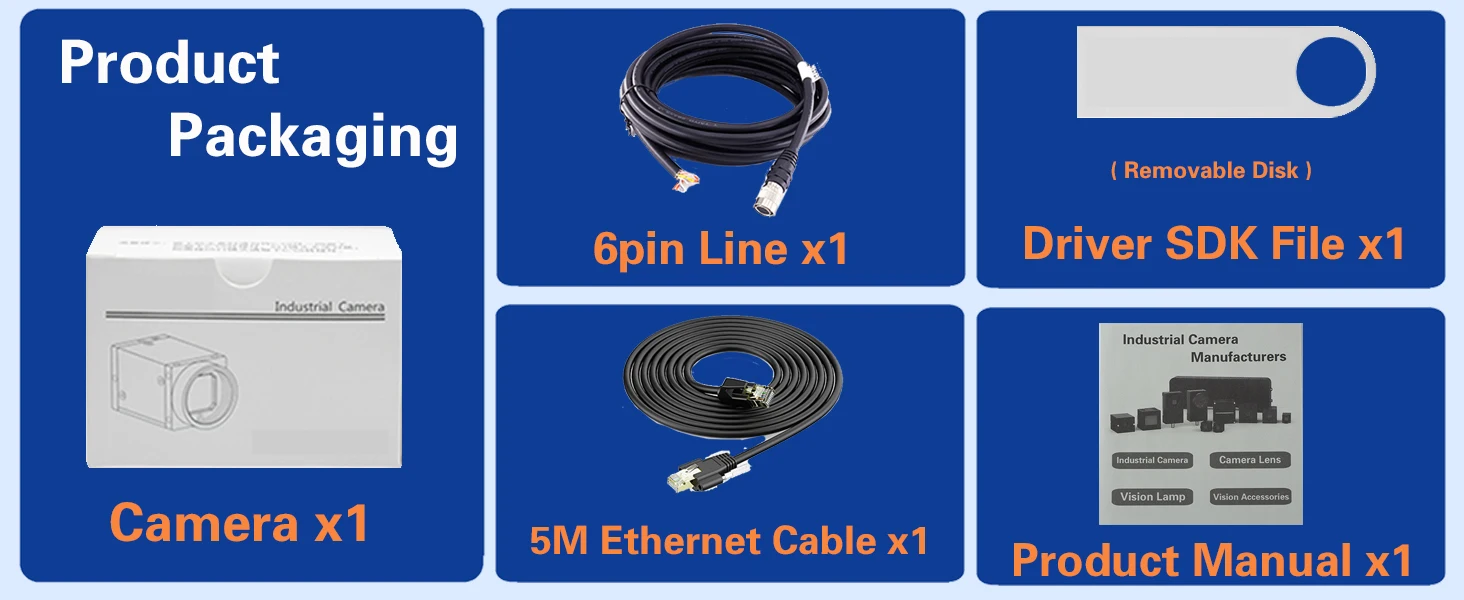

Package Incluede:
1 x Industrial Camera (No Include Lens)
1 x 6pin Line
1 x 5 Meters Gigabit Ethernet CableIndustrial Camera Parameters：

Model

Pixel

Resolution

Frame Rate

Shutter Type

Sensor

Pixel Size

Bit Depth

Color

HT-GE134GC

1.3MP

1280X1024

91 FPS

Rolling Shutter

1/2" PYTHON1300

4.8μm

8/12 Bits

Color

HT-GE134GM

1.3MP

1280X1024

91 FPS

Rolling Shutter

1/2" PYTHON1300

4.8μm

8/12 Bits

Mono

HT-GE502C

5.0MP

2592X1944

24 FPS

Rolling Shutter

1/2.5" AR0521

2.2μm

10 Bits

Color

HT-GE502M

5.0MP

2592X1944

24 FPS

Rolling Shutter

1/2.5" AR0521

2.2μm

10 Bits

Mono

HT-GE630C

6.3MP

3088X2064

18 FPS

Rolling Shutter

1/1.8" IMX178

2.4μm

12 Bits

Color

HT-GE630M

6.3MP

3088X2064

18 FPS

Rolling Shutter

1/1.8" IMX178

2.4μm

12 Bits

Mono

HT-GE800C

8.0MP

3840X2160

14 FPS

Rolling Shutter

1/1.8" OEM

2.4μm

12 Bits

Color

HT-GE800M

8.0MP

3840X2160

14FPS

Rolling Shutter

1/1.8" OEM

2.4μm

12 Bits

Mono

HT-GE1000C

10.0MP

3664X2748

8 FPS

Rolling Shutter

1/2.3" MT9J003

1.67μm

12 Bits

Color

HT-GE1000M

10.0MP

3664X2748

8 FPS

Rolling Shutter

1/2.3" MT9J003

1.67μm

12 Bits

Mono

HT-GE1201C

12.0MP

4000X3000

9.86 FPS

Rolling Shutter

1/1.7" IMX226

1.85μm

8 Bits

Color

HT-GE1201M

12.0MP

4000X3000

9.86 FPS

Rolling Shutter

1/1.7" IMX226

1.85μm

8 Bits

Mono

HT-GE1600C

16.0MP

4608X3456

7 FPS

Rolling Shutter

1/2.3" IMX206

1.34μm

12 Bits

Color

HT-GE1600M

16.0MP

4608X3456

7 FPS

Rolling Shutter

1/2.3" IMX206

1.34μm

12 Bits

Mono

HT-GE2000C

20.0MP

5488X3672

5.9 FPS

Rolling Shutter

1" IMX183

2.4μm

12 Bits

Color

HT-GE2000M

20.0MP

5488X3672

5.9 FPS

Rolling Shutter

1" IMX183

2.4μm

12 Bits

Mono

HT-GE200C

2.0MP

1920X1080

30 FPS

Rolling Shutter

1/2.8"

2.98μm

8 Bits

Color

Data Interface

  GigE

Synchronization

  • Via free run

  • Via software trigger

  • Via hardware trigger

Exposure Control

  • Programmable via the camera API

  • Via hardware trigger

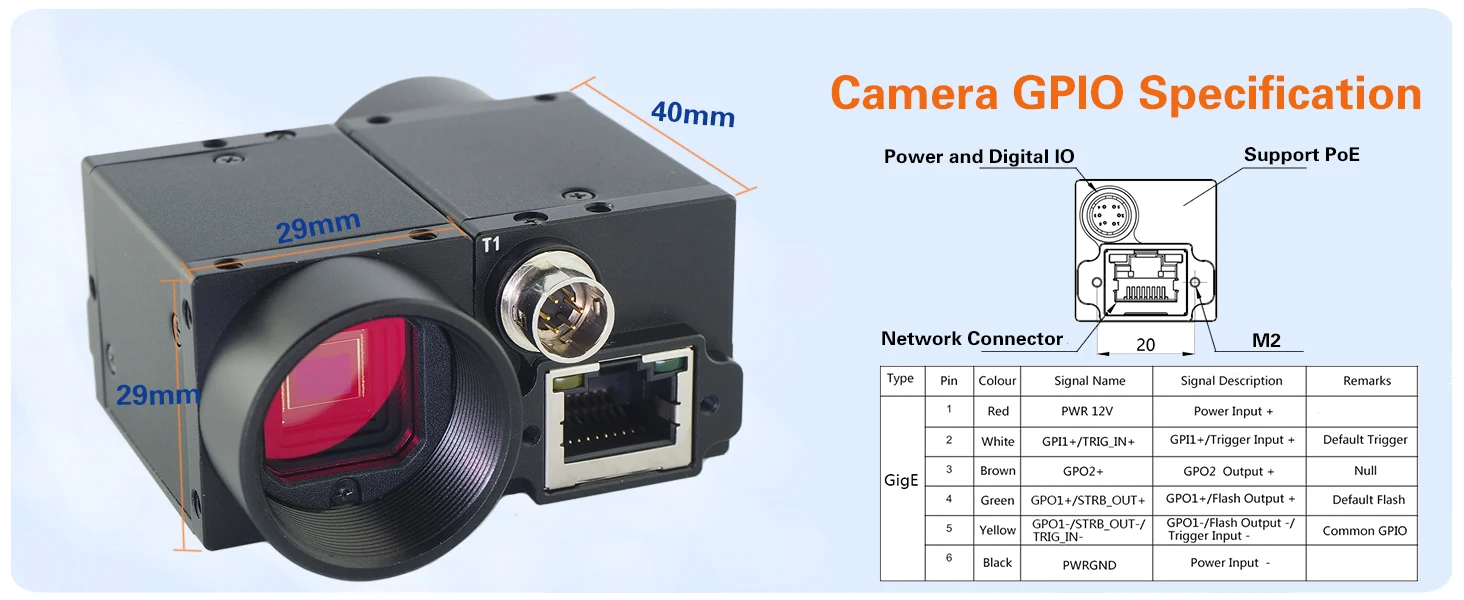

GPIO Digital Input

  x1

GPIO Digital Output

  x1

General I/O

  x1

Power Supply

  9~24 VDC ( POE is Optional )

Power Requirements

  2.5W

Vision Standard Protocol

  Windows 7/10/11 32/64bits and Linux 32/64bits

Programming Language

  GigE Vision v1.2, GenlCam

Housing Dimensions

  C/C /C#/VB6/VB.NET/Delphi/BCB/Python/Java

Lens Mount

  C- Mount

Operating Temperature

  0 – 50°C

Weight (Typical)

  75g

Function

  ROI custom resolution, Contrast and Gamma Adjustment, Saturation Adjustment,3D Noise Reduction,

  Custom Camera Name, Etc.

Machine Vision Software:
