Product Overview

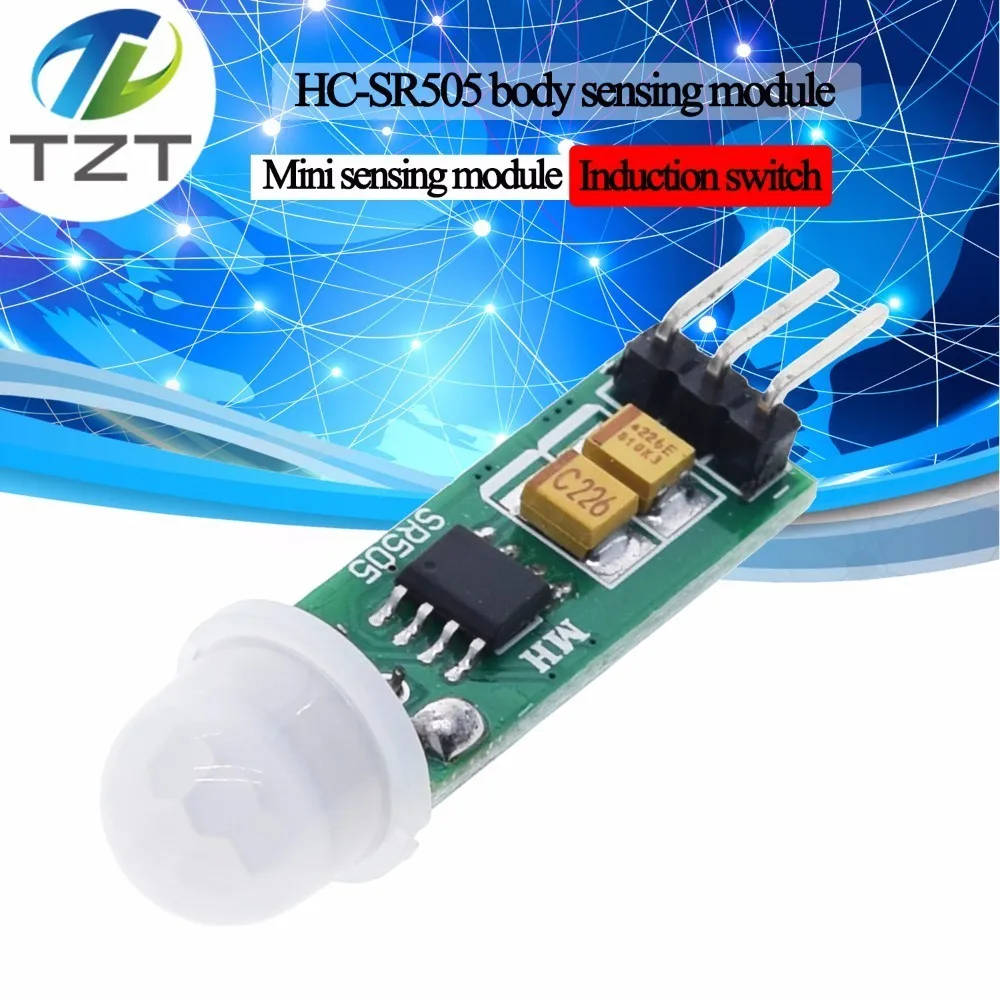

The HC-SR505 mini infrared PIR motion sensor module is designed for automatic control applications, featuring high sensitivity and reliability in an ultra-small design.
Technical Parameters
- Operating Voltage Range: DC4.5-20V
- Static Current: <60uA
- Output Level: High 3.3V / Low 0V
- Trigger: Repeatable trigger (default)
- Delay Time: Default 8S + -30% (customizable)
- PCB Dimensions: 10*23mm
- Induction Angle: <100 degree cone angle
- Induction Distance: 3 meters
- Working Temperature: -20- +80 degrees
- Sensor Lens Dimensions: Diameter: 10mm (default)
Features
- Automatic induction: outputs high when entering sensing range, automatically delays off when leaving
- Repeatable trigger: maintains high output during delay period if human activity is detected
- Wide operating voltage range: DC4.5V-20V
- Micropower: quiescent current < 50 microamps
- Output high signal: easy integration with various circuits
Applications
- Body induction lamps
- Body sensors toys
- Security products
- Industrial automation and control
- Auto-sensing of electrical equipment
- Battery-powered automatic control
