Advanced Power Monitoring for Laboratory and Educational Environments

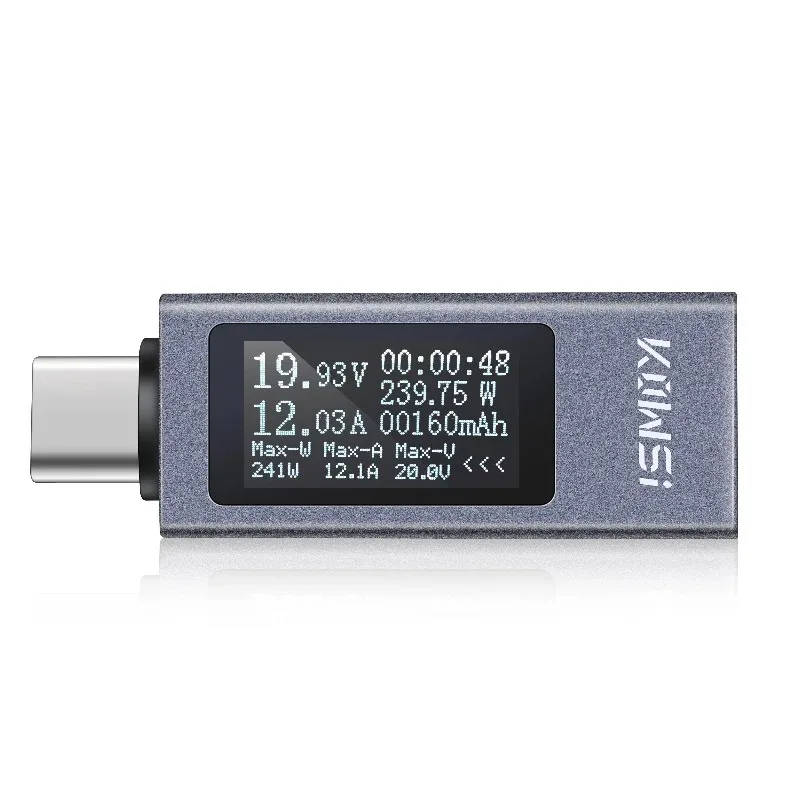

The KWS-2301C Type-C Current and Voltage Monitor is a high-accuracy power meter tester designed to provide real-time monitoring of DC power parameters, ensuring precise measurements for experiments and research projects.
Key Features:
- Simultaneous display of voltage, current, power, energy, capacity, and timing for comprehensive analysis
- High-contrast 0.77-inch OLED display for clear visibility
- Durable CNC-machined metal housing for enhanced durability and resistance to dust and drops
- Two-way current measurement and real-time charging power detection for versatile testing
- Supports fast charging protocols and is compatible with various interfaces
Technical Specifications:
| Parameter | Range |
|---|---|
| Voltage | DC 4-30V |
| Current | 0-12A |
| Timing | 0-99 hours |
| Power | 0-360W |
| Capacity | 0-99999mAh |
| Electrical Energy | 0-99999Wh |
| Ambient Temperature | Up to 50°C |
| Dimensions | 41*16*9mm |
Included in the Package:
- 1 x Type-C Power Meter Tester
