Key Features
- 1.8 inch TFT LCD display for clear and easy-to-read results
- Multi-functional: tests transistors, capacitors, resistors, diodes, and more
- Wide operating temperature range: 0-40 degrees Celsius
- CE certified for safety and quality
Specifications
| Display | 3.5*3cm TFT screen |
| Diode Range | < 4.5V |
| Capacitance | 25pF- 100mF |
| Resistance | 0.01-50MΩ |
Instructions

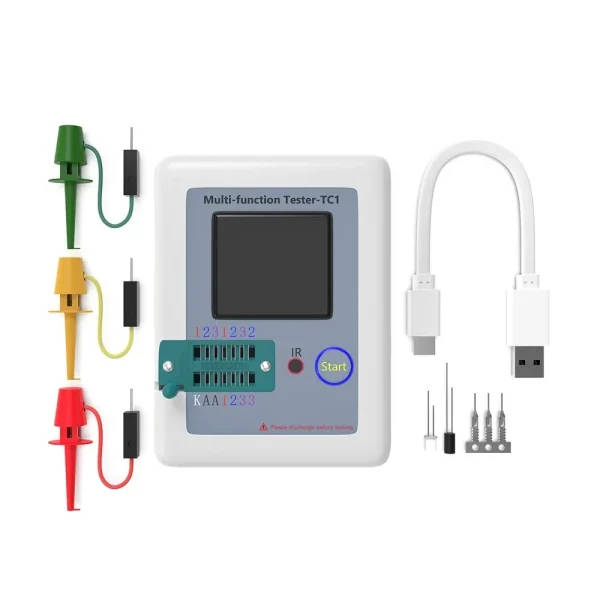

Transistor Tester
Automatic detection of NPN and PNP bipolar transistors, N-channel and P-channel MOSFETs, JFETs, diodes, and more.
IR Decoder
Supports Hitachi IR coding and displays IR waveform.
Cautions for Use
- Do not test capacitors without discharge
- Do not test online with electricity
- Do not hook three hooks onto the circuit board for testing
