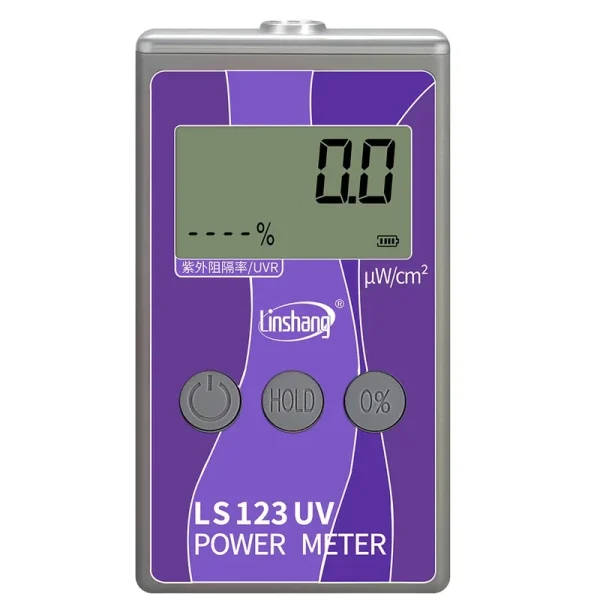

LS123 UV Power Meter: Precise Measurement for UV Blocking Materials
The LS123 UV power meter is designed to measure the UV blocking rate of various materials, including explosion-proof film, automobile heat-insulating film, solar film, and heat-insulating glass. It also measures the power density of UV radiation energy from different light sources.
Key Features
- Wide spectral response range: 260nm-380nm, with peak sensitivity at 365nm
- Automatically calculates and displays UV rejection rate
- Measures UV radiation intensity with high accuracy
- Compact and lightweight design for easy handling
Specifications
| Specification | Value |
|---|---|
| Power Range | 0-40000 μW/cm² |
| Measurement Accuracy | H<50μW/cm²：±5μW/cm², H>=50μW/cm²：±10%H |
| Spectral Response | 260nm-380nm, λp=365nm |
| Photosensitive Aperture | 10mm |
| Dimensions | 125mm * 69mm * 24.5mm (L * W * H) |
| Weight | approximately 140g (including battery) |
| Working Temperature | -20°C to 70°C |
Included Accessories
- LS123 UV Power Meter * 1
- User Manual * 1
- Certificate/Warranty Card * 1
- Packing Box * 1
