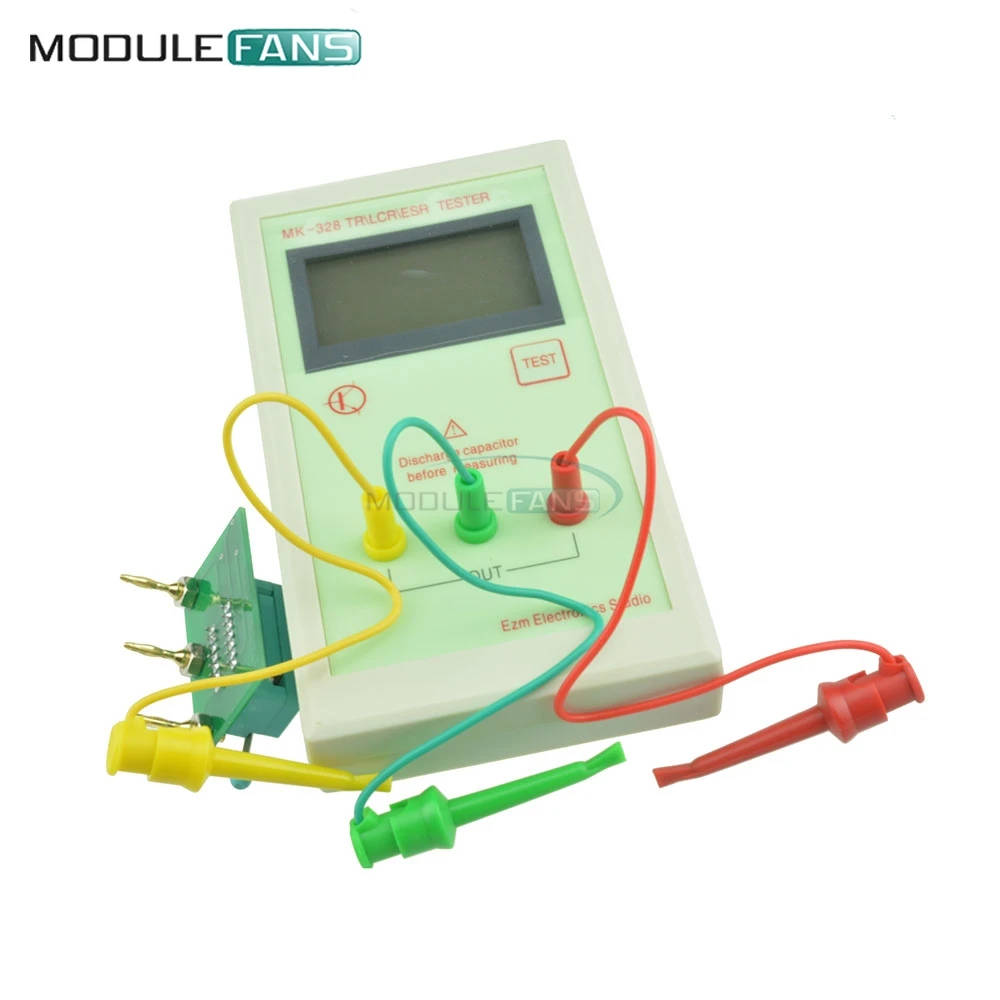

Key Features
- Utilises the latest M328 version software for enhanced functionality
- 8 MHz external crystal oscillator for improved measurement accuracy
- High precision resistors (1‰ metal film) for optimal performance
- Low power consumption LCD screen with backlight for easy reading
- Built-in 9V battery and external DC power jack for flexible power options
Technical Specifications
| Measurement Capability | Range | Resolution |
|---|---|---|
| Resistance | 0.1Ω – 50MΩ | 0.1Ω |
| Capacitance | 30pF – 100mF | 1pF |
| Inductance | 0.01mH – 20H | 0.01mH |
Automatic Detection Capabilities
- NPN and PNP bipolar transistors
- N- and P-Channel MOSFETs
- JFETs, diodes, double diodes, and thyristors
- Pin layout detection and current amplification coefficient measurement
Safety Precautions
Before measuring capacitance, ensure the capacitor is fully discharged to prevent damage to the instrument.
