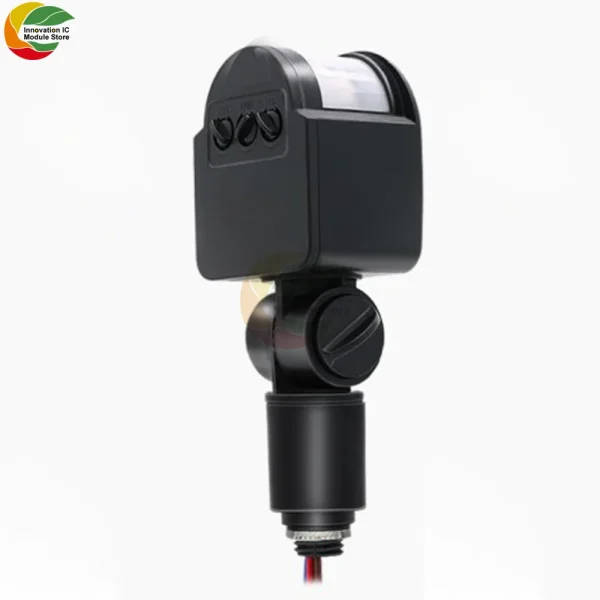

PIR Motion Sensor Switch Overview
This PIR motion sensor switch is designed for automatic lighting control, ideal for various settings including homes, parking lots, garages, schools, and commercial areas.
Key Features
- Wide working voltage range: AC85-265V
- 180° detection angle with adjustable detection distance (5-11M)
- Adjustable delay time (5 seconds to 8 minutes) and ambient light sensitivity (2-2000LUX)
- IP54 waterproof rating for outdoor use
- Low power consumption (<0.5W)
- Flame-retardant ABS material for enhanced safety
Technical Specifications
| Parameter | Value |
|---|---|
| Working Temperature | -10°C ~ +40°C |
| Working Frequency | 50/60Hz |
| Installation Height | 1.8-2.5M |
| Inspection Moving Speed | 0.6-1.5M/s |
| Working Humidity | <93%RH |
Package Contents
- 1 x Infrared PIR Motion Sensor Switch
