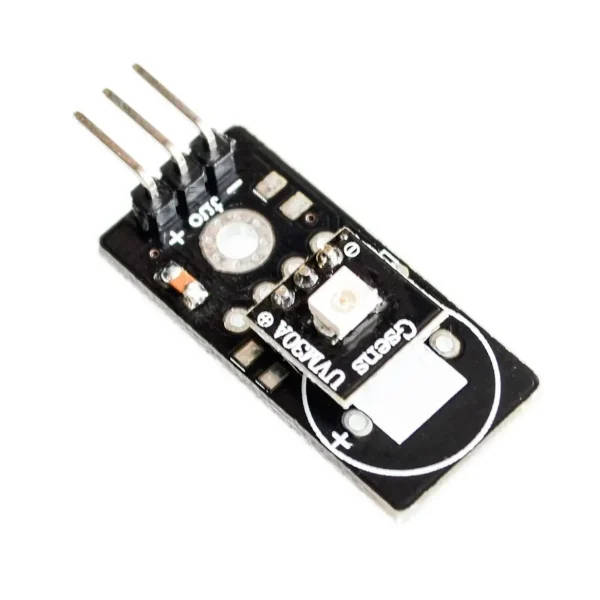

UVM-30A UV Sensor Module Features
- Compact size: 28mm x 12mm x 10mm
- Operating voltage: DC 3-5V
- Output voltage: DC 0-1V
- Test accuracy: ±1 UV INDEX
- Operating current: 0.06mA max, 0.1mA typical
- Response wavelength: 200nm-370nm
- Job stability: -20°C to 85°C
Applications
- Measuring UV Index (UVI) for high-reliability applications
- Measuring UV intensity of sunlight
- Control according to World Health Organization UV Index classification standard
Benefits
- Fast response and full interchangeability
- Patented solid polymer structure for waterproof and dustproof design
- Linear voltage signal output
- Small size suitable for mobile and portable products
