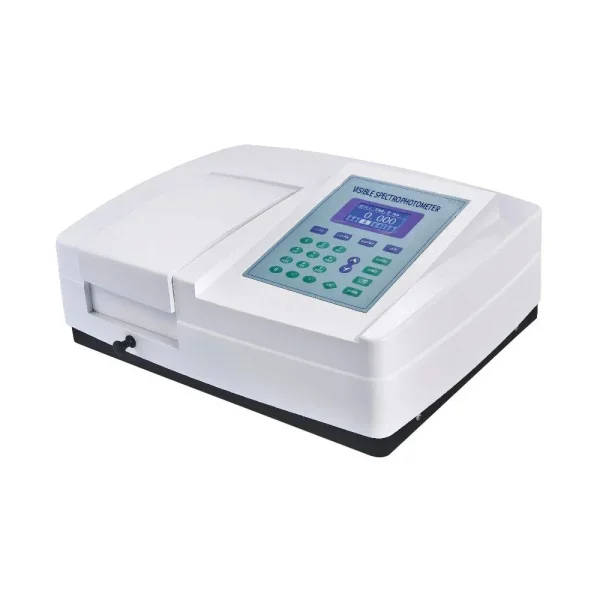

V-5600 Visible Spectrophotometer
The V-5600 visible spectrophotometer is a high-performance analytical instrument designed for precise measurement in the visible spectrum.
Key Features
- Lead screw structure for improved wavelength accuracy and resolution
- Auto-setting wavelength via arrow keys for error-free operation
- Microprocessor-controlled numerical keys for easy parameter setting
- USB port for data output and connection to PC for spectrum scanning and kinetics analysis
- Rigid die-cast aluminum base for instrument stability and reliability
- Standard curve setting for concentration analysis of unknown solutions
Technical Specifications
| Model | V-5600 |
|---|---|
| Wavelength Range | 320-1100nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | ≤0.2%T |
| Stability | ±0.002A/h @500nm |
| Stray Light | ≤0.05%T @220nm, 360nm |
| Data Output Port | USB Port |
| Display | 128*64 Dots LCD |
| Lamps | Tungsten Lamp |
| Detector | Silicon Photodiode |
| Power Requirements | AC 220V/50Hz or AC 110V/60Hz |
| Dimension | 460*360*225mm |
| Weight | 16kg |
Standard Accessories
| Item | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Spectrophotometer | 1 | set |
| 2 | 1cm Glass cuvette | 4 | pcs |
| 3 | Power cord | 1 | pcs |
| 4 | User’s Manual | 1 | pcs |
| 5 | Dust Cover | 1 | pcs |
