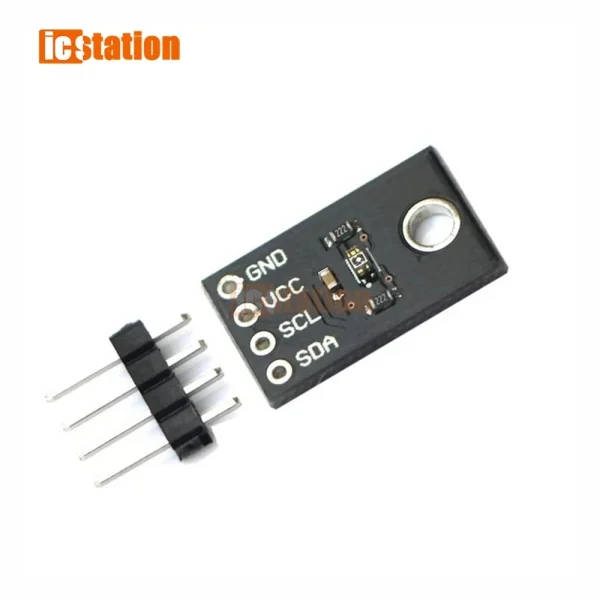

VEML6075 UVA and UVB Light Detection Sensor Module
This sensor module integrates a UVA and UVB light detection sensor, amplifiers, and analog/digital circuits into a single CMOS chip, providing a reliable measure of UV intensity and UVI.
Key Features
- Excellent UVA and UVB sensitivity
- 16-bit resolution per channel
- Low power consumption I2C protocol (SMBus compatible) interface
- Temperature compensation: -40 °C to +85 °C
- Operation voltage: 1.7 V to 3.6 V
- Compact dimensions: 2.0 x 1.25 x 1.0 mm
Applications
- Handheld devices
- Notebooks
- Consumer devices
- Industrial and medical applications
| Specification | Value |
|---|---|
| Output Type | I2C bus |
| Package | OPLGA |
