Product Specifications

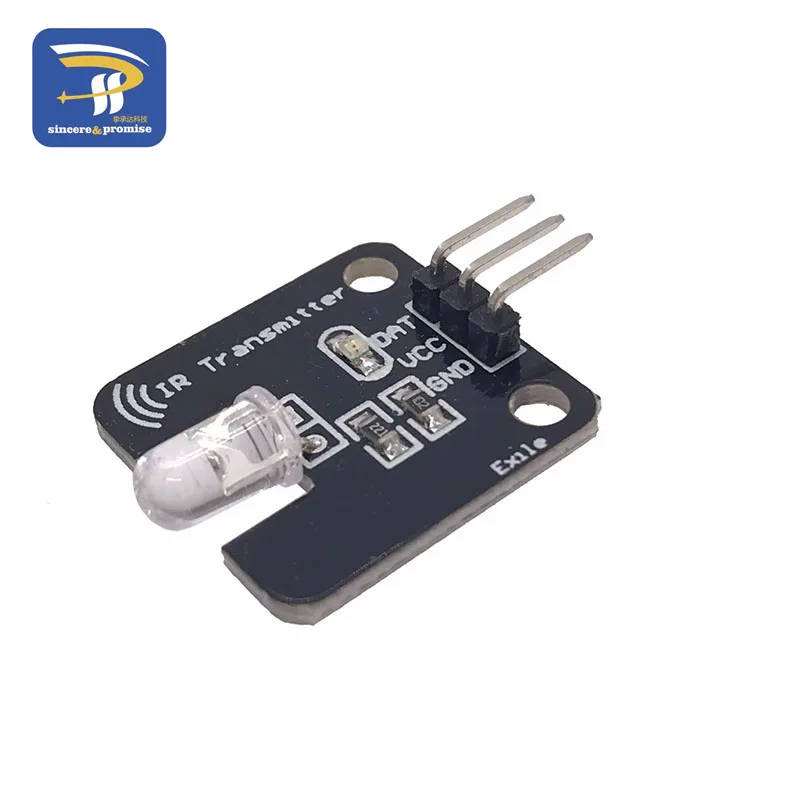

1 Way Transmitter Module
- Supply Voltage: 5V
- Operating Temperature: -25°C to +85°C
- Storage Temperature: -30°C to +100°C
- Wavelength: 940nm
- Module Size: 13.7mm x 27.8mm
- Module Weight: 1g
- Signal Type: Digital Signal
- Infrared Centre Wavelength: 850nm-940nm
- Infrared Emission Angle: 20 degrees
- Infrared Emission Distance: up to 1.3 meters (5V, 38kHz)
2 Way Transmitter Module
- Size: 28mm x 22mm
- Weight: 3g
- Voltage: 5V
- Port: Digital Level
- Modulation: Direct Transmission, No Modulation
- Launch Head: 2
- Launch Distance: 1-3 meters
- Wavelength: 940nm
IR Receiver Module
- Adopts 1838 remote control receiver with high sensitivity
- Working Voltage: 5V
- Output Form: Digital Output
- Fixing Holes: 2, with 3.1mm aperture
- Data Indicator: Yes
- PCB Size: 23.5mm x 21.5mm
Wiring Instructions
- DAT: Digital Output Interface
- VCC: 5V DC Power Supply Positive
- GND: 5V DC Power Supply Negative
