Product Overview
This multifunctional transistor tester features a high-quality 1.8 inch TFT LCD display, providing clear and accurate readings of various electronic components.
Key Features
- Automatic detection of NPN and PNP transistors, capacitors, resistors, diodes, and other components
- IR decoder supporting Hitachi IR coding and displaying IR waveforms
- Self-test with automatic calibration
- Measurement results displayed on a 160×128 TFT graphic display
- Auto power off with settable timeout
- Built-in rechargeable Li-ion battery with voltage detection
Specifications
| Display | 3.5*3cm TFT screen |
| Diode Range | < 4.5V |
| Capacitance | 25pF- 100mF |
| Resistance | 0.01-50MΩ |
| Inductance | 0.01mH-20H |
| Battery | 0.1-4.5V (with battery) |

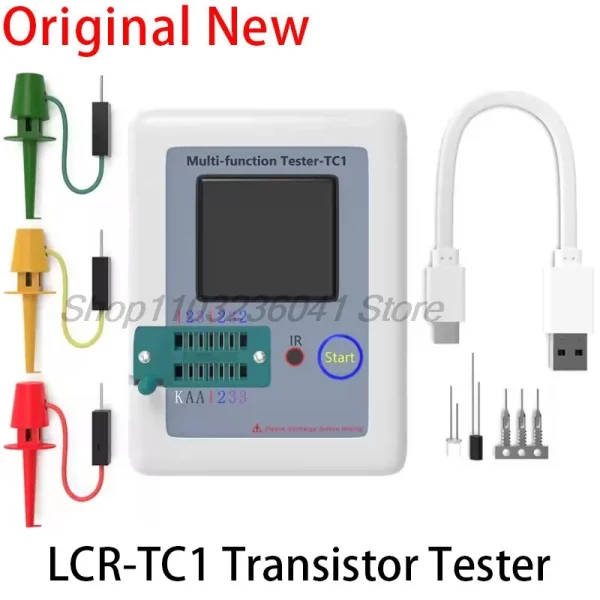

Package Included
- 1* Multifunctional TFT Transistor Tester
- 1* Electronic components set
- 1* Cable
- 3* Test hook
Cautions for Use
- Do not test capacitors without discharge
- Avoid testing live circuit boards
- Do not hook three hooks onto the circuit board for testing
- Use 5V battery or USB port to charge
