Product Overview
The HWLPM Mini10W is a portable, all-in-one laser power testing tool designed for ease of use and accuracy. It features a built-in rechargeable battery, wide spectrum coverage, high sensitivity, and fast response times.
Key Features and Specifications
- Measurement range: 0-10W
- Wavelength range: 200nm~10600nm
- Probe effective range: φ13mm
- Measurement accuracy: ±2% or less
- Resolution: 1mW
- Power supply: Rechargeable via 5V 1A charger
Usage and Safety Precautions
To ensure accurate measurements and prevent damage, avoid focusing the laser beam onto the probe. Use parallel light for measurements. The probe’s surface coating is sensitive and should not be touched or damaged.

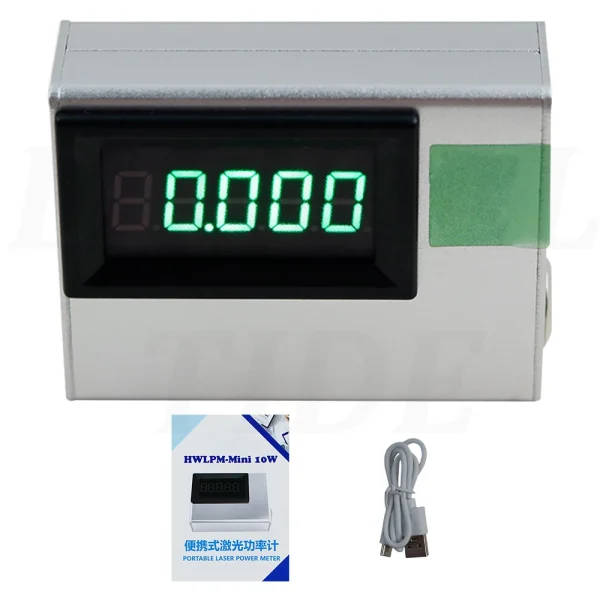

Package Contents
- Handheld Laser Power Meter x1
| Specification | Detail |
|---|---|
| Measuring wavelength range | 200nm~10600nm |
| Range | 0-10.00W |
| Measurement accuracy | ±2% or less |
| Resolution | 1mW |
