The 195 achromatic objective lens is designed for biological microscope work, including scientific research, medical testing and student specimen observation. Multi-layer-coated optical lenses provide high light transmission and clear imaging.
Achromatic objective magnification options

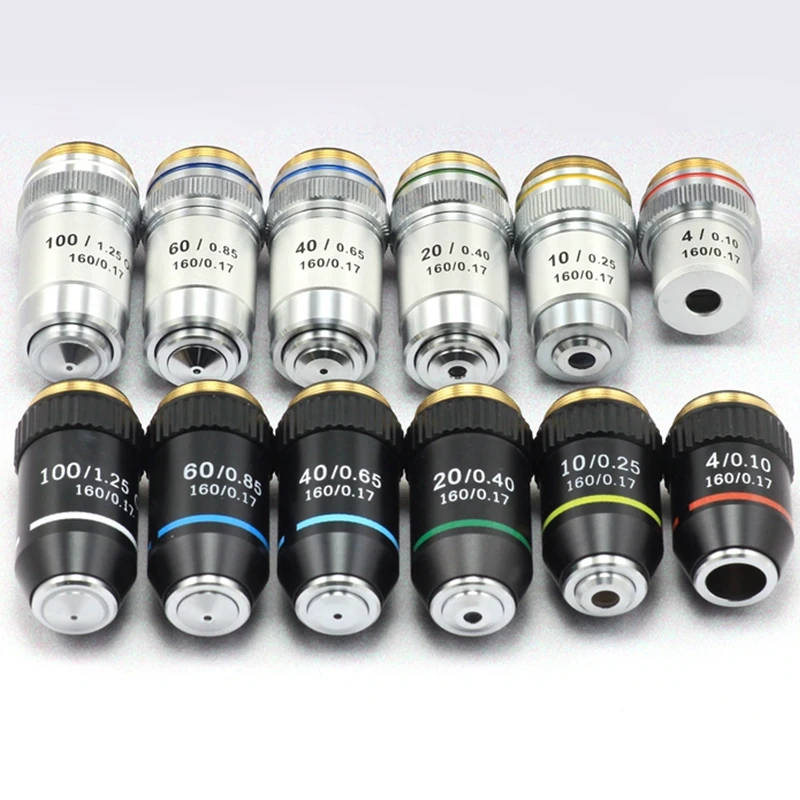

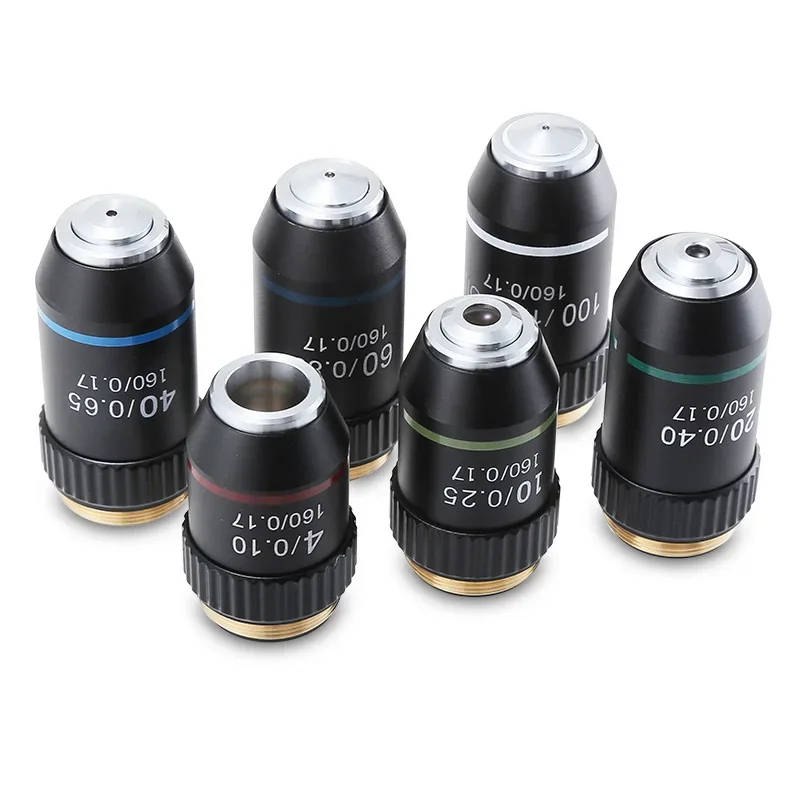

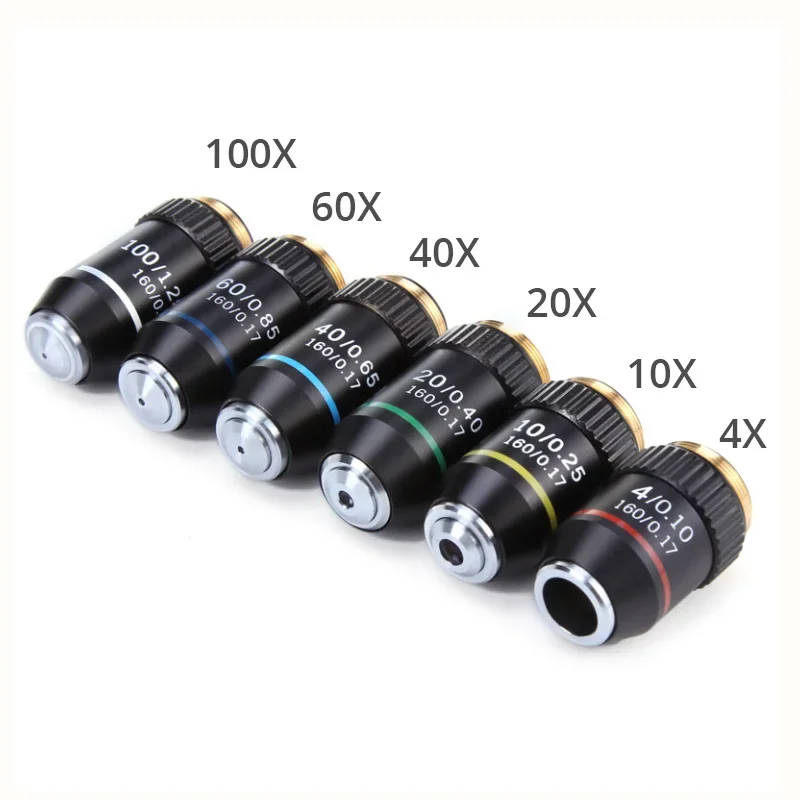

Available magnifications are 4X, 10X, 20X(S), 40X(S), 60X(S) and 100X(S,OIL). Choose the required option for your microscope and observation needs; the 100X version is specified for oil immersion.
The high-power objective design includes a spring protection device to help protect the lens and specimen during observation.
Biological microscope compatibility

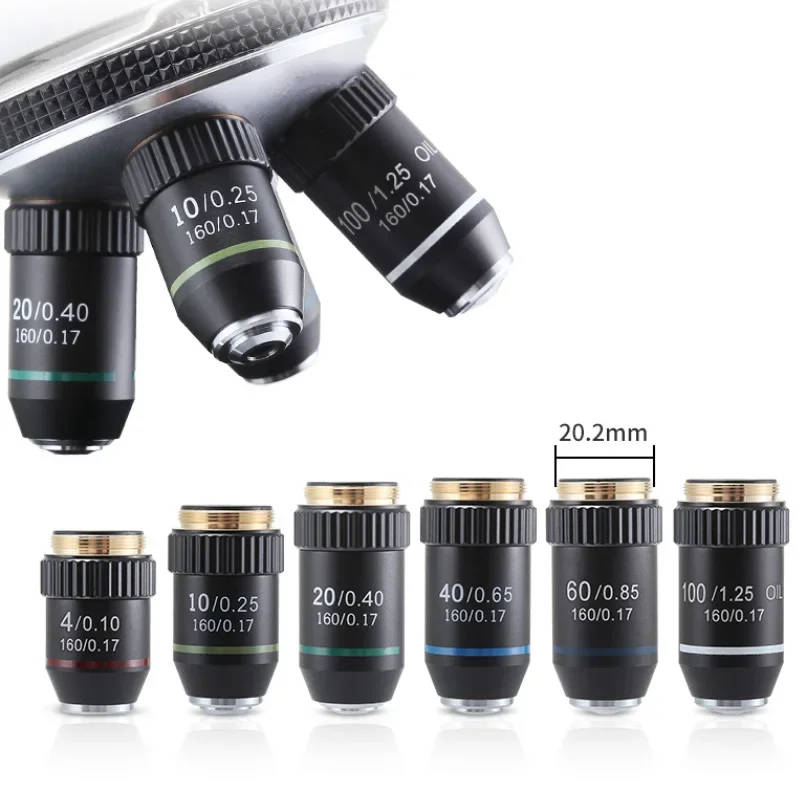

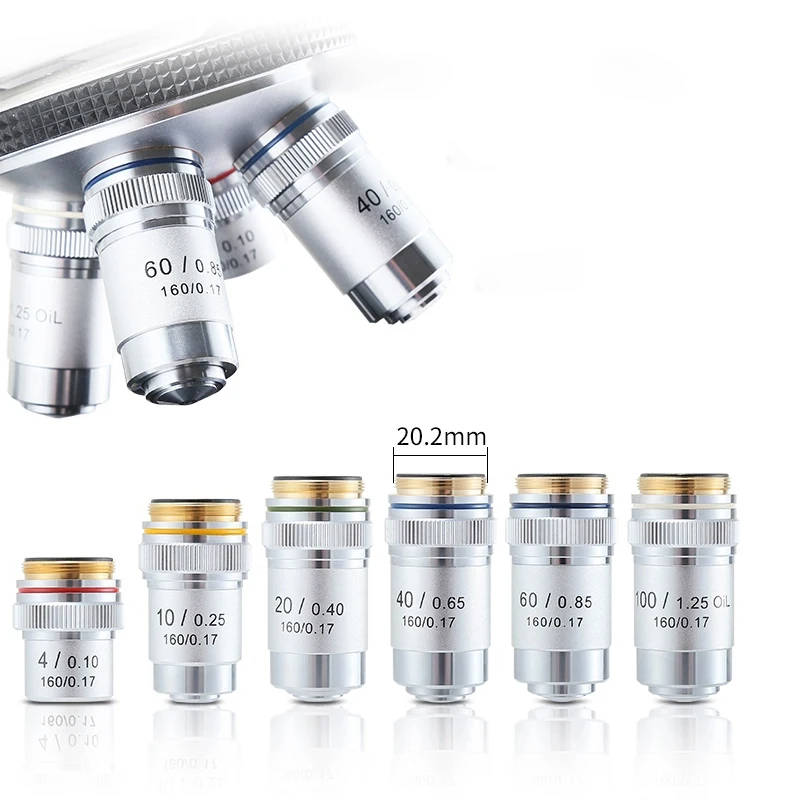

This objective uses an RMS thread interface with a stated thread diameter of 20.2mm. It is specified for a 160mm microscope tube length and a standard cover glass thickness of 0.17mm. Check these specifications against your microscope before ordering.
Construction and storage
A precision copper core supports durable construction, while the multi-layer optical coating supports light transmission. A dustproof storage box is supplied for keeping the objective protected when not in use.
Specifications
- Model: 195 Achromatic Objectives
- Magnification options: 4X / 10X / 20X(S) / 40X(S) / 60X(S) / 100X(S,OIL)
- Thread interface: RMS
- Stated thread diameter: 20.2mm
- Core material: precision copper
- Tube length: 160mm
- Standard cover glass thickness: 0.17mm
