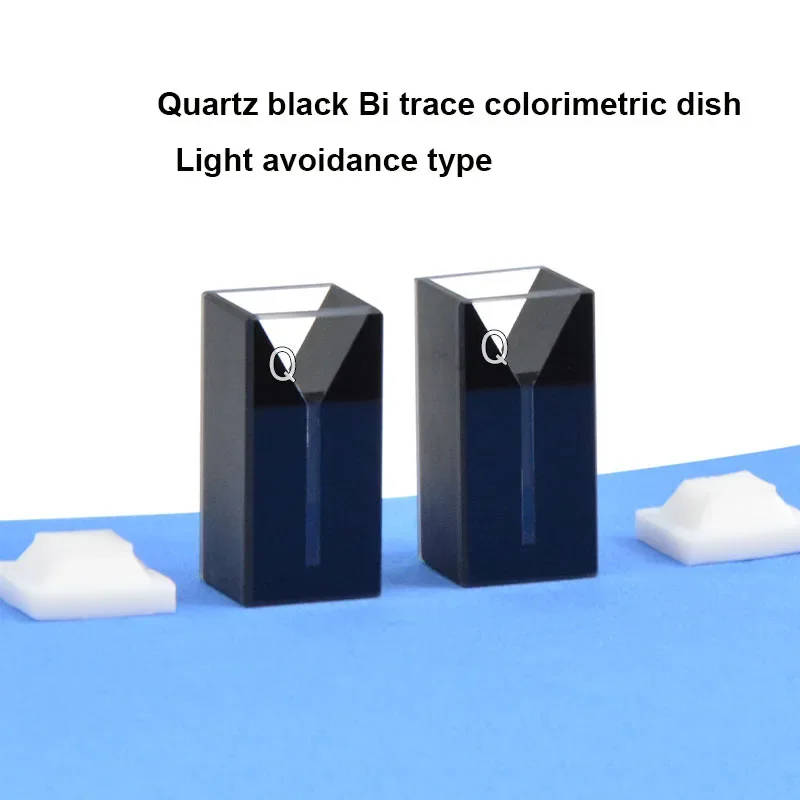

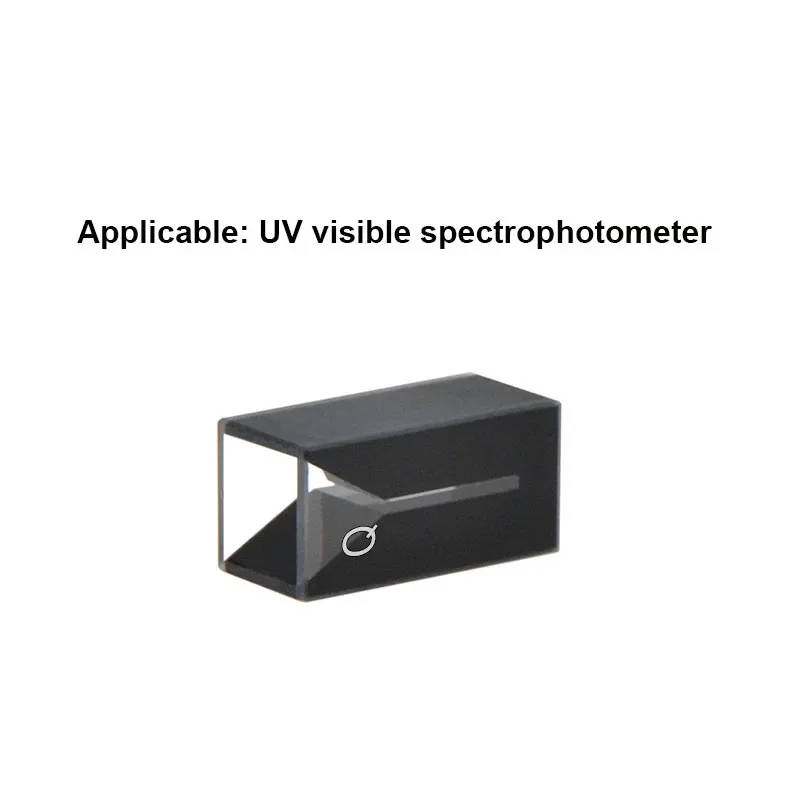

Our 2-piece quartz black wall micro colorimetric dishes are crafted from high-quality JGS1 quartz glass, ensuring durability and resistance to chemical corrosion. With a path length of 10mm and a spectral range of 200-2500nm, these dishes are perfectly suited for use with UV visible spectrophotometers.
Key Features of the Quartz Black Wall Micro Colorimetric Dishes
Design and Construction

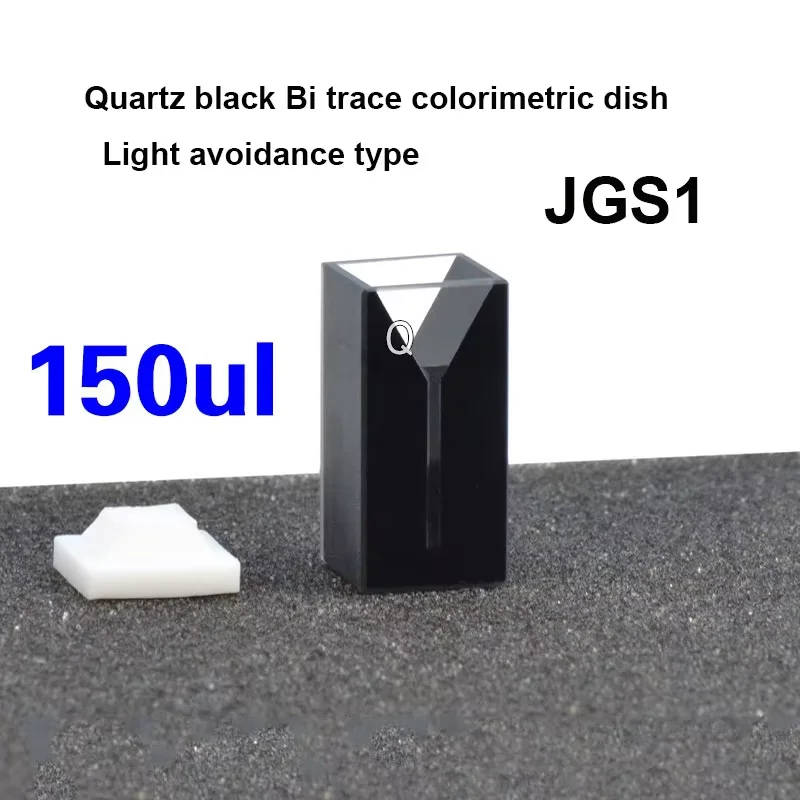

The black wall design minimises stray light, enhancing the accuracy of your measurements. Each dish has a volume capacity of 150μl and features two transparent surfaces.
Technical Specifications
| Specification | Value |
|---|---|
| Material | JGS1 Quartz Glass |

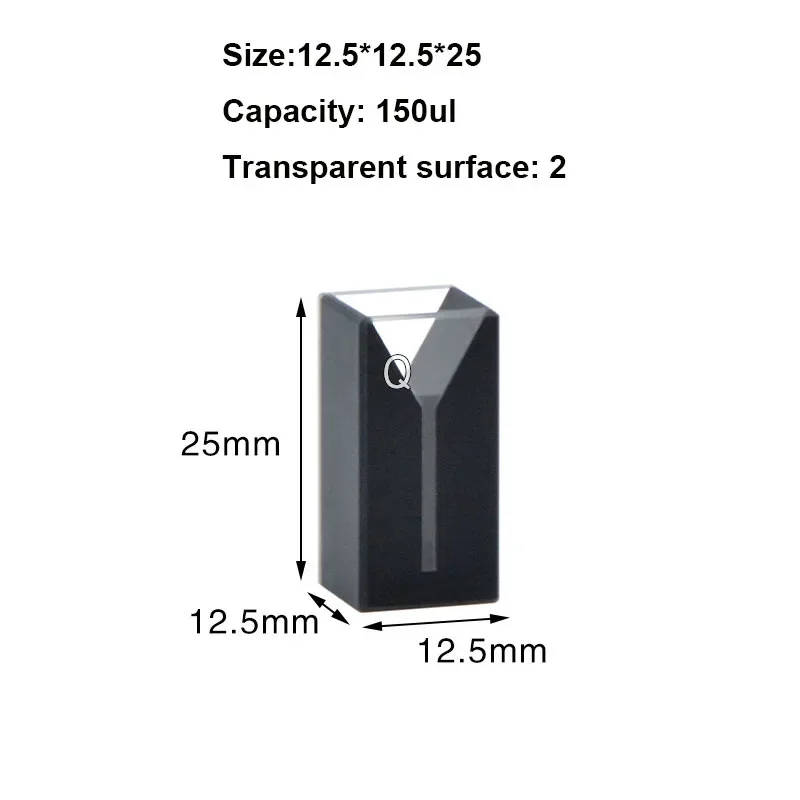

| Dimensions | 12.5×12.5x25mm |
| Path Length | 10mm |
| Spectral Range | 200-2500nm |
| Volume | 150μl |
| Transparent Surfaces | 2 |
| Slit | 1mm |
