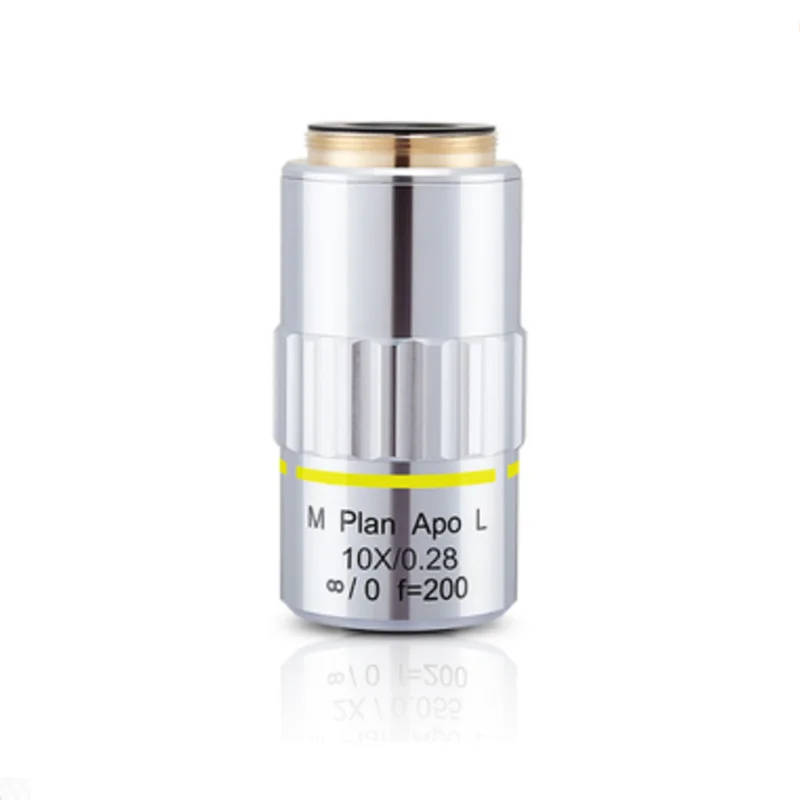

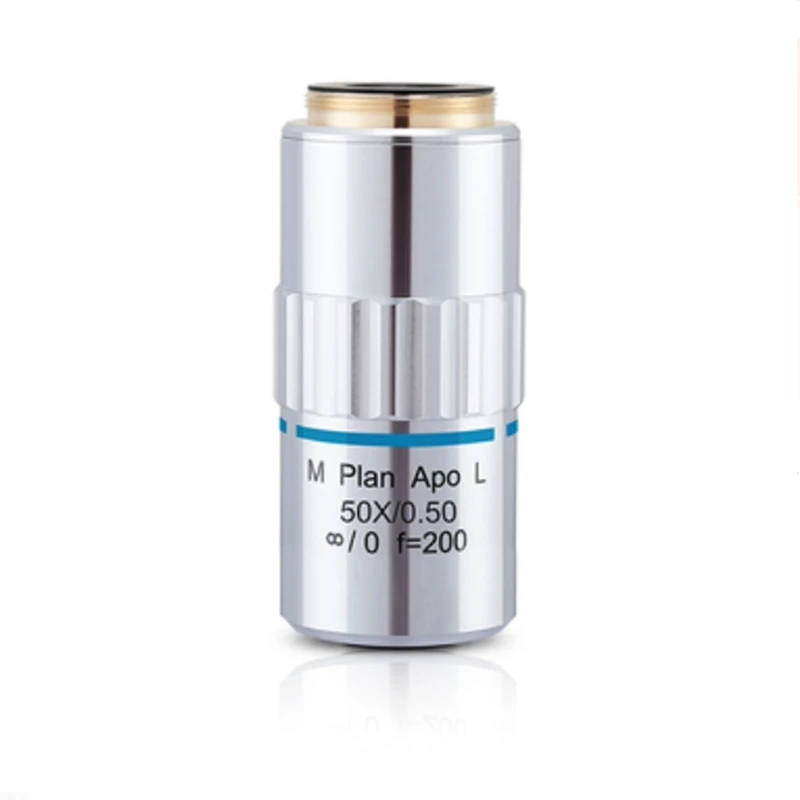

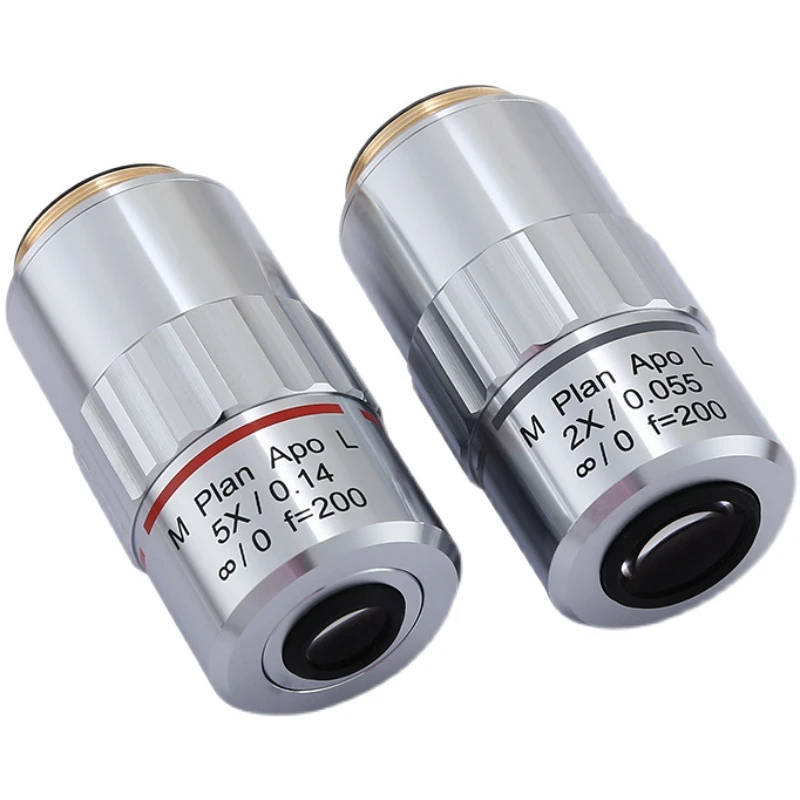

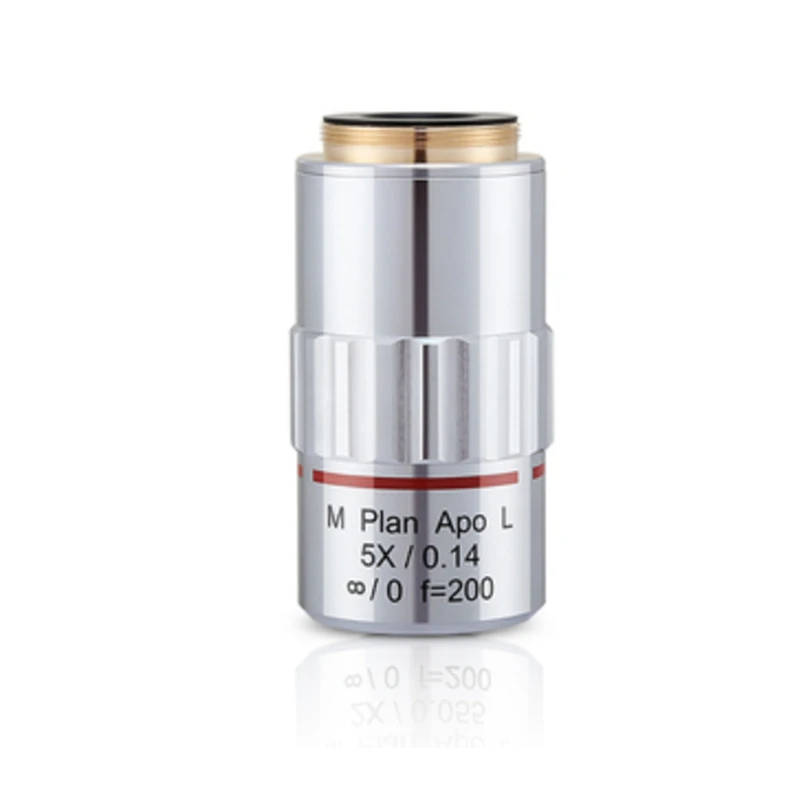

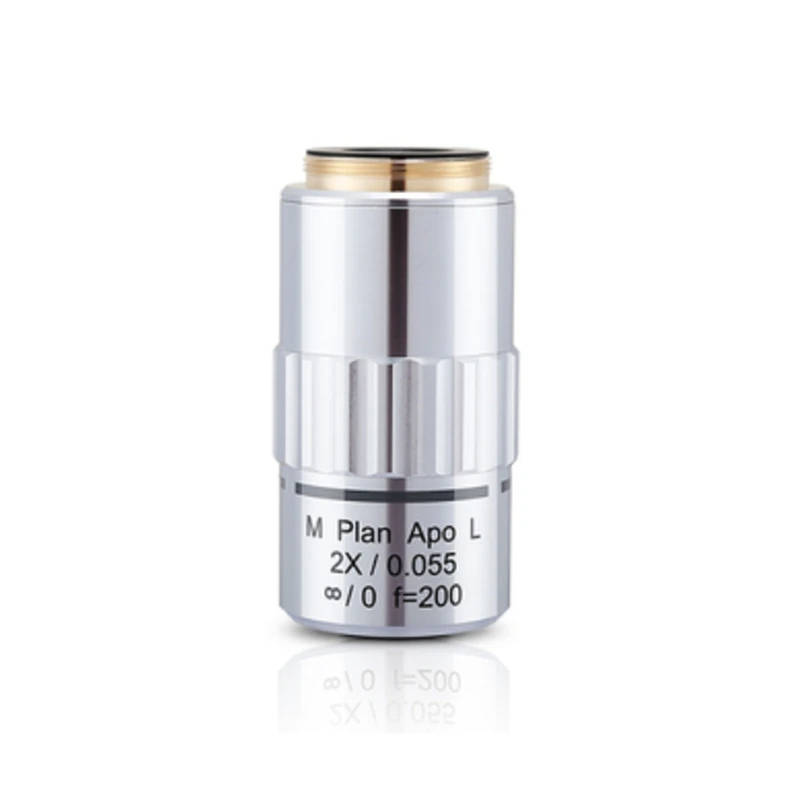

M Plan APO Microscope Objective Lens

Name: M Plan APO Microscope Objective Lens
SKU: 1005006988153273
Availability: InStock

No reviews yet

(0 reviews)

Price range: £426.99 through £1,522.99 Inc VAT

& Free Delivery

A high-quality microscope objective lens with long working distance, offering magnification options of 2X, 5X, 10X, 20X, and 50X, ideal for precise laboratory work.

Product ID: 54844

Get it Thursday 29th Oct

Buying for a lab, school or business? Need a written quote or invoice? Add your required quantity to the basket, then choose Request quote & email invoice. View basket
A customer account is required for quote requests.

This M Plan APO microscope objective lens is designed for precise laboratory work, featuring a long working distance and various magnification options including 2X, 5X, 10X, 20X, and 50X. It is suitable for metallographic applications and is known for its apochromatic quality.

Key Features of the Microscope Objective Lens

Magnification Options

The lens offers multiple magnification options: 2X, 5X, 10X, 20X, and 50X, making it versatile for different laboratory needs.

Technical Specifications

Specification	Value
Magnification	2X / 5X / 10X / 20X / 50X
NA	0.055 / 0.14 / 0.28 / 0.34 / 0.5
Working Distance	33.72 mm / 33.61 mm / 33.4 mm / 29.56 mm / 18.9 mm
Focal Length	100 mm / 40 mm / 20 mm / 10 mm / 4 mm

Hign-concerned Chemical	None
Magnification	2X / 5X / 10X / 20X / 50X
Model Number	Objective
Product Type	other
Brand Name	FUCHU
Origin	Mainland China
Certification	CE
NA	0.055 / 0.14 / 0.28 / 0.34 / 0.5
Working Distance	33.72 mm / 33.61 mm / 33.4 mm / 29.56 mm / 18.9 mm
Focal Length	100 mm / 40 mm / 20 mm / 10 mm / 4 mm
