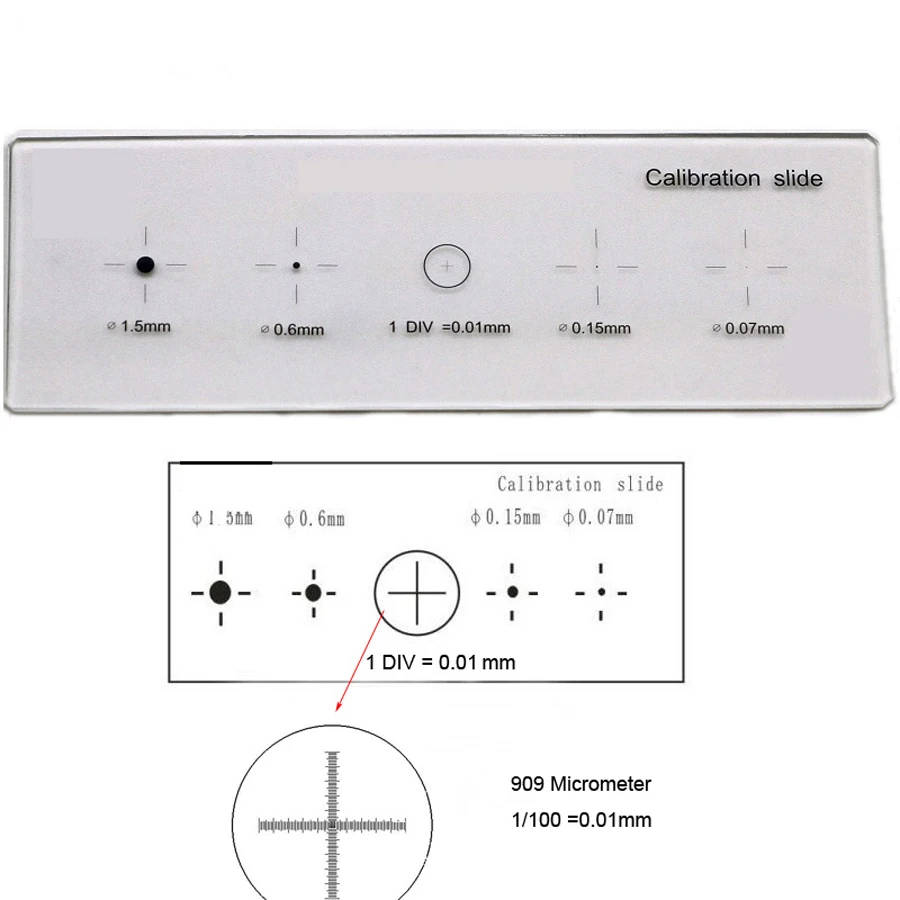

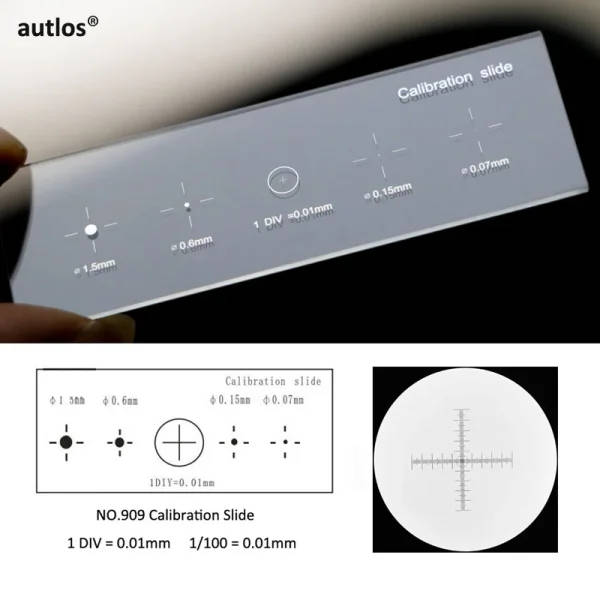

This 909 Dot Crosshair Optical Glass Microscope Calibration Slide Stage Micrometer is designed to calibrate microscopes used in educational and research institutions. It features a cross-line scale with 0.01mm divisions within a measuring range of X = 1mm and Y = 1mm, and includes four calibration dots (1.5mm, 0.6mm, 0.15mm, and 0.07mm).
Key Features of the Microscope Calibration Slide
High-Precision Measurement
The calibration slide is manufactured from high-quality optical glass, ensuring accurate and reliable measurements.
Technical Specifications
| Specification | Value |
|---|---|
| Measuring Range | X = 0.01mm x 100 = 1mm Y = 0.01mm x 100 = 1mm |
| Material | Optical Glass |
| Calibration Slide Size | 25mm x 75mm |
| 1 DIV | 0.01mm (Cross-Line Scale) |
| Four Calibration Dots | 1.5mm 0.6mm 0.15mm 0.07mm |
What Is Included
Standard Package Contents

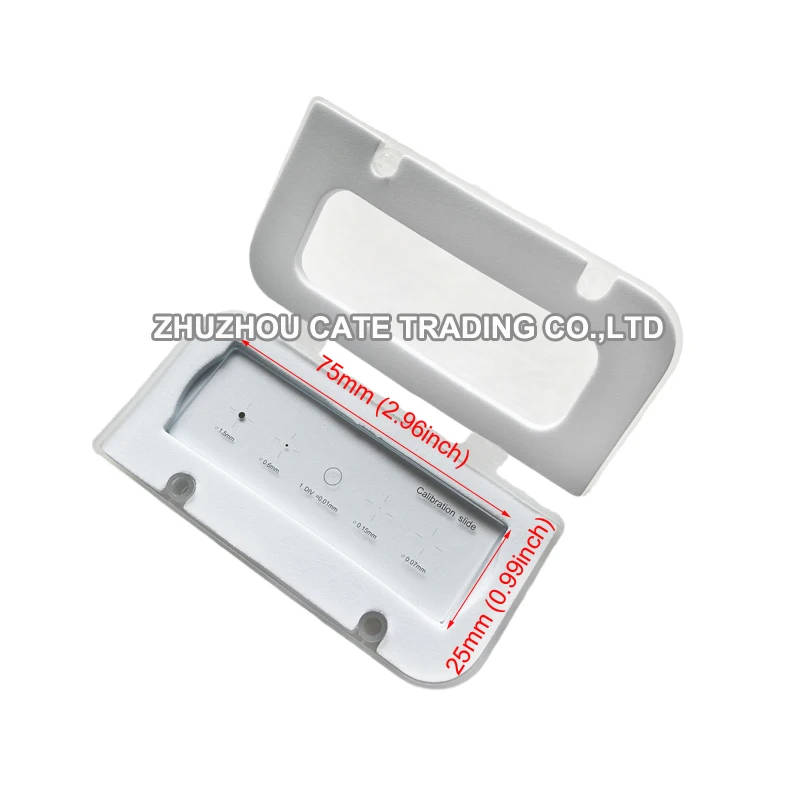

The calibration slide is supplied in a protective plastic box with sponge.
