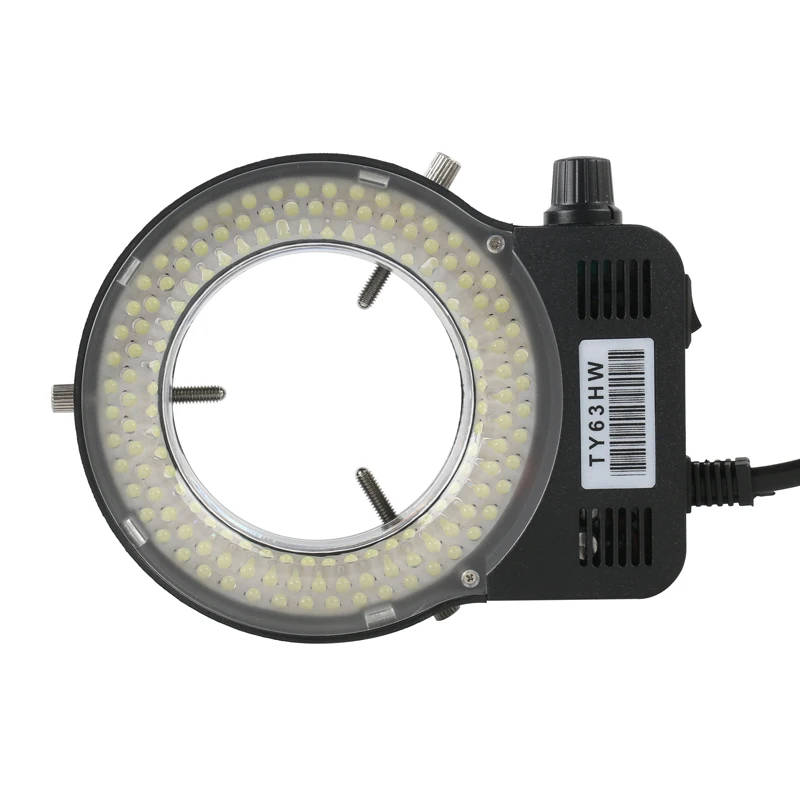

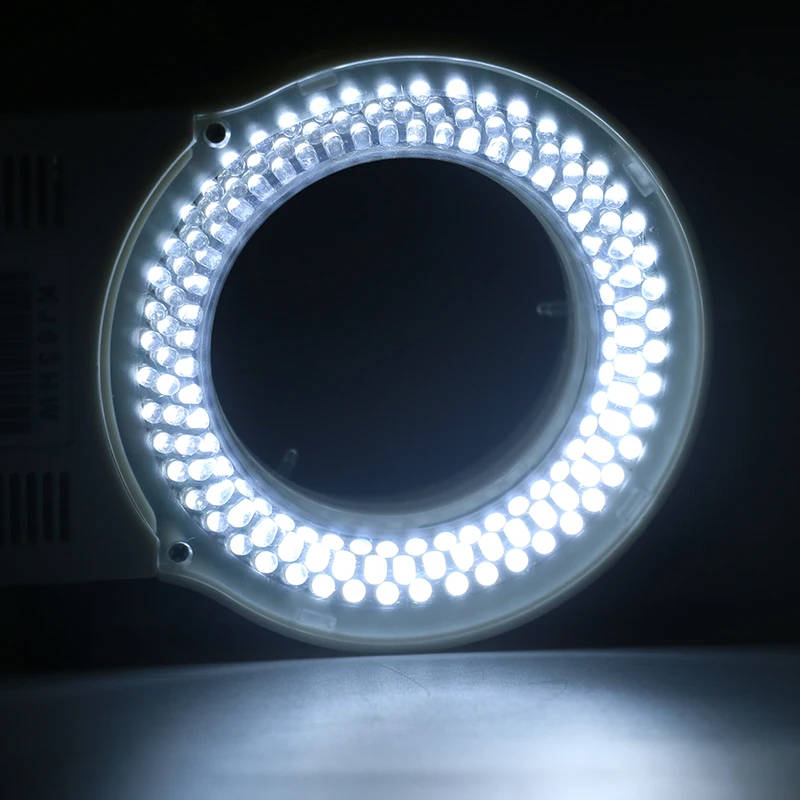

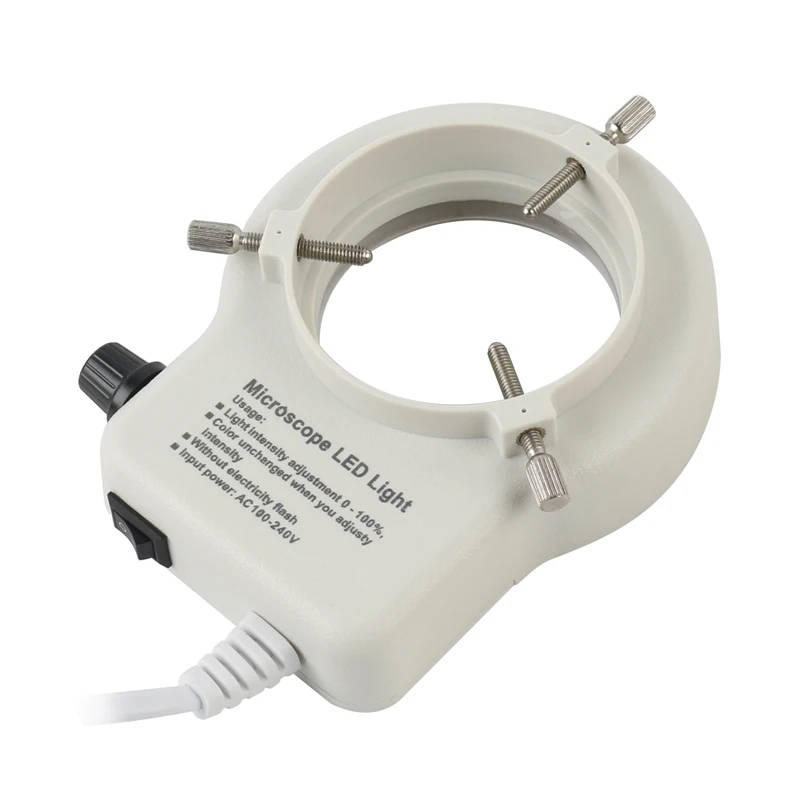

This 144 LED ring illuminator provides adjustable lighting for industrial stereo and trinocular microscopes. Its plastic housing has a 64mm inside diameter, giving you a key measurement to check against your microscope before ordering.

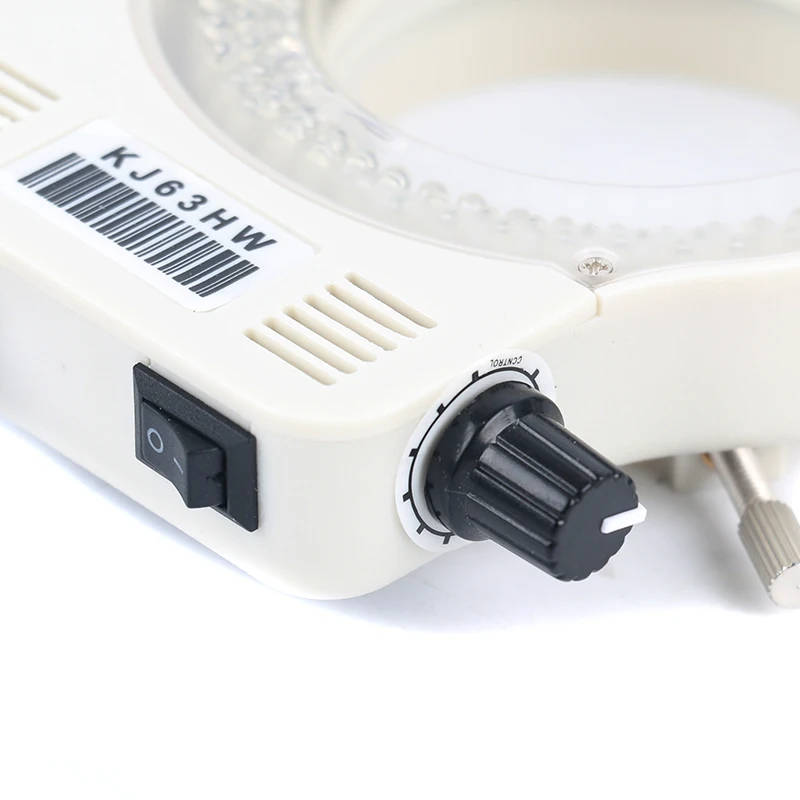

Adjustable LED light
Set the brightness from 0–100% to suit your viewing task. The high-brightness LED lamp offers energy-saving illumination for microscope work.
144 LED model specifications
- LED quantity: 144
- Input voltage: AC 90–240V
- Output voltage: DC 12V
- Maximum output power: 8.5W
- Brightness adjustment: 0–100%
- Inside diameter: 64mm
- Housing material: plastic
LED and plug options

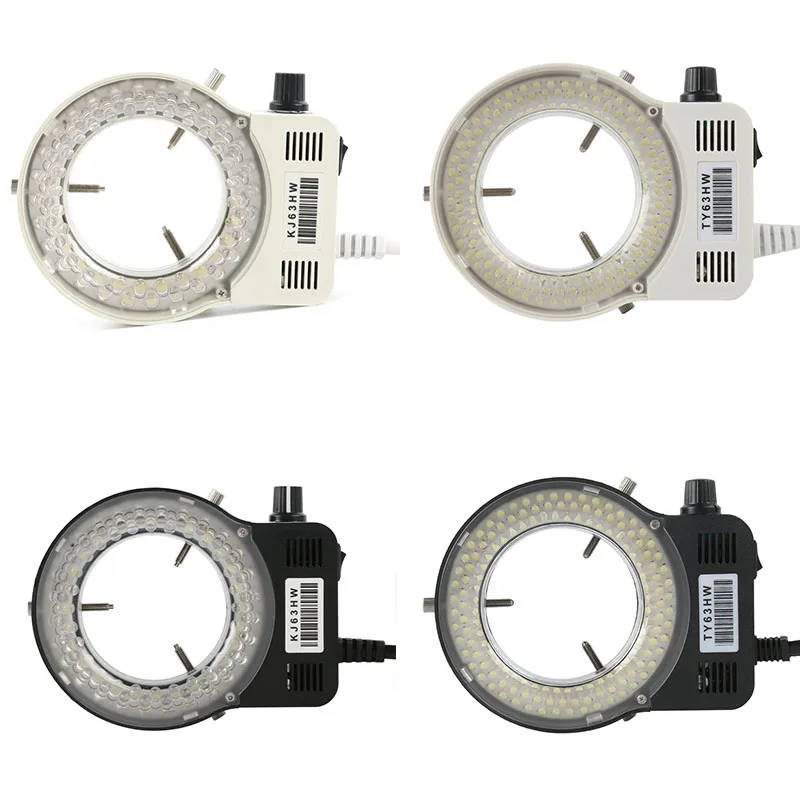

The listed options include 144 LED and 56 LED versions, each with EU or US plug choices. Select the required LED count and plug type before ordering. The specifications above describe the 144 LED model; separate specifications for the 56 LED version are not supplied.
