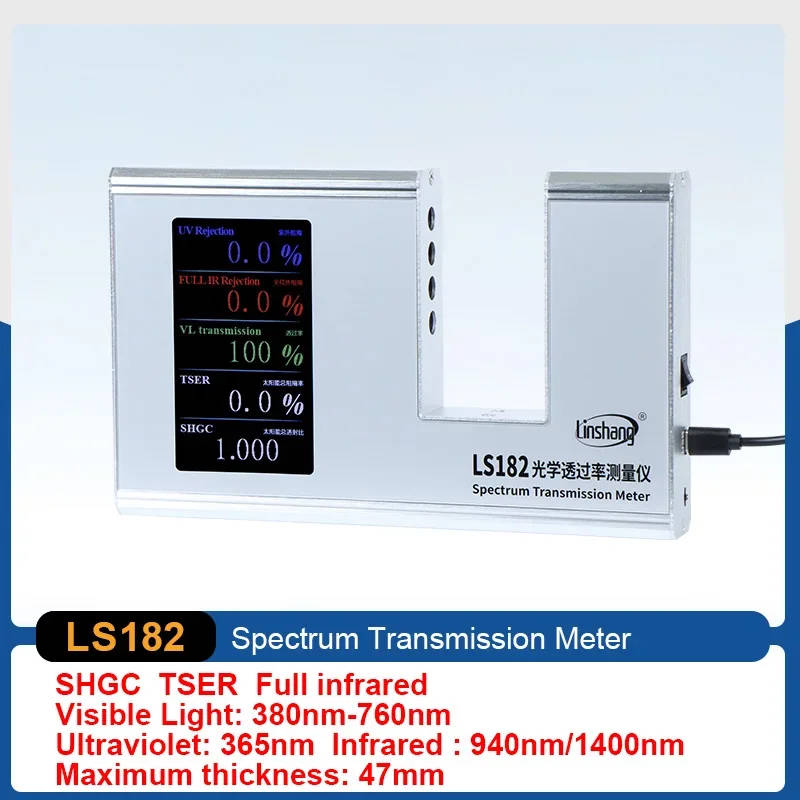

The LS182 spectrum transmission meter is designed to measure various parameters including SHGC (Solar Heat Gain Coefficient), 940nm and 1400nm infrared rejection rates, 365nm ultraviolet rejection rate, and 380-760nm visible light transmittance.
Key Features of the LS182 Spectrum Transmission Meter
Measurement Capabilities
Measures 7 parameters: 365nm UV rejection rate, 940nm/1400nm/full IR rejection rate, VLT, TSER, and SHGC. Features a parallel optical path design for measuring materials up to 47mm thick.
Technical Specifications
Performance Specifications
| Specification | Value |
|---|---|
| UV peak wavelength | 365nm |
| IR peak wavelength | 940nm, 1400nm |
| Visible light | 380-760nm |
| Resolution | 0.1% |
| Measurement accuracy | ± 2% |
Physical Specifications
| Specification | Value |
|---|---|
| Color | GRAY |
| Dimensions | 216mm × 134mm × 29mm |
| Weight | approximately 590g |
What Is Included
Standard Package Contents
LS182 spectrum transmission meter, DC5V Adapter, User Manual, Certificate/warranty card, Support pillar, Packing box.
