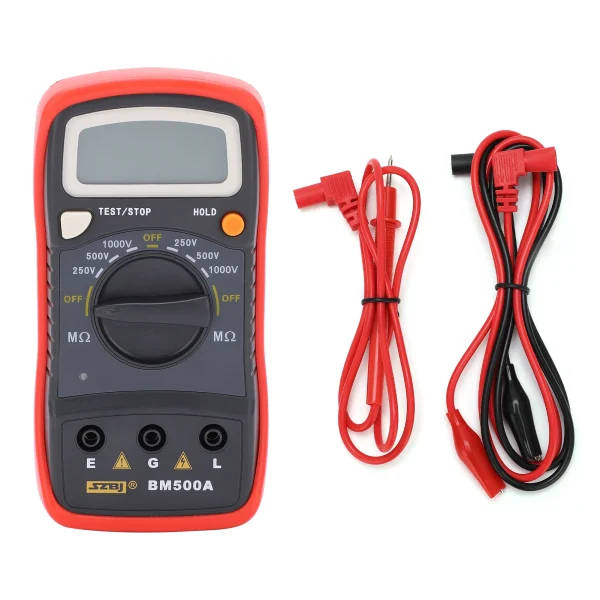

BM500A Digital Insulation Resistance Tester
The BM500A is a high-quality digital insulation resistance tester designed for accurate measurement of insulation resistance in various electrical equipment and materials.
Key Features
- Made from high-quality ABS material for durability
- LCD display with a measurement range up to 1999MΩ and a sampling rate of 2.5 times/sec
- Compact and portable design for ease of use
- Suitable for measuring insulation resistance in motors, cables, switches, and other electrical appliances
Specifications
| Specification | Value |
|---|---|
| Model | BM500A |
| Power Supply | 1 x 6F22 9V (Battery Not Included) |
| Display Mode | LCD display |
| Maximum Display | 1999 |
| Sampling Rate | 2.5 times/sec |
| Rated Voltage | 250V/500V/1000V |
| Measuring Range | 0.001~1999MΩ |
Package Includes
- 1 x Tester (Battery Not Included)
- 2 x Clips
- 1 x Test Lead
- 1 x Manual
Note: Ensure the back cover is securely in place before use to avoid electric shock.
