Key Features
- 15 color palettes for versatile thermal analysis
- Hot and cold capture with center, highest, and lowest temperature automatic detection
- 240*240 pixel thermal image resolution on a 2.4-inch display
- USB connectivity and 30,000 image capacity with BMP storage
- Supports Celsius, Fahrenheit, and Kelvin temperature measurement units
Technical Parameters
| Temperature Range | -20℃ to 550℃ |
| Thermal Response | 8~14μm |
| Display | 2.4-inch TFT LCD, 320*240 resolution |
| Charging | 5V/2A via Type-C USB |
| Battery | 3.7V/2500mAh rechargeable lithium-ion |
| Operating Conditions | -10℃ to 50℃, ≤85%RH non-condensing |

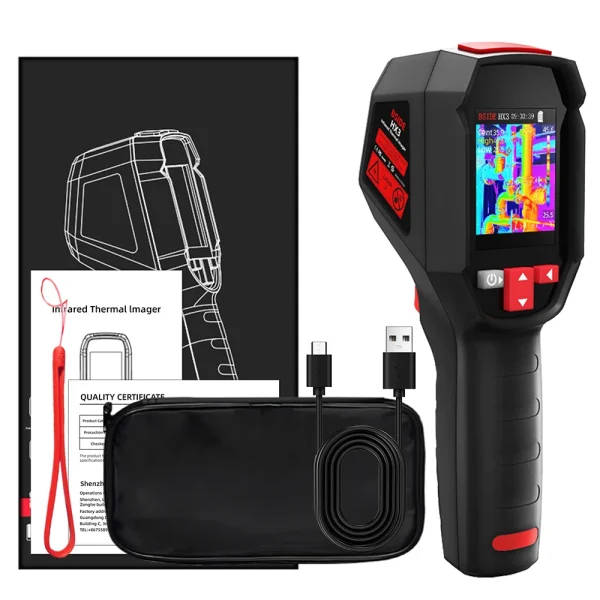

In the Box
- HX3 Device
- USB-C Cable
- Instruction Manual
- Lanyard
