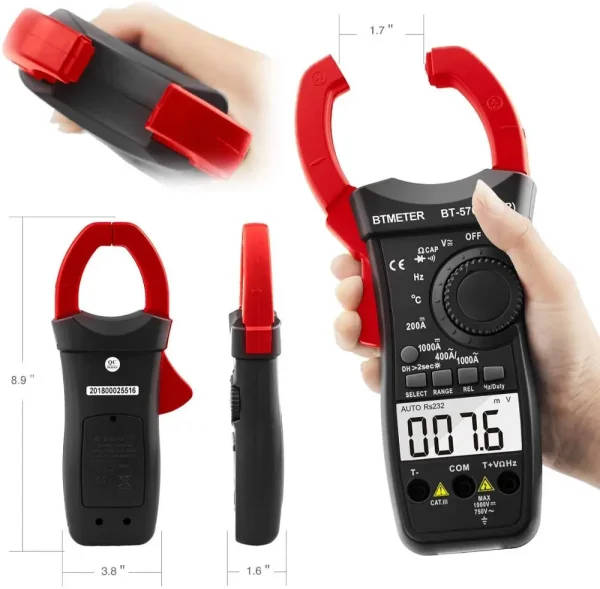

BTMETER 570N True RMS Digital Clamp Meter
The BTMETER BT-570N is a versatile and reliable digital clamp multimeter designed for troubleshooting electrical problems in a wide range of industrial and household devices.
Key Features
- Auto-ranging functionality with 6000 count display
- Measures AC/DC current, AC/DC voltage, resistance, continuity, transistor, and diodes
- True RMS for accurate measurements
- Inrush current test capability
- Backlight LCD display for improved visibility
- CAT IV 600V / CAT III 1000V certification for safe operation
- Data hold, MAX/MIN, and relative value functions
- Continuity test and diode test
- Low battery indication and auto power off
Technical Specifications
| DC Voltage | 600mV~1000V |
| AC Voltage | 600mV~750V |
| DC Current | 200A~1000A |
| AC Current | 200A~1000A |
| Resistance | 600ohm~60Mohm |
| Capacitance | 9.999nF~99.99mF |
| Frequency | 9.999Hz~9.999MHz |
| Duty Cycle | 0.1%~99.9% |
| Temperature | -20℃~-1000℃ (-4℉~1832℉) |
Included Accessories
- BTMETER BT-570N Digital Clamp Multimeter x1
- Test Leads (Red and Black) x2
- Temperature probe x1
- User Manual (English) x1
