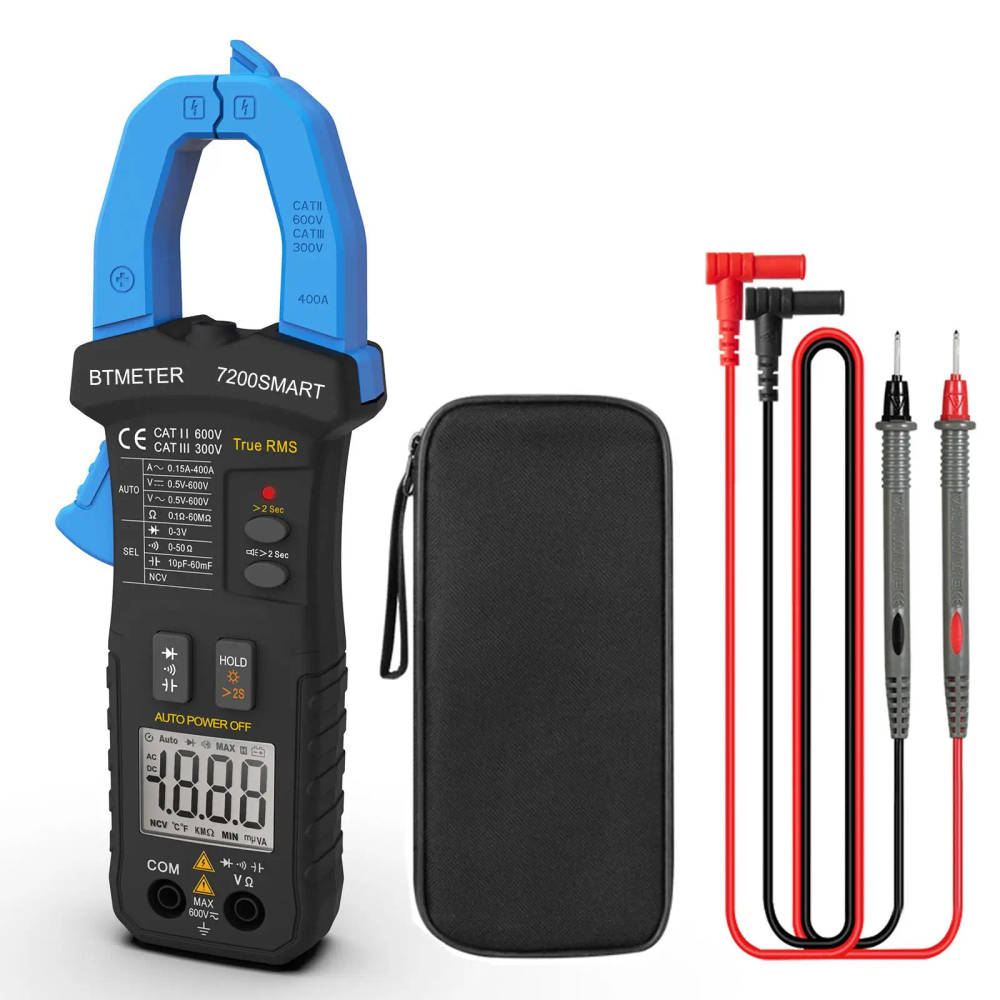

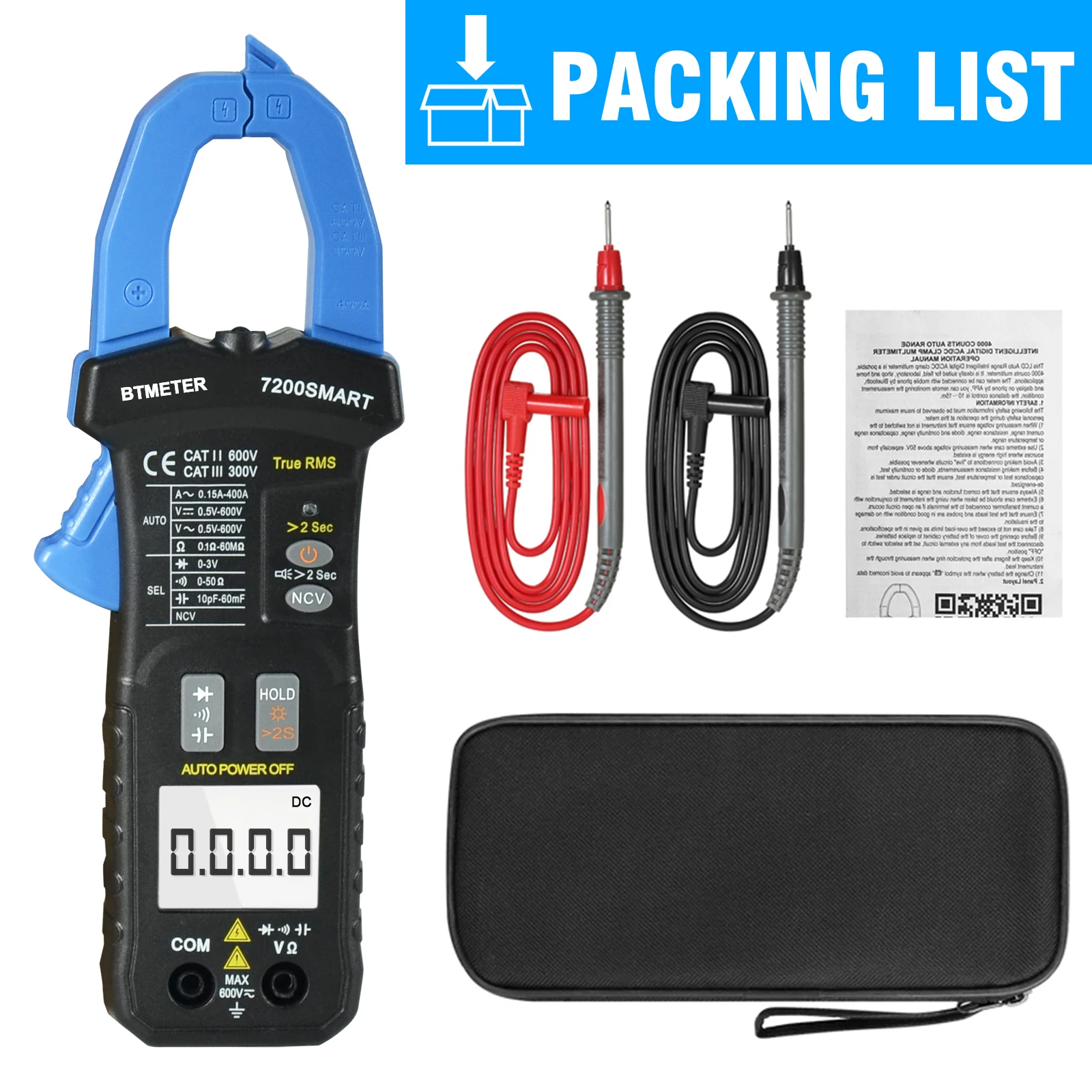

BTMETER 7200SMART True RMS Clamp Meter
Product Highlights
- Intelligent Auto Selection: automatically recognises AC/DC voltage, AC current, and resistance, simplifying operation.
- High Precision True RMS: 6000 counts LCD display with ±1.5% AC voltage accuracy, supporting 60A/400A high current measurement.
- Safe and Reliable: CE certified and compliant with IEC1010 double insulation standard, with CAT II 600V over-voltage protection.
- Non-contact detection: NCV function safely locates energised lines to avoid electric shock risk.
Core Features
| Measurement Function | Range | Accuracy | ||||
|---|---|---|---|---|---|---|
| Voltage (DC) | 0-600V | ±2.5% | Voltage> | Voltage (AC) | 0-600V | ±1.5% (True RMS) |
| Current (AC) | 0.15-400A | ±3.0% (True RMS) | ||||
| Resistance | 0-60MΩ | ±1.0% | ||||
| Capacitance | 0-60mF | ±5.0% |
Intelligent Features
- Auto range: automatically optimises measurement range.
- Data hold (HOLD): locks current reading for recording.
- Backlight display: clear readings in low-light environments, with LED illumination.
Portable Design
- 26mm large diameter jaws for measuring thick cables.
- Compact body (207×75×37mm) and lightweight (280g) for field work.
Application Scenes
- Industrial maintenance: motor and distribution cabinet current monitoring, circuit troubleshooting.
- Electronic maintenance: circuit board resistance, capacitance, and frequency analysis.
- Family DIY: socket voltage detection, electrical repair.
