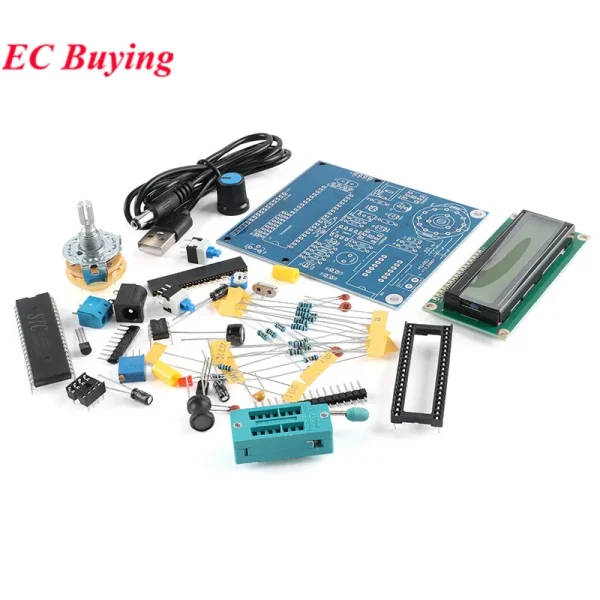

Capacitance and Inductance Tester DIY Electronic Kit
This educational DIY kit is designed to enhance students’ and electronics enthusiasts’ understanding of circuit assembly and measurement techniques, aligning with curriculum requirements for electronics and physics.
Key Features
- Durable, transparent acrylic enclosure for protection and visibility
- Multi-functional measuring instrument for accurate capacitance, inductance, and frequency measurements
- High-contrast LCD display for clear, precise readings
- Rotary selector for easy function switching
- Measures non-polarized capacitance, polarized electrolytic capacitance, inductance, and frequency with high accuracy
Specifications
| Parameter | Range |
|---|---|
| Non-polar capacitance | 1pF – 2200nF |
| Polarized capacitance | 1μF – 12,000μF |
| Inductance | 1μH – 1H |
| Frequency | 20Hz – 400kHz |
| Power supply voltage | DC 5V (USB-powered) |
| PCB board dimensions | 91mm x 80mm |
| Enclosure dimensions | 106mm x 91mm x 28mm |
Safety Guidelines and Usage
- Use a stable DC 5V power supply to prevent damage
- Ensure all switches are in the off position before powering on to avoid electrical shock
- Adjust the potentiometer for accurate, reliable readings
- Select the correct measurement range for the component being tested
- Observe polarity when measuring electrolytic capacitors and frequency to ensure accurate results
