Product Overview

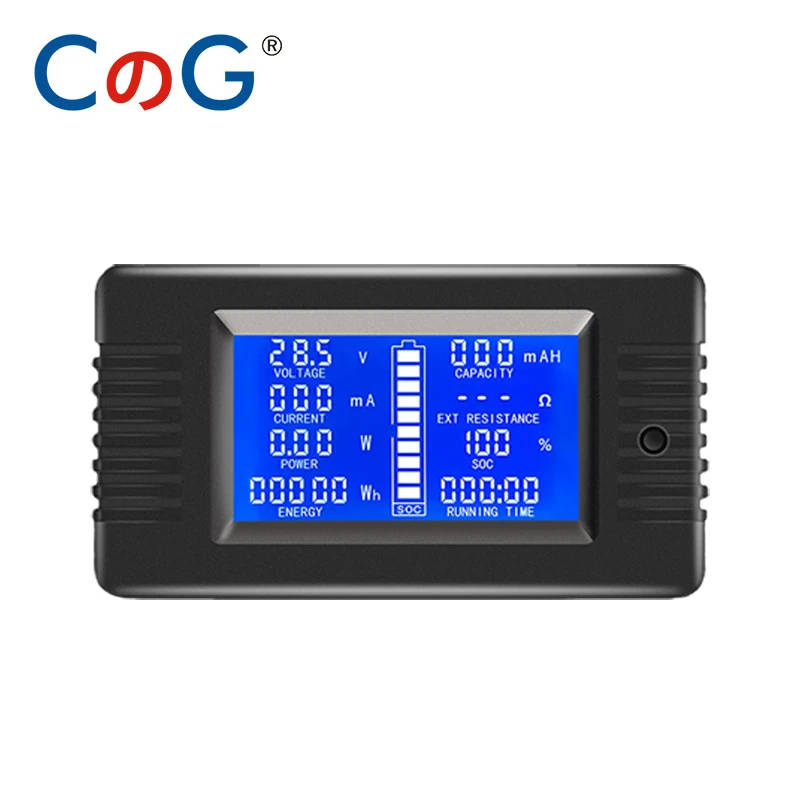

This versatile 9-in-1 digital multimeter is designed for laboratory and educational settings, providing precise measurements of various electrical parameters, including voltage, current, power, impedance, and energy consumption.
Key Features
- Single LCD screen displays 9 measurement functions for ease of use
- High precision chip control ensures accurate and reliable measurements
- Easy installation with push-on terminals for safe and secure connections
- Wide measurement ranges: 0-200V, 0-500A, 0-20000W, and more
- High accuracy: ±1% for reliable results
Technical Specifications
| Parameter | Measurement Range | Display | Min. Resolution | Accuracy |
|---|---|---|---|---|
| Voltage | 0-200V | <10V: 9.99V; <100V: 99.9V; ≥100V: 199V | 0.01V | ±1% |
| Current | 0-500A | <1A: 999mA; <10A: 9.99A; <100A: 99.9A; ≥100A: 199A (using FL-15 Shunt) | 1mA | ±1% |
| Power | 0-60000W | <10W: 9.99W; <100W: 99.9W; <1000W: 999W; <10000W: 9.99kW; ≥10000W: 19.9kW | 0.01W | ±1% |
Package Contents
- 1 x CG 500A Digital Multimeter
- 1 x FL-15 DC 500A Shunt
- 6 x Connection Wires
- 1 x Instruction Manual
