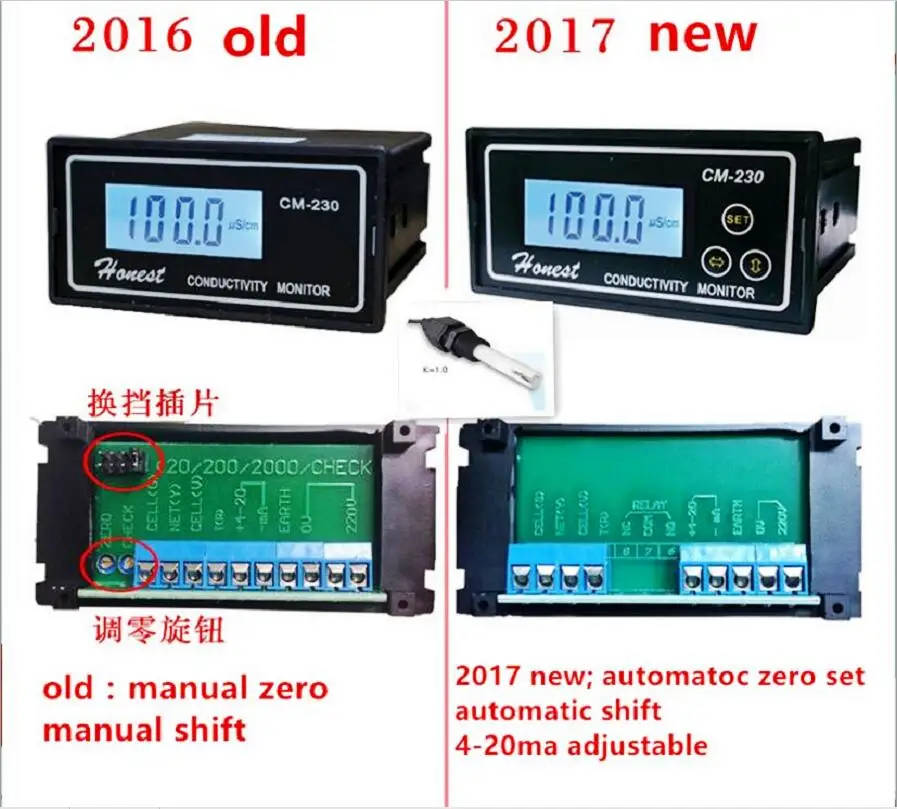

CM-230 Conductivity Meter for Pure Water and Aqueous Solutions
The CM-230 is designed for continuous measurement and monitoring of conductivity in pure water and various aqueous solutions. Its robust design and temperature drift compensation ensure accurate readings, making it ideal for applications in ion exchange, reverse osmosis, and other water treatment systems.
Key Features and Specifications
- Measuring range: 0 to 1999 μS/cm with automatic range switching
- Temperature compensation: Automatic, 0 to 60°C, with a compensation coefficient of 2.0%/°C
- Display: 3½ digit LCD with backlight for direct reading of conductivity values
- Measurement accuracy: ±2% (F·S)
- Electrode configuration: 1.00 cm-1 plastic platinum black electrode with 4-pin pipeline threaded connection and 5m wire length
- Optional 4-20mA signal output with adjustable upper limit
- Power supply: AC220V ±10%, 50Hz
Technical Specifications
| Parameter | Specification |
|---|---|
| Electronic unit size | Face frame size: 96 × 48 (mm), Hole size: 91 × 45 (mm), Instrument depth: 100 (mm) |
| Product testing based on | JB/T6855 |
