Accurate Earth Resistance Measurement
The DY4100 Digital Earth Ground Resistance Tester is designed to provide accurate and reliable measurements of earth resistance and voltage. Its robust construction and dust and wet proof structure make it ideal for outdoor use.
Key Features
- Large screen display with clear writing for easy reading
- Digital display with low energy consumption
- High accuracy and quick detection
- Three gear position measurement for versatility
- Overload protection and double protection for safe operation
- Fast response measurement (approximately 5 seconds for earth resistance and 2 seconds for grounding voltage)
- Protective cover design for durability
- Battery compartment design for easy battery replacement
Specifications
| Specification | Value |
|---|---|
| Material | Plastics |
| Battery Model | 6 x 1.5V (R6AA) and 1 x 12V (23A) |
| Measurement Range | 0.5 MΩ |
| Earth Ground Resistance | 0/20/200/2000Ω ± (2%+3) |
| Earth Voltage | 0~30V ± (3%+5) |
| Resolution | 0.01Ω |
| Item Size | 200 x 200 x 270mm |
| Item Weight | 1500g |
Note: Batteries are not included in the shipment.
Packing List
- 2 x Auxiliary Earth Bar

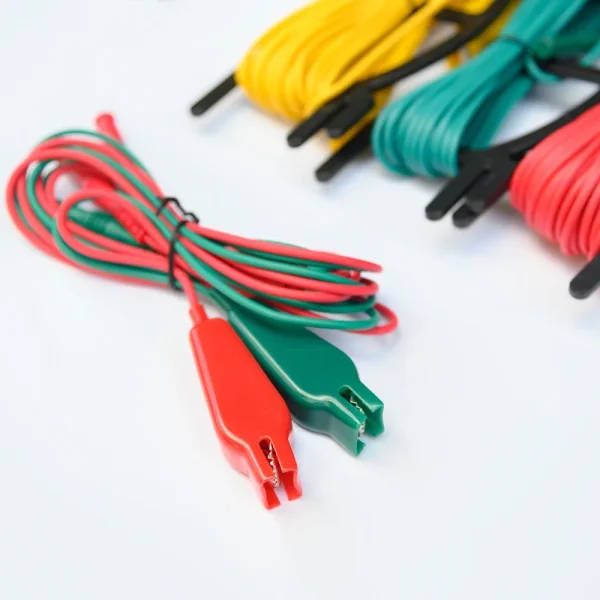

- 3 x 1.5m Wire
- 1 x Instruction Manual
- 1 x Tool Bag
