Product Overview

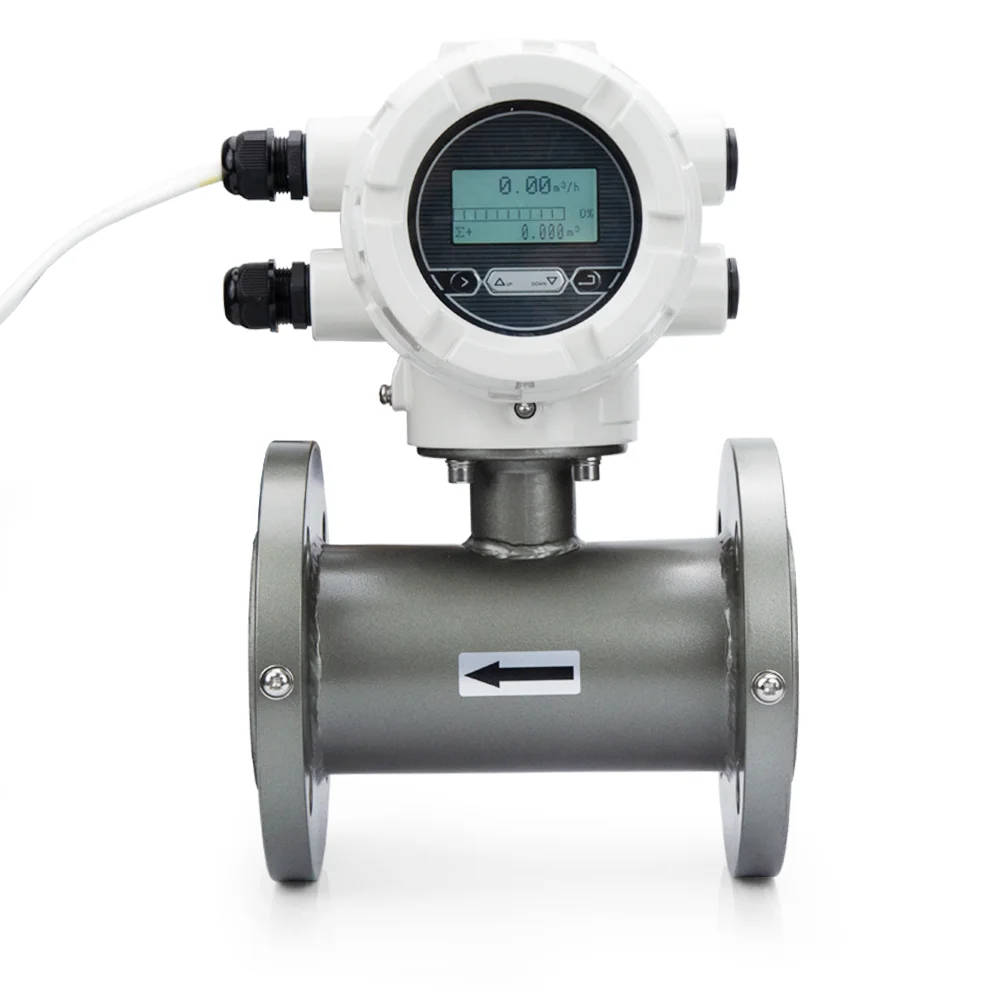

The electromagnetic flow meter is designed for measuring conductive liquids with a conductivity of more than 30μs/cm. It consists of a sensor and converter, providing accurate measurement, display, and output signals.
Key Features
- Excellent measurement repeatability and linearity
- Good reliability and anti-interference performance
- Good pressure resistance sealing ability
- Low pressure loss measurement tube
- Highly intelligent and maintenance-free
Technical Parameters
| Nominal Diameter | 15-2000mm |
| Velocity Range | 0-10m/s |
| Accuracy | ±0.5%R, ±1%R (<DN20) |
| Medium Conductivity | ≥5uS/cm, Actual conductivity≥30uS/cm |
Working Principle
The electromagnetic flow meter operates based on Faraday’s law of electromagnetic induction, detecting the induced electromotive force generated by the conductive liquid flowing flow meter.
