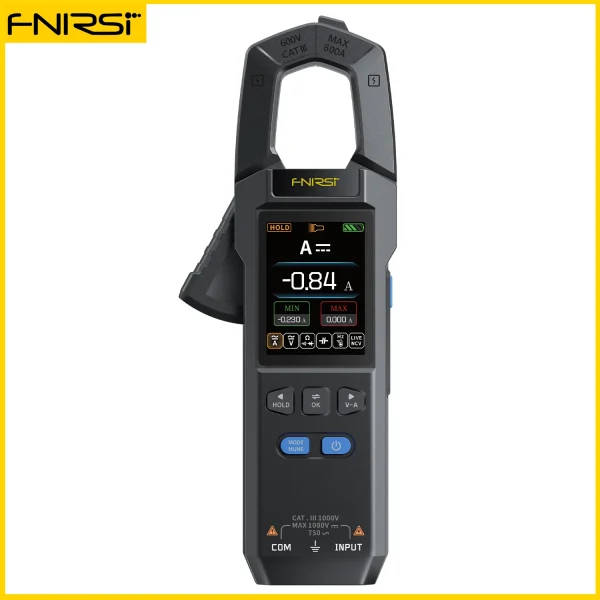

FNIRSI DMC-100 Clamp Meter Overview
The FNIRSI DMC-100 is a high-precision clamp meter designed for various applications, including engineering maintenance, laboratory research, and electrical diagnostics at home. It features a 2.0-inch 240*320 full-color TFT screen and an intuitive UI for clear data presentation.
Measurement Parameters
- DC Voltage: 9.999V, 99.99V, 999.9V
- AC Voltage: 9.999V, 99.99V, 750.0V
- DC/AC Current: 99.99A, 600.0A
- Resistance: 999.9Ω, 9.999KΩ, 99.99KΩ, 999.9KΩ, 9.999MΩ, 99.99MΩ
- Capacitance: 9.999nF, 99.99nF, 999.9nF, 9.999μF, 99.99μF, 999.9μF, 9.999mF, 99.99mF
- Frequency: 9.999Hz, 99.99Hz, 999.99Hz, 9.999KHz, 99.99KHz, 999.9KHz, 9.999MHz
- Temperature: -55°C to 1300°C / -67°F to 2372°F
Key Features
- NCV Non-Contact Voltage Detection for enhanced safety
- Zero Fire Wire Check
- Diode Measurement
- Continuity Test
- Three Measurement Modes: General Measurement, Waveform Display, and Power Measurement
- Data Storage and Viewing: Up to 30 groups of data
- Brightness Adjustment: 10-speed adjustment for optimal viewing
- Language Options: Chinese and English
Additional Functions
- Torch Function for improved visibility
- Data Zeroing for accurate measurements
- Maximum/Minimum Value recording
- Waveform Display for detailed analysis
- Power Calculation for energy efficiency assessments
- Data Hold for capturing readings
