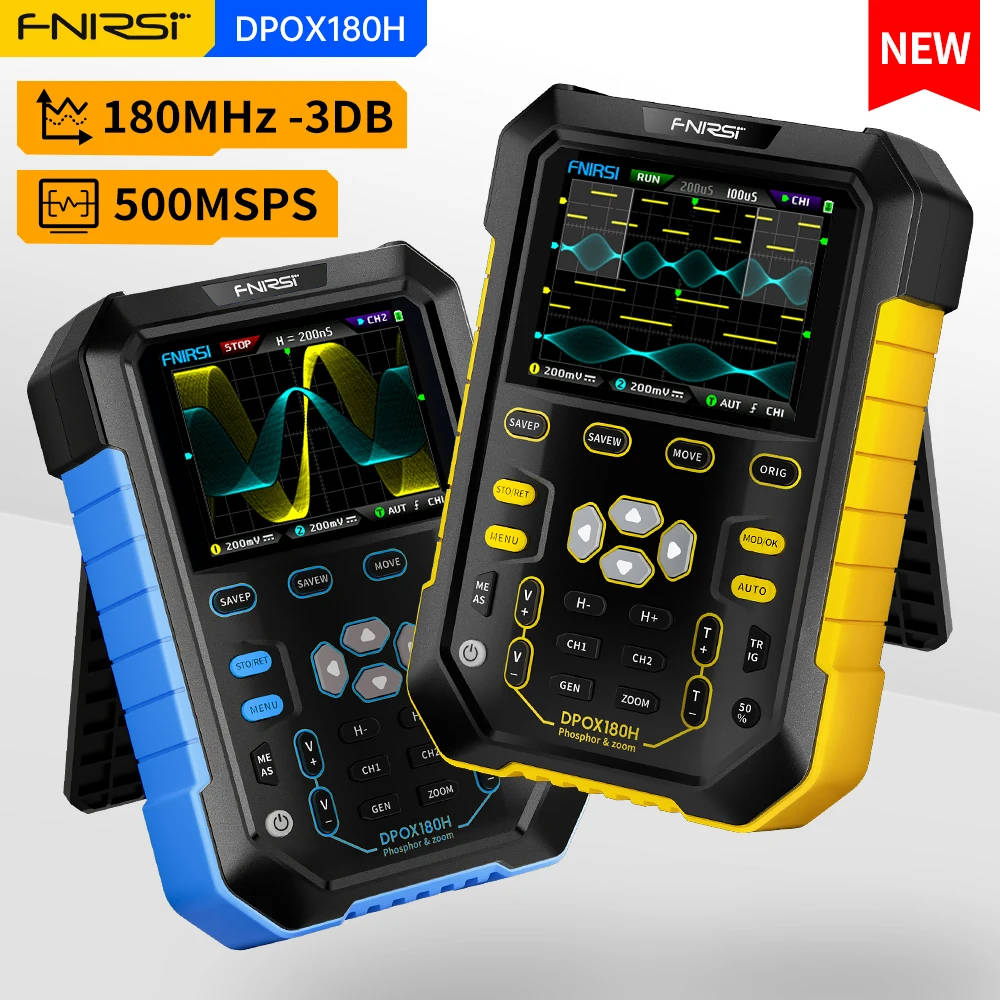

FNIRSI DPOX180H Handheld Digital Oscilloscope DPOX180H

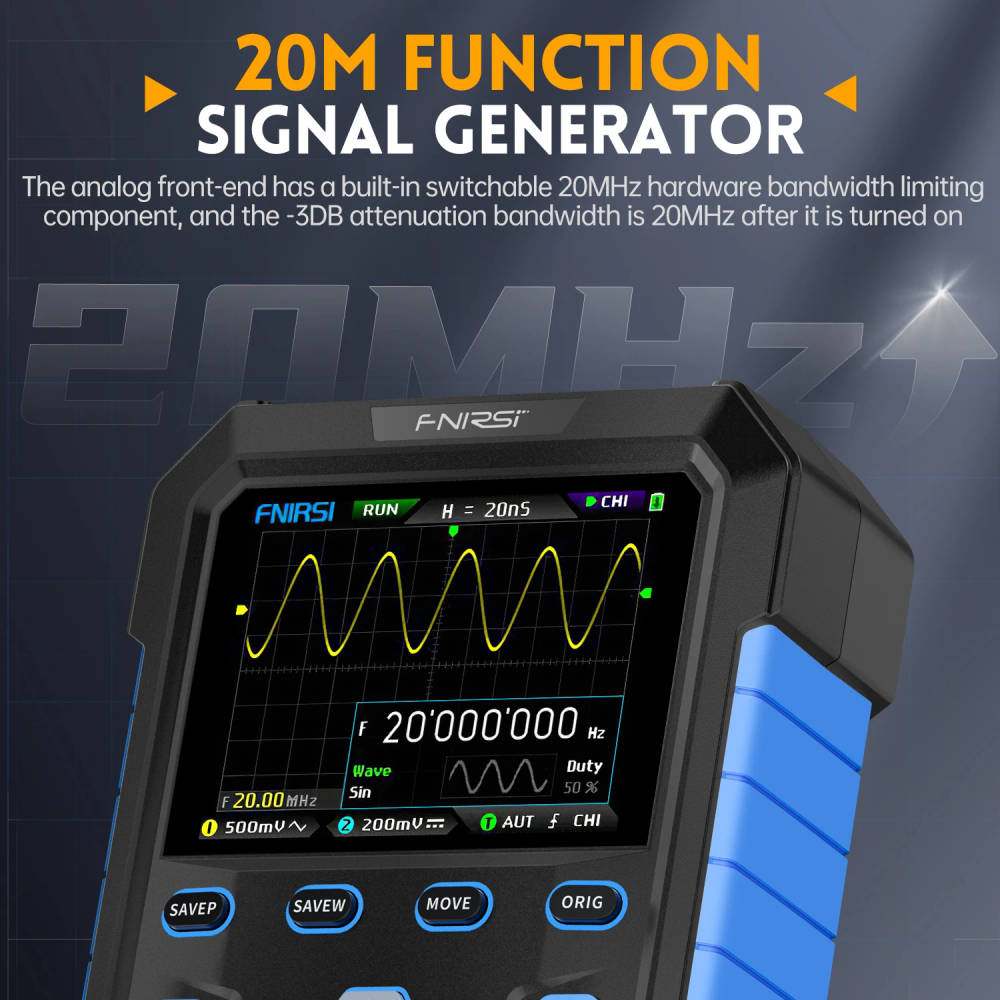

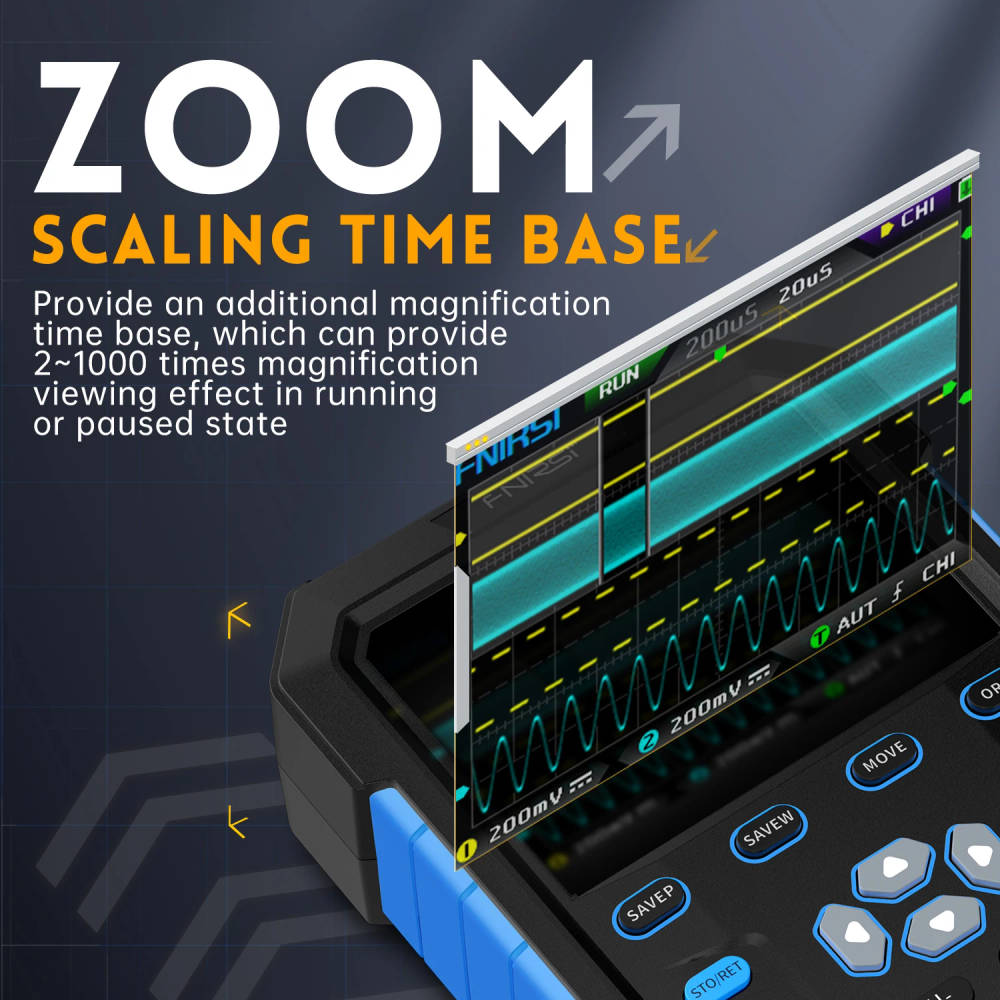

The FNIRSI DPOX180H is a cost-effective handheld dual-channel digital oscilloscope with an integrated signal generator, essentially a digital signal generator, and a function generator, combining the capabilities of a waveform generator and an oscilloscope generator. It features a real-time sampling rate of 500MSPS and an analog bandwidth of 180MHz. The device is equipped with a high-contrast 2.8-inch IPS full-vision LCD screen, utilising digital phosphor technology for superior waveform display. With a waveform refresh rate of up to 50000wfm/s, it efficiently displays low-probability abnormal signals. The oscilloscope includes a ZOOM time base for detailed analysis of digital protocol signals and a vertical sensitivity starting at 5mV, making it ideal for measuring small signals. It incorporates advanced noise filtering and trigger suppression technologies, supporting three trigger modes: automatic, single, and normal. The DDS digital generator offers 14 standard function waveforms, with sine wave frequencies up to 20MHz, acting as a versatile function generator and waveform generator. Additional features include high-voltage protection, USB data export, and a 5V2A fast-charging capability, ensuring efficient and reliable performance for various signal analysis needs, making it an excellent signal generator and oscilloscope or function generator and oscilloscope combo, all in one FNIRSI oscilloscope.

• Key features include a built-in signal generator, high sampling rate, and wide bandwidth.
• Ideal for applications requiring a digital oscilloscope, digital signal generator, or an oscilloscope generator.
