Introduction

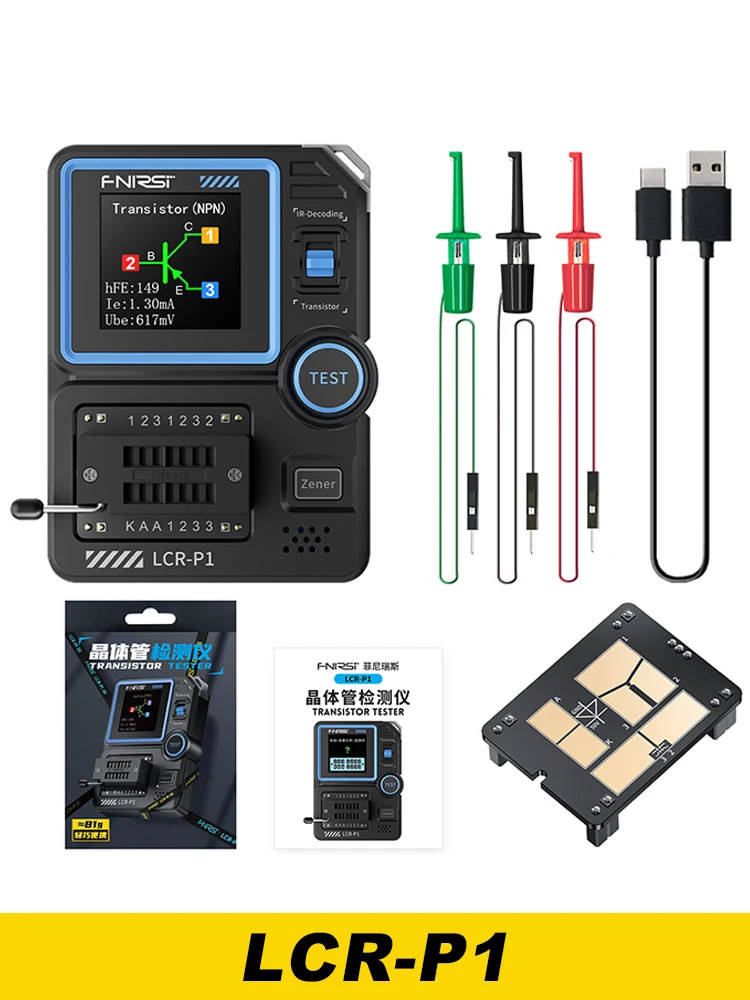

The FNIRSI LCR-P1 Transistor Tester is a high-precision, multifunctional electronic testing device designed for electronic engineers, technicians, and enthusiasts. It detects and analyzes the performance and characteristics of various semiconductor components.
Key Features
- Intelligent anti-burning design with automatic discharge of uncharged capacitors and user-friendly protection mechanism.
- Data export capability via USB connection to a computer for further in-depth analysis.
- Alternate measuring modes with replaceable test boards for diverse test needs.
- Intelligent recognition of component parameters with one-button quick identification.
- Independent measurement channel for Zener diodes with precise results.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Model | LCR-P1 |
| Screen Display | 1.44 Inch Color Screen |
| Charging Specification | USB Type-C, 5V/1A |
| Power Supply | 300mAh lithium battery |
| Operating Temperature | 0~40℃ |
| Resistance | 0.01Ω-50MΩ |
| Capacitance | 25pF~100mF |
| Inductance | 10uH-1000uH |
| Transistor | 10＜β＜600 |
| Diode | Forward voltage drop＜4.5V |
