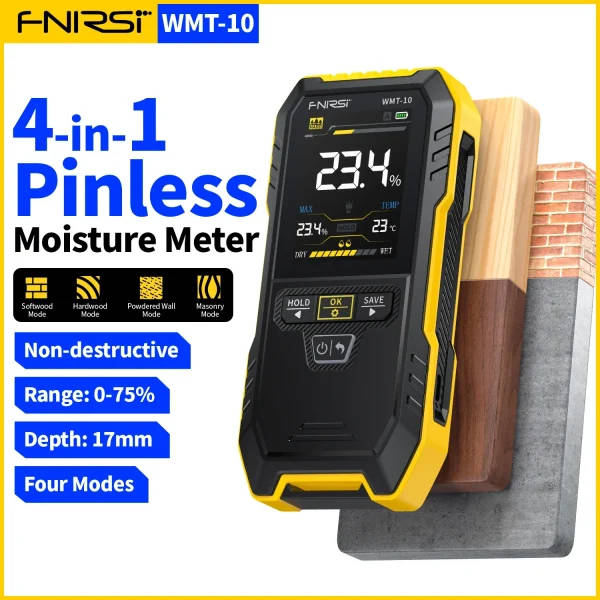

FNIRSI WMT-10 Inductive Wood Moisture Meter
The FNIRSI WMT-10 is a high-precision, non-contact moisture meter designed for the wood processing industry and wood users. It features a 2.4-inch high-definition color screen and supports four distinct measurement modes: hardwood, softwood, plaster wall, and brick wall.
Key Features
- High-Precision Measurements: 0.1% resolution, up to 17mm measurement depth
- Wide Measurement Range: 0-75% for softwood and hardwood, 0-25% for plaster walls, and 0-43% for brick walls
- User-Friendly Display: 2.4-inch color screen for clear and vivid display
- Advanced Alarm System: Sound and color alarms for moisture level alerts
- Data Storage & Viewing: Save and review up to 30 sets of measurement data
- Durable Design: 1000mAh lithium battery, built-in flashlight, and temperature display
- Convenient Operation: Auto power-off, brightness and sound adjustment, and firmware upgrade support
Technical Specifications
| Measurement Type | Non-destructive/Pinless/Inductive/Non-contact Testing |
|---|---|
| Screen Display | 2.4 Inch Color Screen |
| Display Resolution | 0.1% |
| Max Measuring Depth | 17mm |
| Sensor Size | 40.5×40.5mm |
| Operating Temperature | 0~40℃ |
| Measurement Range | Plaster Wall: 0~25%; Brick Wall: 0~43%; Softwood: 0~75%; Hardwood: 0~75% |
| Max Measurement Range | 0~75% |
| Measurement Error | ±1.5% |
| Language | Chinese, English |
| Humidity Alarm | Sound Alarm/Color Alarm |
| Auto Power Off | 5/10/15 minutes |
| Data Saving and Viewing | Support, save and view up to 30 sets of data |
| Power Supply | 1000mAh lithium battery |
| Flashlight Function | Supported |
| Temperature Display | Supported |
| Brightness and Sound Adjustment | Supported |
| Firmware Upgrade | Supported |
