Advanced Proton Magnetometer for Mineral Exploration

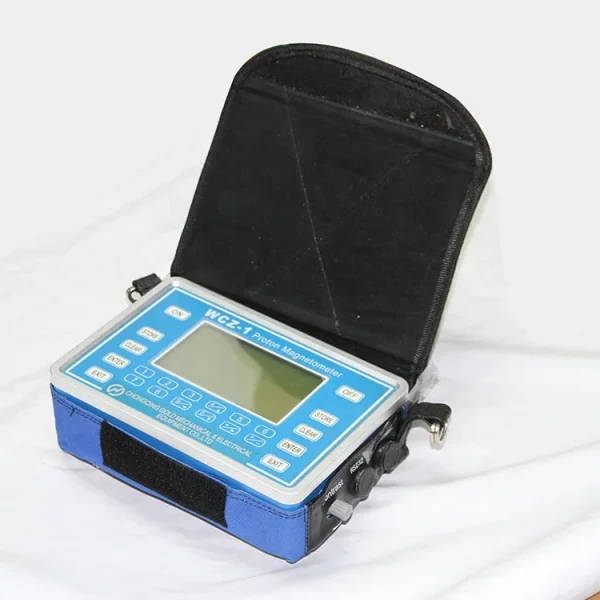

The WCZ-1 Handheld Proton Magnetometer is designed for copper and iron exploration, offering high precision and flexibility in measuring total magnetic field and gradient.
Key Features
- Total magnetic field and gradient survey (horizontal and vertical gradient)
- High resolution (0.1nT) and accuracy (±1nT)
- Large storage capacity (130,000 data points) with power-off protection
- English interface and automatic magnetic curve display
- Backlight LCD for night survey and user-friendly keyboard design
- Portable and easy to operate, with RS-232C standard serial port
Technical Specifications
| Measuring Range | 20,000 nT ~ 100,000 nT |
| Accuracy | ±1 nT |
| Resolution | 0.1 nT |
| Gradient Permitted | ≤5,000 nT/m |
| Data Stored | 130,000, with power-off protection |
| LCD Display | 240×128 |
| Keyboard Input | 22 keys |
| Port | RS-232C standard serial port |
| Power Source | Rechargeable battery 12V/2.3Ah, external power supply optional (12V) |
| Console Dimension | 230mm × 155mm × 65mm |
| Weight | 2.5 Kg (including battery) |
| Sensor Size | φ75mm × 155mm |
| Sensor Weight | 0.8 Kg |
| Working Temperature | -10 ℃ ~ +50 ℃ |
