Product Overview

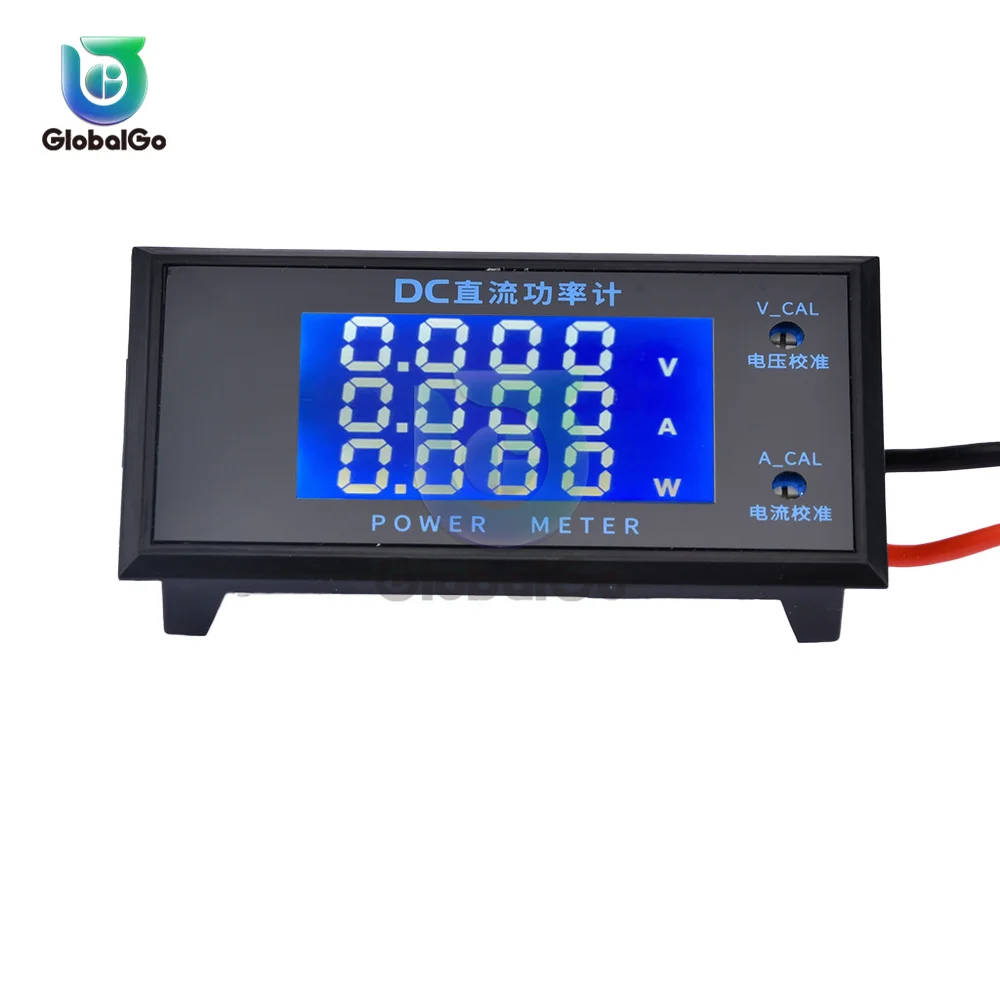

This high-precision DC power meter is designed for accurate measurement of voltage, current, and power in various laboratory and educational settings. Its clear LCD display ensures easy reading in different environments.
Key Features
- Measures voltage, current, and power with high accuracy
- Voltage detection range: 0-500V DC
- Current detection range: 0-10A
- Power detection range: 0-5000W
- Calibration capability for voltage and current
- Simultaneous display of voltage, current, and power
Technical Specifications
| Parameter | Value |
|---|---|
| Voltage detection range | DC 0~500V |
| Current detection range | 0~10A |
| Power detection range | 0~5000W |
| Power supply voltage | 8~12V |
| Display mode | LCD 3-row 4-bit display |
| Shell size | 80mm * 43mm * 15mm |
| Working current | <15mA |
| Voltage error range | ± 0.5% (adjustable calibration) |
| Current error range | ± 0.5% (adjustable calibration) |
| Power error range | ± 0.5% |
Safety Precautions
- Ensure all wiring changes are made with the power supply disconnected to prevent electrical shock
- Avoid using the power meter in hazardous environments, such as water, high humidity, high temperatures, or corrosive conditions
- Do not exceed the maximum rated load to prevent damage or safety risks
- Verify that the power supply voltage matches the voltage marked on the power meter and is stable
Package Included
1 x DC 0-500V 0-5000W LCD Digital Voltmeter Ammeter Power Meter
