Key Features
- Highly accurate liquid measurement with robust pressure resistance up to 0.8MPa, ensuring reliable performance in demanding laboratory environments.
- Crafted from durable, corrosion-resistant POM material, capable of withstanding temperatures up to 80°C.
- Ideal for laboratory professionals requiring precise small-scale liquid measurements, including compounding, reagent mixing, and scientific research.
- Easy installation in either horizontal or vertical orientations, with a filter required at the inlet to prevent debris ingress.
- Supports a range of applications, from laboratory water purification to general scientific research.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | POM |
| Pressure Resistance | ≤0.8MPa |
| Operating Voltage | DC3.5-24V |
| Operating Current | 15mA (DC5V) |
| Insulation Resistance | >100MΩ |
| Load Capacity | ≤10mA (DC5V) |
| Operating Temperature Range | 0-80°C |
| Output Signal Levels | High: >DC4.5V (Input DC5V), Low: <DC0.5V (Input DC5V) |
| Measurement Range | 0.3-4L/Min ±3%, 0.05-1L/Min ±3% |
Package Contents

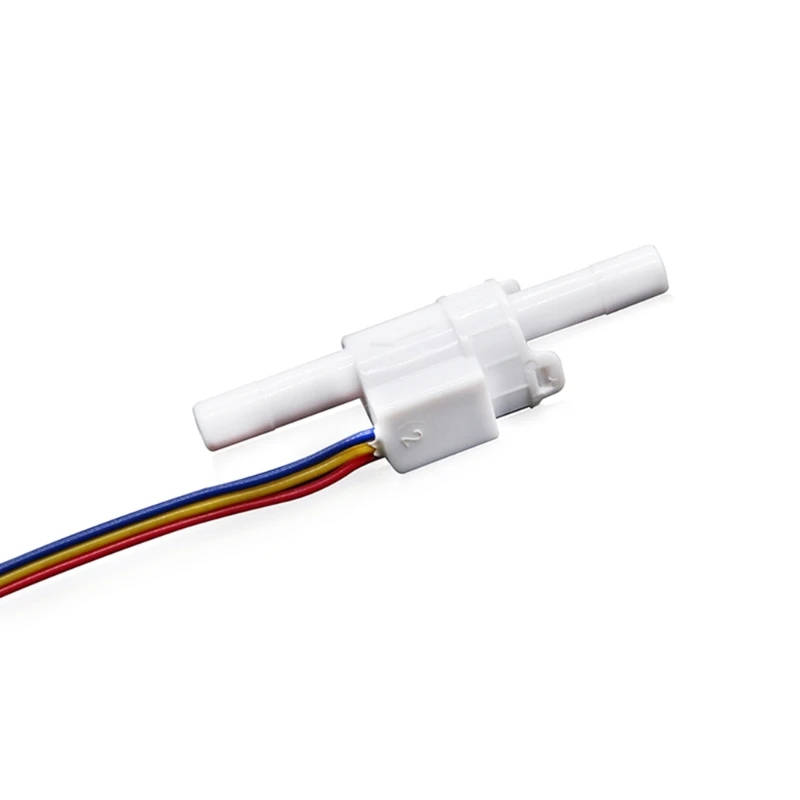

- 1 x High-Precision Flow Meter Counter
