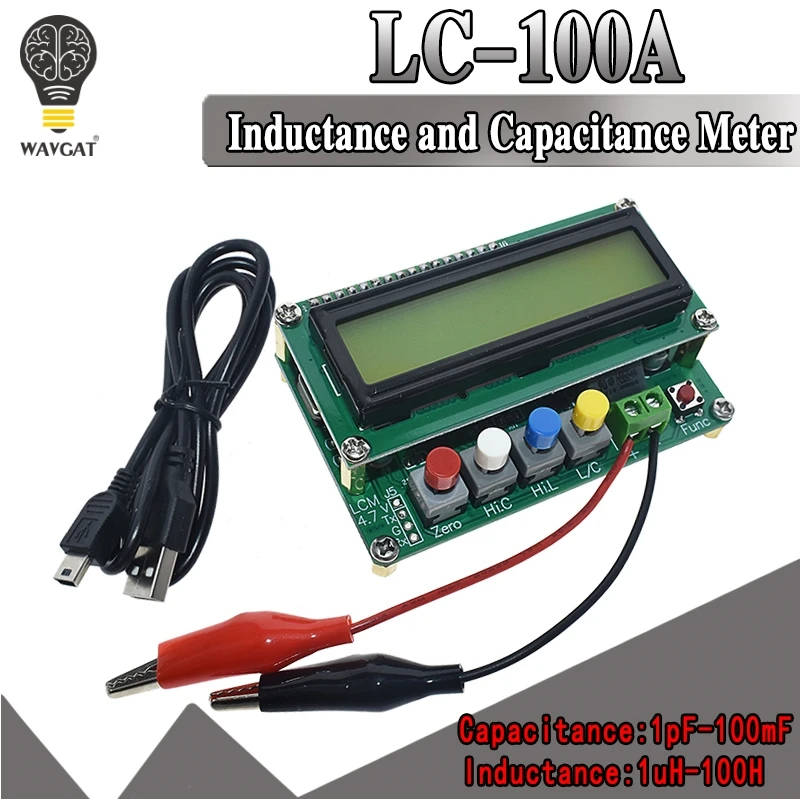

LC-100A Digital LCD Capacitance and Inductance Meter Tester

LC-100A Digital LCD Capacitance and Inductance Meter Tester

This high-precision meter is designed for laboratory and educational settings, allowing users to accurately measure capacitance and inductance.

Measurement Ranges

• Capacitance (C range): 0.01pF – 10uF
• Inductance (L range): 0.001uH – 100mH
• High Inductance (HL range): 0.001mH – 100H
• High Capacitance (HC range): 1uF – 100mF

Key Features

• Automatic ranging for ease of use
• Digital LCD display for clear readings
• Includes test clip for convenient connections

Operating Instructions

To ensure accurate measurements, follow these guidelines:

1. Reset to ‘0’ before testing capacitance or inductance.
2. Press and hold for 2-3 seconds during reset until ‘DATA SAVED’ is displayed.
3. Avoid resetting to ‘0’ while components are being measured.
4. Allow sufficient time for measurements, especially for large capacitances.
5. Ensure capacitors are fully discharged before measurement to prevent damage.

Safety Precautions

To prevent damage to the meter or injury, always discharge capacitors before measurement and avoid measuring components while they are connected to a power source.
