LCR-P1 Transistor Tester and Component Analyser
The LCR-P1 is a high-precision, multi-functional electronic testing equipment designed for electronic engineers, technicians, and enthusiasts. It accurately detects and analyses transistors, diodes, triodes, and other components using a 1.44-inch colour screen, ensuring safe and efficient testing.
Key Features
- Intelligent anti-burn design with automatic capacitor discharge and a humanised protection mechanism to prevent component damage
- Data export to computer via USB for further analysis and record-keeping
- Multiple measurement modes with replaceable test boards to cater to diverse testing needs
- Intelligent component identification with simple plug-in and pull-out operation for ease of use
- Independent measurement of zener diodes with accurate and reliable results
Specifications
| Parameter | Range |
|---|---|
| Resistance | 0.01Ω – 50MΩ |
| Capacitance | 25pF – 100mF |
| Inductance | 10uH – 1000uH |
| Transistor | 10 < β < 600 |
| Diode | Forward voltage drop up to 4.5V |
| Zener Diode | 0.01 – 32V |

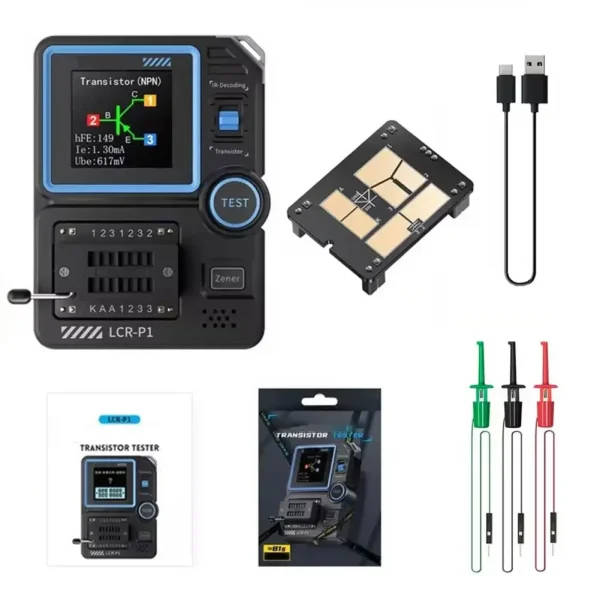

Package Includes
- LCR-P1 host
- Interchangeable test boards
- USB data cable
- User Manual
- Packaging box
- Test hook x3
