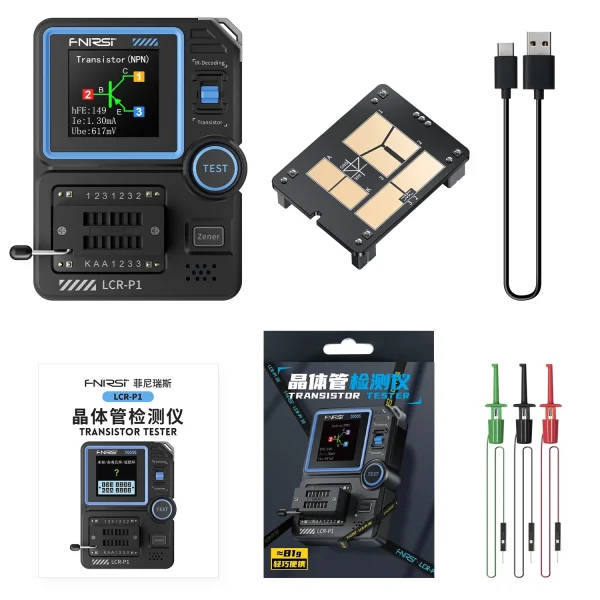

LCR-P1 Multifunctional Transistor Tester
A high-precision electronic testing device designed for electronic engineers, technicians, and enthusiasts to detect and analyse the performance and characteristics of semiconductor components, ensuring lab safety and accuracy.
Key Features:
- Intelligent anti-burning design with automatic discharge for uncharged capacitors and a user-friendly protection mechanism to prevent component damage.
- Data export capability via USB connection to a computer for further in-depth analysis and record-keeping.
- Innovative replaceable test boards to cater to diverse testing needs and enhance versatility.
- One-button quick identification of component parameters for efficient testing and reduced downtime.
- Independent measurement channel for Zener diodes, measuring 0.01-32V, ensuring accurate voltage regulation testing.
Technical Specifications:
| Parameter | Range |
|---|---|
| Resistance | 0.01Ω – 50MΩ |
| Capacitance | 25pF – 100mF |
| Inductance | 10μH – 1000mH |
| Transistor | 10 < β < 600 |
| Diode | Forward voltage drop < 4.5V |
