Advanced Component Testing Made Easy

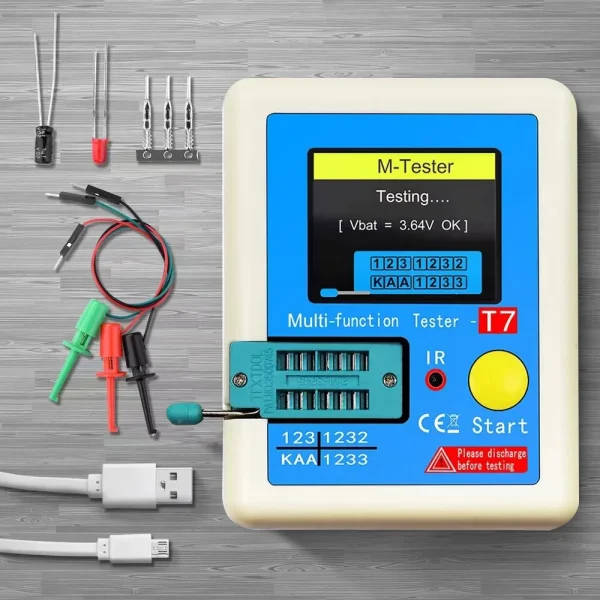

The LCR-T7 Transistor Tester is a highly versatile and user-friendly tool designed for testing a wide range of electronic components, including NPN and PNP transistors, capacitors, resistors, diodes, triodes, MOSFETs, IGBTs, JFETs, triacs, and batteries.
Key Features
- Automatic detection and shutdown with one-button operation
- 3.5-inch TFT colour display for clear results
- Tests a wide range of components, including zener diodes and infrared remote controls
- Self-calibration function for accurate measurements
- Rechargeable 3.7V lithium battery with DC 5V power supply option
Technical Specifications
| Specification | Range |
|---|---|
| Diode Range | Forward voltage <4.5V |
| Zener Diode Test Area | 0.01-20V |
| Capacitance Test Range | 25pF-100mF |
| Resistor Test Range | 0.01-50MΩ |
| Inductor Test Range | 0.01mH-20H |
Safety Precautions
Before testing, ensure electronic components are discharged to protect the detector. Charge the device when the battery voltage is below 3V.
