Product Overview
This advanced transistor tester is designed for educational and laboratory settings, offering a multifaceted tool for identifying and characterising a wide range of electronic components. It accurately detects NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, and thyristors, making it an indispensable asset for curriculum-aligned learning and research.
Key Features
- Automatic detection and identification of various electronic components
- Detection of Zener diodes with integrated self-calibration functionality for enhanced accuracy
- Infrared waveform detection capability
- Simplified one-key operation with automatic shutdown to conserve power
- High-resolution display on a 1.8″ TFT LCD screen for clear results
Technical Specifications
| Power Mode | Rechargeable Lithium Battery for portable and safe operation |
| Display | 3.5*3cm TFT screen providing detailed test results |
| Diode Range | < 4.5V, suitable for a variety of diode testing applications |
| Zener Diode Range | 0.01-20V, allowing for comprehensive Zener diode characterisation |
| Capacitance Range | 25pF – 100mF, covering a broad spectrum of capacitor values |
| Resistance Range | 0.01 – 50MΩ, enabling the measurement of a wide range of resistances |
Package Contents

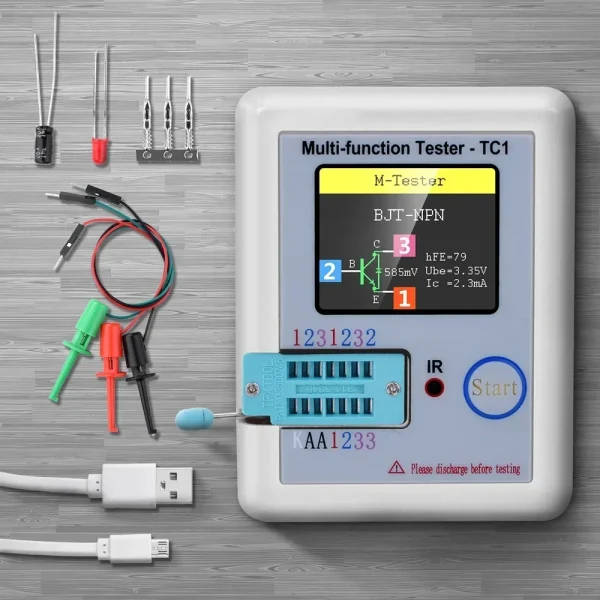

- 1 x LCR TC1 Multifunctional Transistor Tester
- 1 x Set of electronic components for testing and demonstration
- 1 x Cable for connectivity
- 3 x Test hooks for secure component connection
Safety Guidelines
To ensure safe and effective use, it is crucial to discharge capacitors before testing, avoid testing components online with electricity present, and refrain from testing live circuit boards. The device should be recharged when the battery voltage drops below 3V to prevent data loss and ensure continuous operation.
