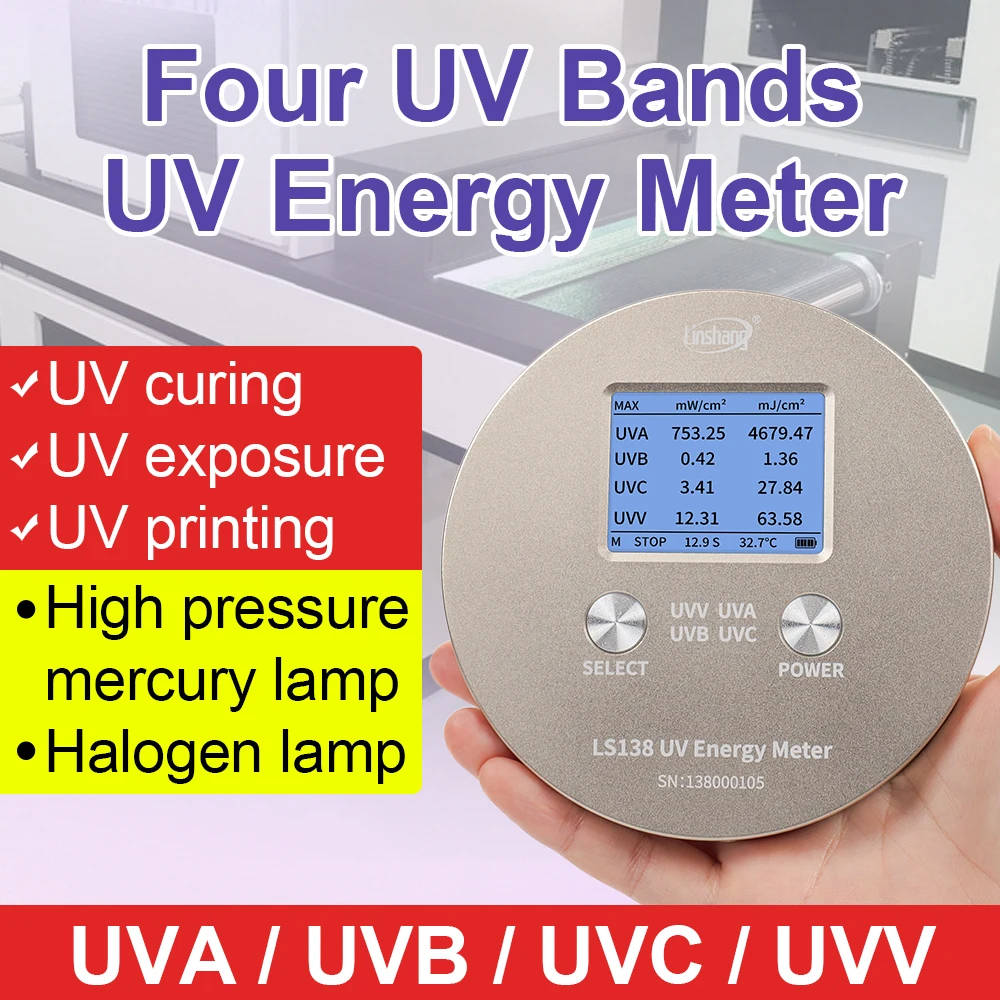

Linshang LS138 UV Intensity Meter
The Linshang LS138 is a four-channel UV radiometer designed to measure the energy and intensity of UVA, UVB, UVC, and UVV wavelengths simultaneously. It is perfect for UV intensity testing in various equipment such as curing machines, dryers, coating machines, exposure units, and printing systems.
Key Features
- Measures UVA, UVB, UVC, and UVV wavelengths simultaneously
- Real-time temperature and test duration monitoring
- Power curve display for easy interpretation of energy changes
- PC software for easy report generation and printing
- Long-term heat-resistant up to 100°C
Specifications
| Spectral Range | UVC: 230nm-280nm, UVB: 280nm-315nm, UVA: 315nm-400nm, UVV: 395nm-445nm |
| Power Measuring Range | 0 – 2000 mW/cm² |
| Power Resolution | 0.01 mW/cm² |
| Energy Measuring Range | 0 – 999999 mJ/cm² |
| Measuring Accuracy | ±0.5mW/cm² (H=5mW/cm²) |
Applications
The LS138 UV radiometer is widely used in industries such as electronic component manufacturing, UV flatbed printing, paint and coating, and screen printing.
