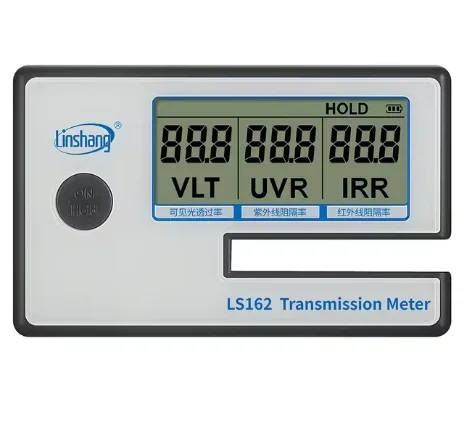

Linshang LS162 Solar Tester Meter provides high precision testing for solar film, filmed glass, and window tint. The test slot accommodates samples up to 8mm thick. It features a compact, portable design with ultra-low power consumption. The meter measures UV rejection, IR rejection, and visible light transmittance. Operation is simple with rapid measurement display. It is suitable for various applications, including production, QA, and inspection.
Key Features of the Linshang LS162 Solar Tester Meter
Measurement Capabilities
The meter accurately measures UV, IR, and visible light transmission. It has a resolution of 0.1% and an accuracy of ±2% for visible light transmittance.
Technical Specifications
Performance Specifications
| Specification | Value |
|---|---|
| VL Peak Wavelength | 550nm |
| UV Peak Wavelength | 365nm |
| IR Peak Wavelength | 950nm |
| Resolution | 0.1% |
| Accuracy | ±2% |
Physical Specifications
| Specification | Value |
|---|---|
| Size | 120mm x 75mm x 25mm (L x W x H) |
| Weight | 165g |
| Color | ROYAL BLUE, CORAL RED |
What Is Included
Standard Package Contents
The package includes 1 x Transmission Meter.
